纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-074[03]) - PANEL ASSY, INSTRUMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
910 次

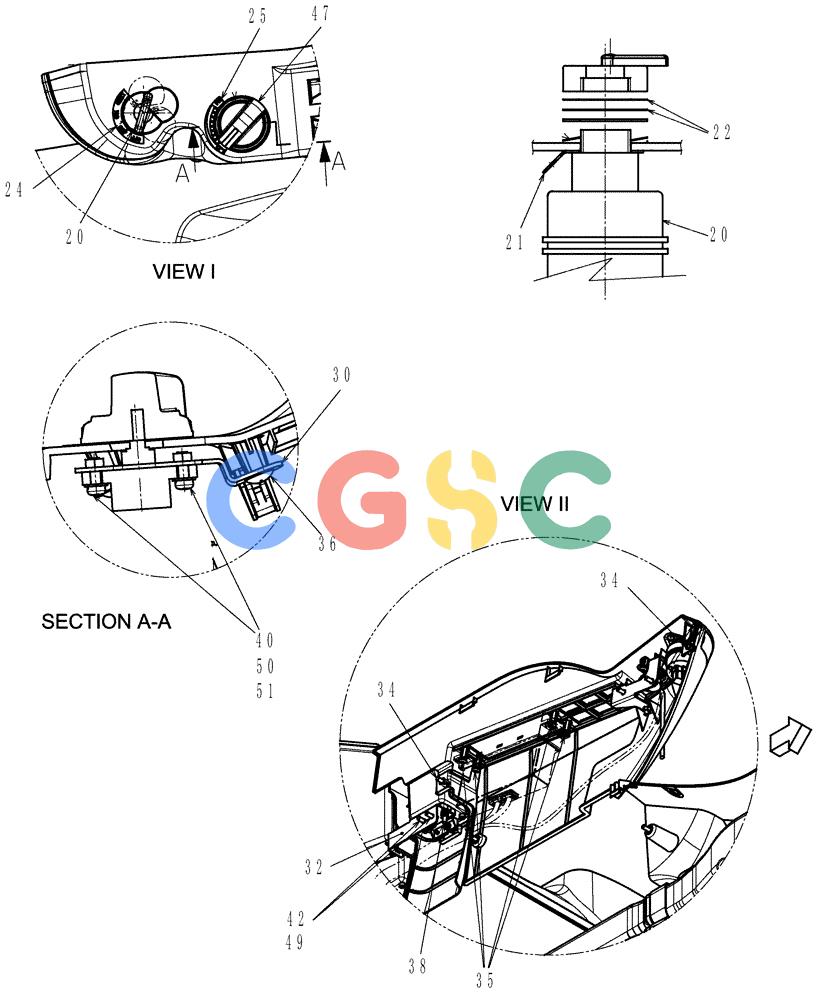

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 20. | YN50S00026F1 | [1] | IGNITION SWITCH | KOB |
| 21. | YN01E01021P1 | [1] | TERMINAL | SM |
| 22. | YN17M01345P1 | [2] | WASHER | SMID 20.5 x OD 30 x Th 3.0mm |
| 24. | YN17M01463P1 | [1] | DECAL | SM |
| 25. | YN17M01462P1 | [1] | DECAL | SM |
| 30. | YN17M01445P1 | [1] | BRACKET | SM |
| 32. | YN17M01447P1 | [1] | BRACKET | SM Superseded by part number: YN17M01447P2 |
| 34. | YN17M01162D1 | [2] | BOLT | SM |
| 35. | YN17M01466P1 | [4] | SCREW | SM |
| 36. | YN17M01467P1 | [2] | SCREW | SM |
| 38. | ZM66C06020 | [2] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| 40. | ZM41C04012 | [2] | BOLT | KOBM04x0.7x12mm (Incls. Washer & Lockwasher) |
| 42. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| 47. | LQ52S00025P1 | [1] | POTENTIOMETER | SM |
| 49. | NSS | [1] | NOT SERVICED SEPARATELY | CONSee Ref 42 |
