纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-074[02]) - PANEL ASSY, INSTRUMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
652 次

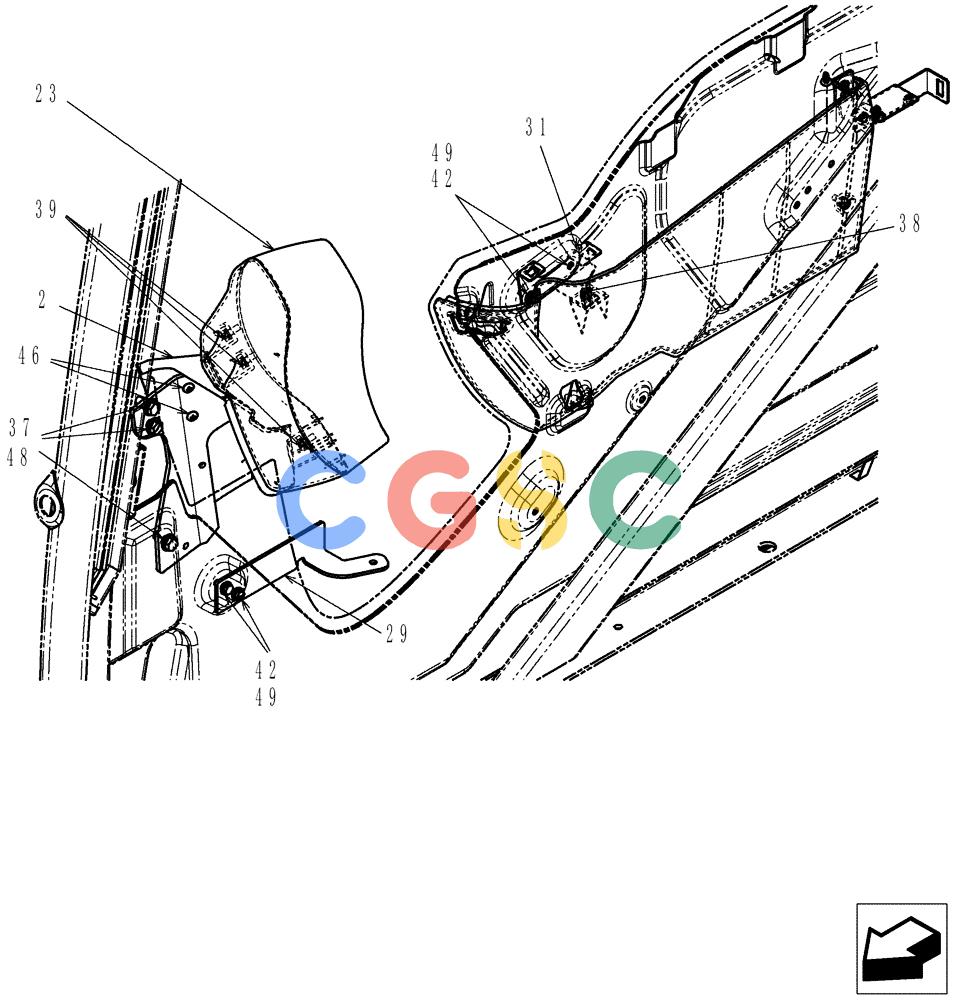

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YN17M01433F1 | [1] | COVER | SM |
| 23. | YN59S00021F3 | [1] | CONTROL MONITOR | SMAssy, See Fig 01-075 [00] |
| 29. | YN17M01444P1 | [1] | BRACKET | SM Superseded by part number: YN17M01444P2 |
| 31. | YN17M01446P1 | [1] | BRACKET | SM Superseded by part number: YN17M01446P2 |
| 37. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 38. | ZM66C06020 | [1] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| 39. | ZM66C06016 | [3] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 42. | ZM73C06016 | [4] | BOLT,M6x16mm - Course Thread | KOBM06x1.0x16mm (Incls. Washer) |
| 46. | YN17M01449P1 | [2] | SCREW | SM |
| 48. | NSS | [1] | NOT SERVICED SEPARATELY | CONSee Ref 37 |
