纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-079[00]) - BATTERY ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
207 次

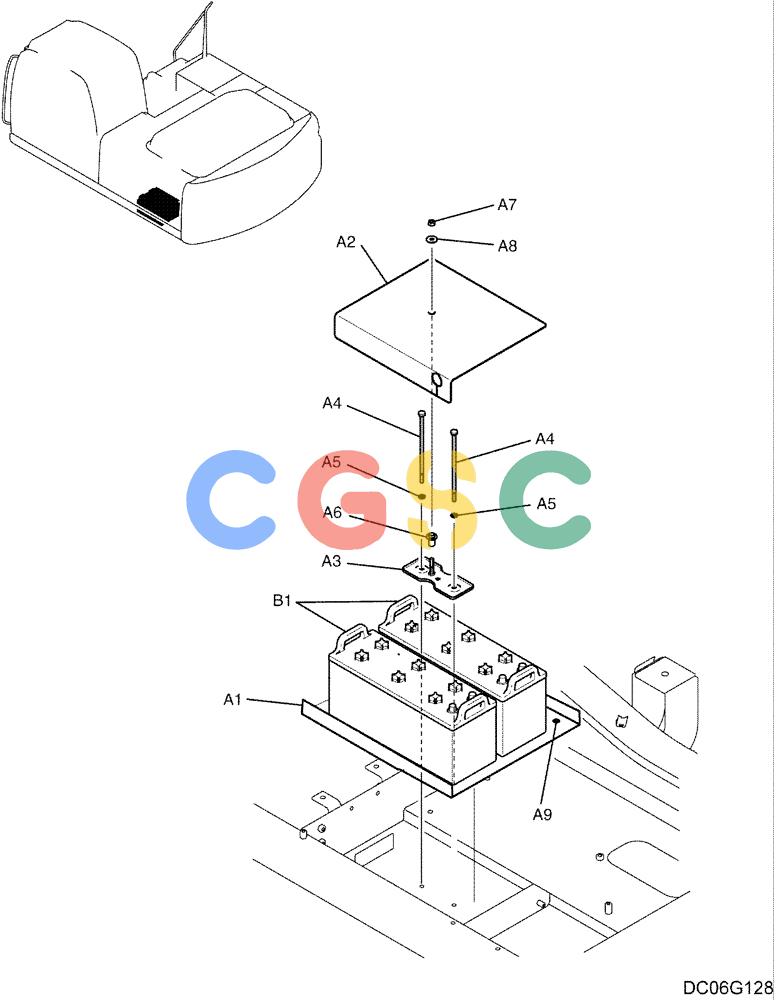

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YN72E01035P1 | [1] | PLATE | KOB |
| A2. | YN72E01036P1 | [1] | COVER | KOB |
| A3. | YN72E01055P1 | [1] | PLATE | KOB |
| A4. | R20T0084D10 | [2] | CAPSCREW | KOBSCREW M10x1.50x250mm |
| A5. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A6. | NSS | [1] | NOT SERVICED SEPARATELY | CONNo Longer Used |
| A7. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| A8. | 2418T12346 | [1] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| A9. | ZM73C12025 | [4] | BOLT,M12x25mm - Course Thread | KOBM12x1.75x25mm (Incls. Washer) |
| B1. | PL | [2] | PROCURE LOCALLY | BASPN 2411U22 - Battery (4D-2), Purchase Locally |
