纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-080[04]) - CONDITIONING, AIR INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
669 次

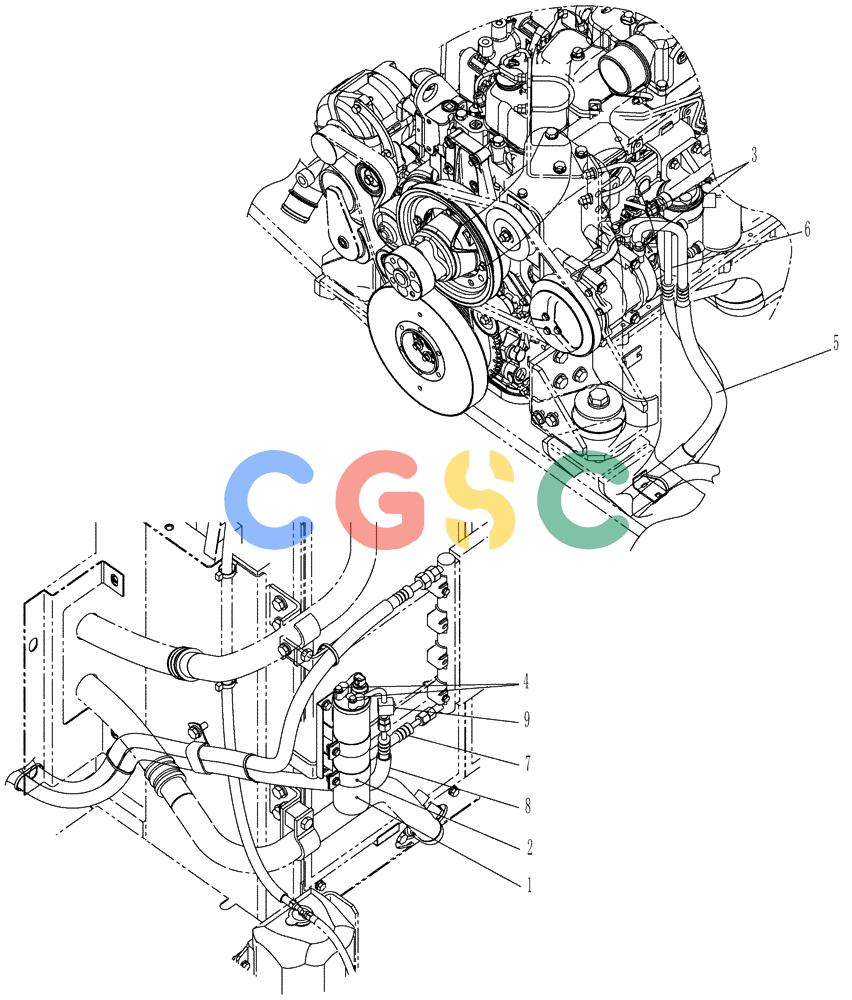

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN54S00041P1 | [1] | RECEIVER-DRIER | SM Superseded by part number: LQ54S00005P1 |
| 2. | YN20M01469P1 | [1] | BRACKET | KOB |
| 3. | YT96V00001S009 | [2] | SCREW | KOBScrew -- M08x25mm Long |
| 4. | YT96V00001S010 | [2] | CAP | KOBScrew -- M06x25mm Long |
| 5. | YN20M01782F1 | [1] | FLEXIBLE HOSE | SMS - Hose |
| 6. | YN20M01528F1 | [1] | FLEXIBLE HOSE | SMD - Hose, (Incls. O-Ring 2445Z1604D4) |
| 7. | YN20M01547F1 | [1] | FLEXIBLE HOSE | SML - Hose, (Includes O-Rings 2445Z1604D6) |
| 8. | YN20M01760F1 | [1] | FLEXIBLE HOSE | SML - Hose (Dreyer to Expansion Valve) |
| 9. | YN20M01518F1 | [1] | RIGID TUBE | SML - Tube, (Incls. O-Ring 2445Z1604D6) |
