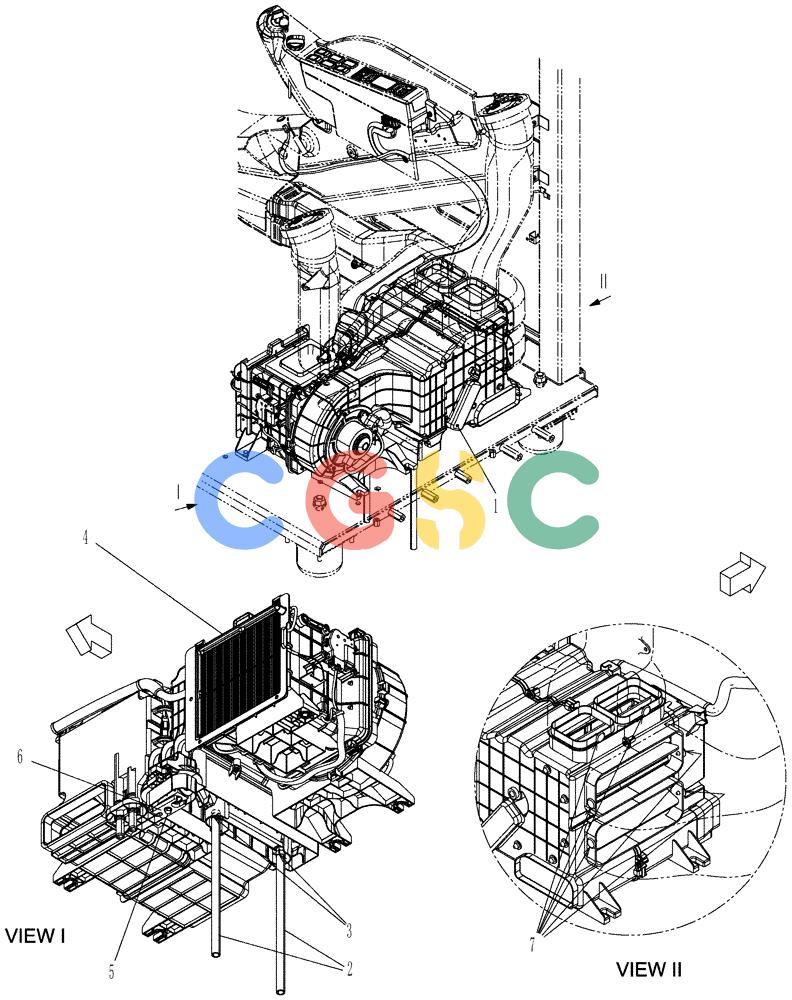

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-080[05]) - CONDITIONING, AIR INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
125 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ20M00059F1 | [1] | AIR CONDITIONER | SMAIR CONDITIONING ASSY SEE 01-080 [06] |
| 2. | LC20M01014D2 | [2] | HOSE,11mm ID x 360mm L | KOBID 11 x OD 15 x 360mm |
| 3. | 24100U1176S5 | [2] | CLAMP | KOB |
| 4. | LQ50V01007P1 | [1] | FILTER | SMA/C (Inner) |
| 5. | YT20M00009S005 | [1] | BOLT | KOBCAP |
| 6. | LQ20M01169P1 | [11] | PLATE | SM |
| 7. | YN20M00016S078 | [6] | CLIP | KOB |
