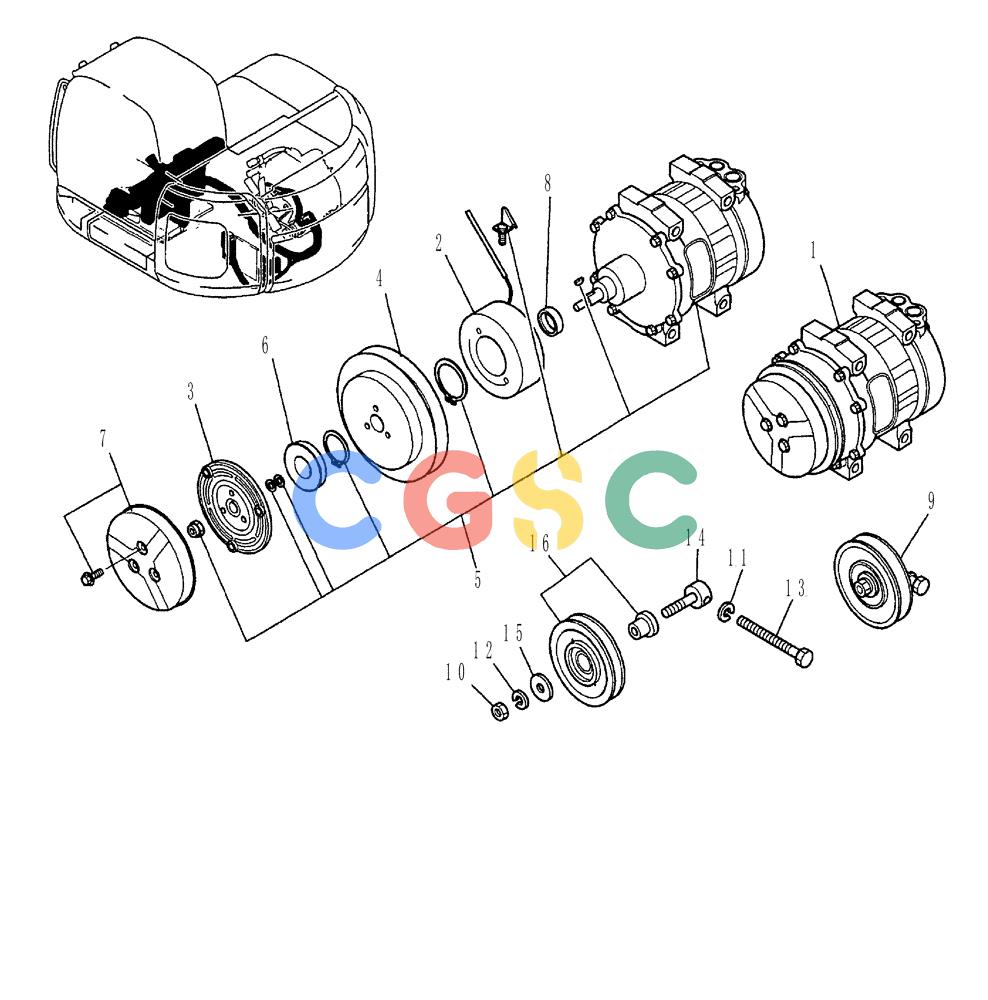

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-080[08]) - COMPRESSOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YX91V00001F1 | [1] | COMPRESSOR,W/ Pulley | KOBAssy - Includes 2-8 (Also See Fig 01-080[02]) |
| . . | YX91V00001F1R | [1] | REMAN-COMPRESSOR,W/ Pulley | KOBSK210-8 HYDRAULIC EXCAVATOR - TIER 3 ROPS (NA) ASN YQ12U4800 |
| . . | YX91V00001F1C | [1] | CORE-COMPRESSOR | KOBReturn Number |
| 2. | LC91V00001S002 | [1] | PLATE | KOB |
| 3. | YN91V01001S002 | [1] | PLATE | KOB |
| 4. | YN91V01001S003 | [1] | ROTOR | KOB |
| 5. | LC91V00001S004 | [1] | ACCESSORIES | KOB |
| 6. | YN91V01001S005 | [1] | COVER | KOB |
| 7. | YN91V01001S006 | [1] | COVER | KOB |
| 8. | YN91V01001S007 | [1] | RING | KOB |
| 9. | YX20M01029F2 | [1] | PULLEY ASSY. | KOBAssy - Includes 10-16 (Also See Fig 01-080[01]) Superseded by part number: YX20M01029F4 |
| 10. | 24100U1176S25 | [1] | NUT | KOBM10 |
| 11. | 24100U1176S27 | [1] | LOCK WASHER | KOBM08 Superseded by part number: 83990583 |
| 12. | 24100U1176S26 | [1] | LOCK WASHER | KOBM10 Superseded by part number: ZW26X10000 |
| 13. | 24100U1176S18 | [1] | BOLT | KOB |
| 14. | YX20M01029S006 | [1] | SHAFT | KOB |
| 15. | 24100U1176S19 | [1] | STOP | KOB |
| 16. | LC20M01060P1 | [1] | PULLEY | KOBAir Compressor Tension Superseded by part number: YX20M01029F4 |
