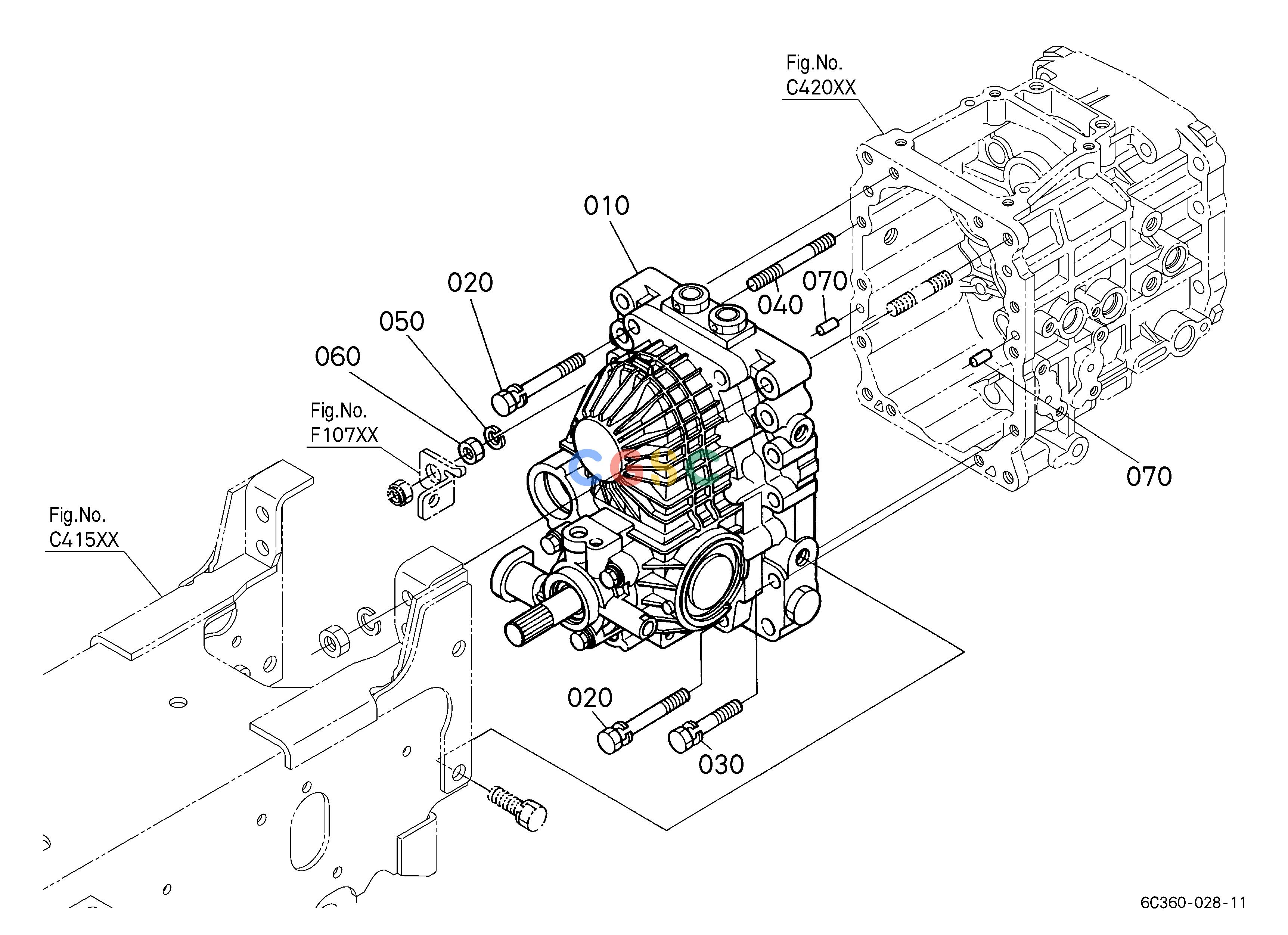

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C15011603 | [1] | ASSY HST | 35.2000(lbs); 16.000 |
| 020. | 0112351075 | [4] | BOLT,SEMS | 0.1100(lbs); 0.050 |
| 030. | 0112351055 | [5] | BOLT,SEMS | 0.0836(lbs); 0.038 |
| 040. | 6C05011690 | [1] | STUD | 0.0946(lbs); 0.043 |
| 050. | 0451250100 | [1] | WASHER,SPRING LOCK | 0.0066(lbs); 0.003 |
| 060. | 0217650100 | [1] | HEX.NUT | 0.0110(lbs); 0.005 |
| 070. | 0501200614 | [2] | PIN,STRAIGHT | 0.0088(lbs); 0.004 |
