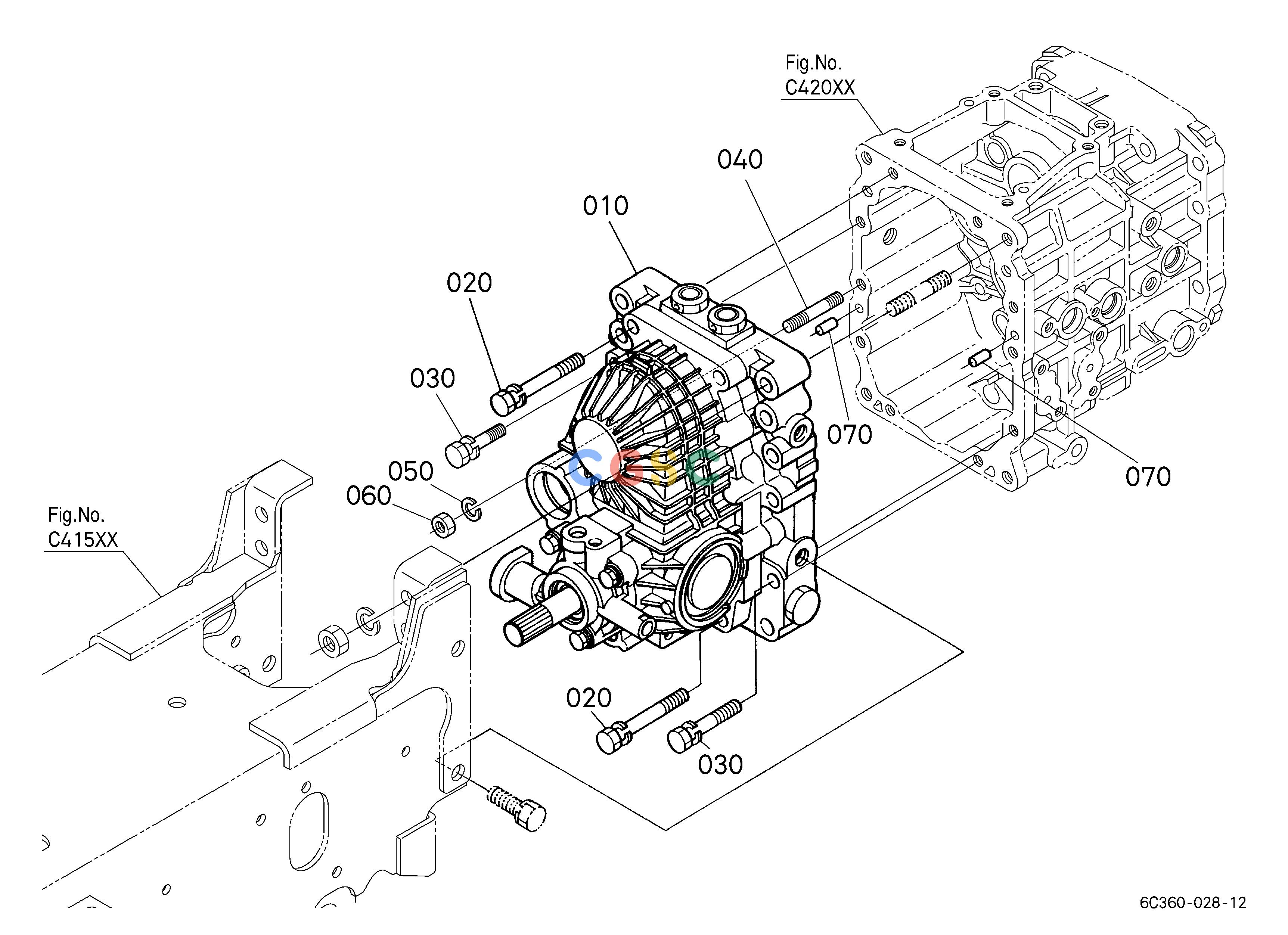

久保田零件查询D01002 HST ## S.No.>=53640 S.No.;>=53640 TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
758 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C15011607
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 010. |
6C15011608
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 010. |
6C15011609
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 020. |
0112351075
|
[4] |
BOLT,SEMS
|
0.1100(lbs); 0.050
|
| 030. |
0112351055
|
[4] |
BOLT,SEMS
|
0.0836(lbs); 0.038
|
| 040. |
0155551045
|
[2] |
STUD
|
0.3740(lbs); 0.170
|
| 050. |
0451250100
|
[2] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 060. |
0217650100
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
0501200614
|
[2] |
PIN,STRAIGHT
|
0.0088(lbs); 0.004
|
