纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-083[03]) - HARNESS ASSY, UPPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
122 次

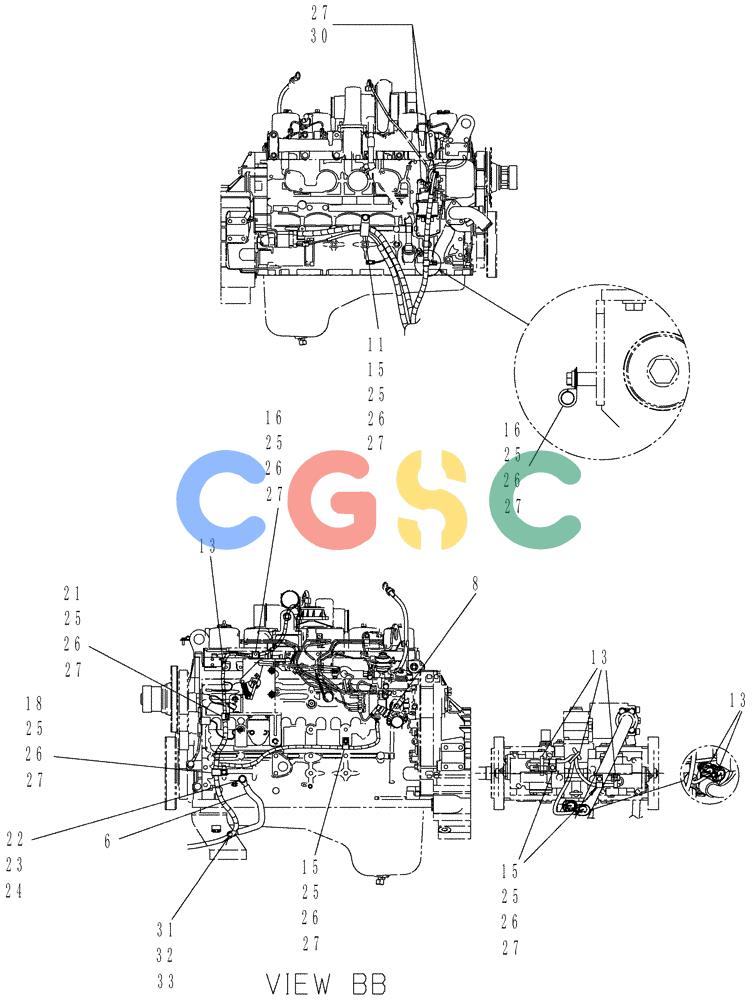

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 6. | YN13E01464P1 | [1] | CABLE,300mm L | KOB300mm Long (11-13/16 in) |
| 13. | PY01P01043D8 | [6] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 18. | EW02E01026D5 | [1] | CLIP | KOB Superseded by part number: 84551318 |
| 22. | ZM73C12020 | [1] | BOLT,M12x20mm - Course Thread | KOBM12x1.75x20mm (Incls. Washer) |
| 23. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 24. | ZW26X12000 | [1] | WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 25. | ZM73C08020 | [8] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 26. | ZW16X08000 | [8] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 27. | ZW26X08000 | [10] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 30. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 32. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 33. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
