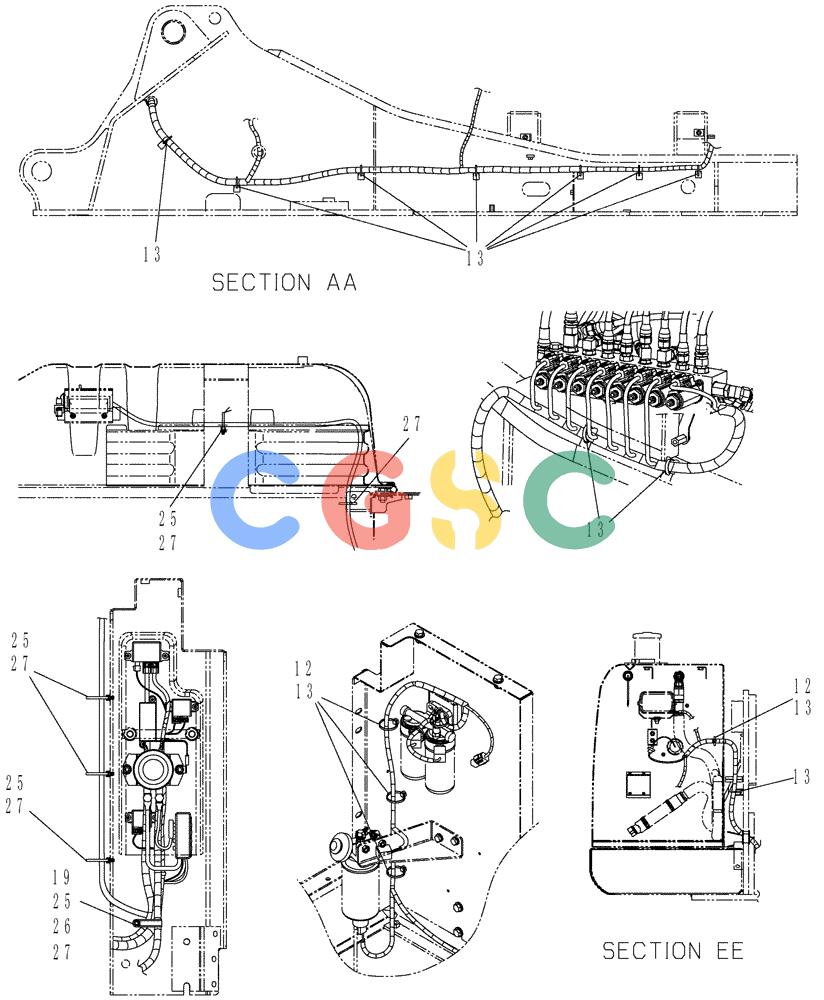

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (ROPS CAB) ASN NBDA21800 (6/13-) (01-083[02]) - HARNESS ASSY, UPPER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
711 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 12. | YN13E01375P1 | [4] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties |
| 13. | PY01P01043D8 | [14] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 25. | ZM73C08020 | [5] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 26. | ZW16X08000 | [1] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 27. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
