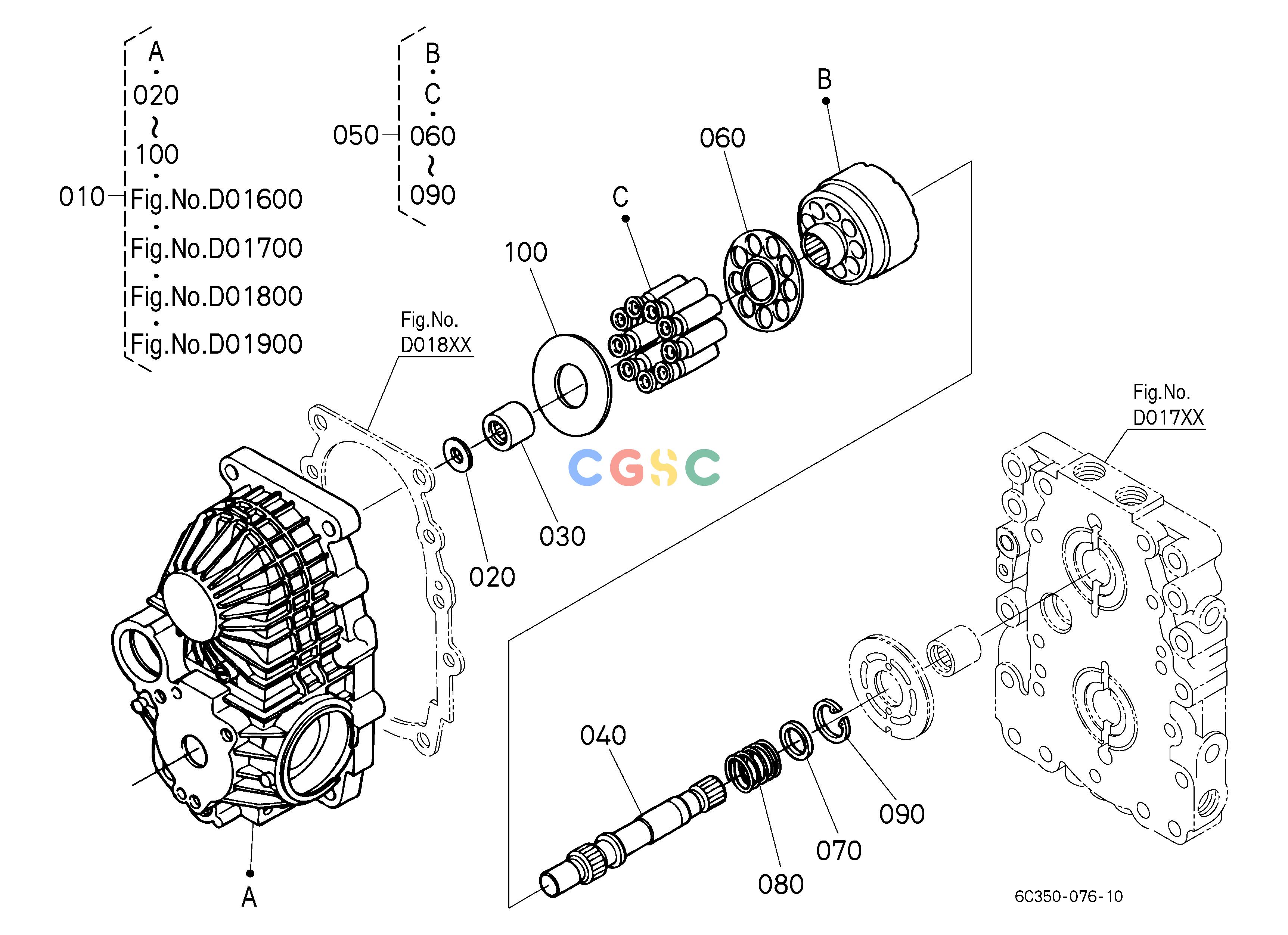

久保田零件查询D01500 HST (CYLINDER BLOCK) [COMPONENT PARTS] 1 TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C15011603
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 010. |
6C15011607
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 010. |
6C15011608
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 010. |
6C15011609
|
[1] |
ASSY HST
|
35.2000(lbs); 16.000
|
| 020. |
6A11035240
|
[1] |
COLLAR,THRUST(24X10)
|
0.0044(lbs); 0.002
|
| 030. |
6A11035122
|
[1] |
BEARING,NEEDLE
|
0.0506(lbs); 0.023
|
| 040. |
3272135230
|
[1] |
SHAFT
|
0.7700(lbs); 0.350
|
| 050. |
3272135070
|
[1] |
ASSY BLOCK,CYL.
|
2.3980(lbs); 1.090
|
| 050. |
6C43035040
|
[1] |
BLOCK,CYLINDER,ASSY
|
2.3540(lbs); 1.070
|
| 060. |
3272135180
|
[1] |
PLATE,RETAINER
|
0.0440(lbs); 0.020
|
| 070. |
6641539240
|
[1] |
HOLDER,SPRING
|
0.0088(lbs); 0.004
|
| 080. |
6641539250
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 090. |
6641539470
|
[1] |
CIR CLIP,INTERNAL
|
0.0440(lbs); 0.020
|
| 100. |
3272135150
|
[1] |
COLLAR,THRUST
|
0.0572(lbs); 0.026
|
