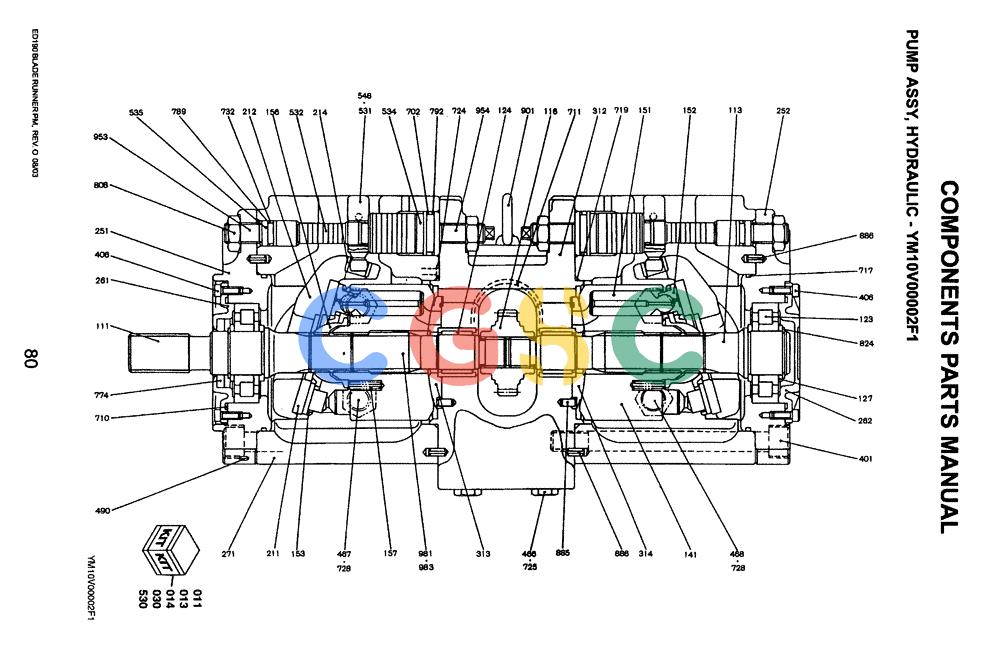

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-017[01]) - PUMP ASSY, HYDRAULIC (YM10V00002F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V00002F2 | [1] | HYDRAULIC PUMP | SMPump, Hydraulic Assembly |
| 011. | YB10V00004R100 | [1] | REPAIR KIT | KOB(Incls. Refs. 151 & 152) Superseded by part number: YW10V00003S011 |
| 013. | YX10V00003R200 | [1] | REPAIR KIT | KOB(Incls. Refs. 141 & 313) |
| 014. | YX10V00003R300 | [1] | REPAIR KIT | KOB(Incls. Refs. 141 & 314) |
| 030. | 2437U412S210 | [1] | REPAIR KIT | KOB(Incls. Refs. 212 & 214) Superseded by part number: YX10V00003R400 |
| 111. | YX10V00003S111 | [1] | SHAFT | KOB |
| 113. | YX10V00003S113 | [1] | SHAFT | KOB |
| 116. | YX10V00003S116 | [1] | GEAR | KOB |
| 123. | YB10V00004S123 | [2] | BEARING | KOB Superseded by part number: 2437U188S123 |
| 124. | YW10V00005S124 | [2] | BEARING | KOB |
| 127. | YW10V00003S127 | [4] | SPACER | KOB |
| 141. | NSS | [2] | NOT SOLD SEPARAT | CONBlock (Part of Kit) |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CONPiston (Part of Kit) |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CONShoe (Part of Kit) |
| 153. | 2437U188S153 | [2] | PLATE | KOB |
| 156. | YW10V00005S156 | [2] | BUSHING | KOB |
| 157. | 2437U188S157 | [18] | SPRING | KOB |
| 211. | 2437U188S211 | [2] | PLATE | KOB |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CONPlate (Part of Kit) |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CONBushing Part of Kit) |
| 251. | 2437U188S251 | [1] | PLATE | KOBRetainer |
| 252. | YX10V00003S252 | [1] | SUPPORT | KOB |
| 261. | 2437U188S261 | [1] | COVER | KOB |
| 262. | YX10V00003S262 | [1] | COVER | KOB |
| 271. | 2437U188S271 | [2] | CASING | KOBHousing |
| 312. | YX10V00003S312 | [1] | BLOCK | KOB |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONPlate (Part of Kit) |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CONPlate (Part of Kit) |
| 401. | 2437U188S401 | [8] | CAPSCREW | KOBSCREW |
| 406. | ZS23C06016 | [8] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 466. | 2441U667S466 | [2] | PLUG | KOB1/4" PF |
| 467. | 2441U667S468 | [4] | PLUG | KOB Superseded by part number: 2441U436S468 |
| 468. | YN30V00001S156 | [2] | PLUG | KOB Superseded by part number: YW30V00001S156 |
| 490. | 2441U722S490 | [15] | PLUG | KOB1/16" NPTF |
| 530. | 2437U188S530 | [1] | REPAIR KIT | KOB(Incls. Refs. 531 & 548) |
| 531. | NSS | [2] | NOT SOLD SEPARAT | CONPin (Part of Kit) |
| 532. | YX10V00003S532 | [2] | PISTON | KOB |
| 534. | YX10V00003S534 | [2] | STOP | KOB |
| 535. | 2437U188S535 | [2] | STOP | KOB |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CONPin (Part of Kit) |
| 702. | YW10V00003S702 | [2] | O-RING | KOB |
| 710. | YX10V00003S011 | [2] | O-RING | KOB |
| 711. | YX10V00003S012 | [1] | O-RING | KOB |
| 717. | YX10V00003S013 | [2] | GASKET | KOB |
| 719. | YX10V00003S014 | [2] | GASKET | KOB |
| 724. | YX10V00003S015 | [18] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB |
| 725. | YT10V00003S710 | [2] | O-RING | KOB |
| 727. | YN10V01001S727 | [2] | O-RING | KOB |
| 728. | YT10V00003S708 | [4] | O-RING | KOB |
| 732. | YW10V00003S732 | [2] | O-RING | KOB |
| 774. | YX10V00003S774 | [1] | OIL SEAL | KOB Superseded by part number: YX10V00003S020 |
| 789. | ZD85P01600 | [2] | RING | KOBBack-Up |
| 792. | ZD85G03000 | [2] | BACK-UP RING | KOBID 30 x OD 35 x Th 1.25mm |
| 808. | ZN18C16010 | [4] | NUT | KOBM16x2.0mm |
| 824. | ZR16X03500 | [2] | RING | KOBRetaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 885. | 2441U436S886 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOBRoll -- OD 06 x 14mm Long |
| 901. | ZS91C01000 | [2] | BOLT | KOBEye -- M10x1.50x18mm |
| 953. | 2437U188S953 | [2] | CAP,M10 x 20mm | KOBScrew |
| 954. | 2437U188S954 | [2] | SCREW | KOB |
| 981. | YX10V00003S981 | [1] | Name Plate | |
| 983. | 2437U407S983 | [2] | RIVET | KOB |
