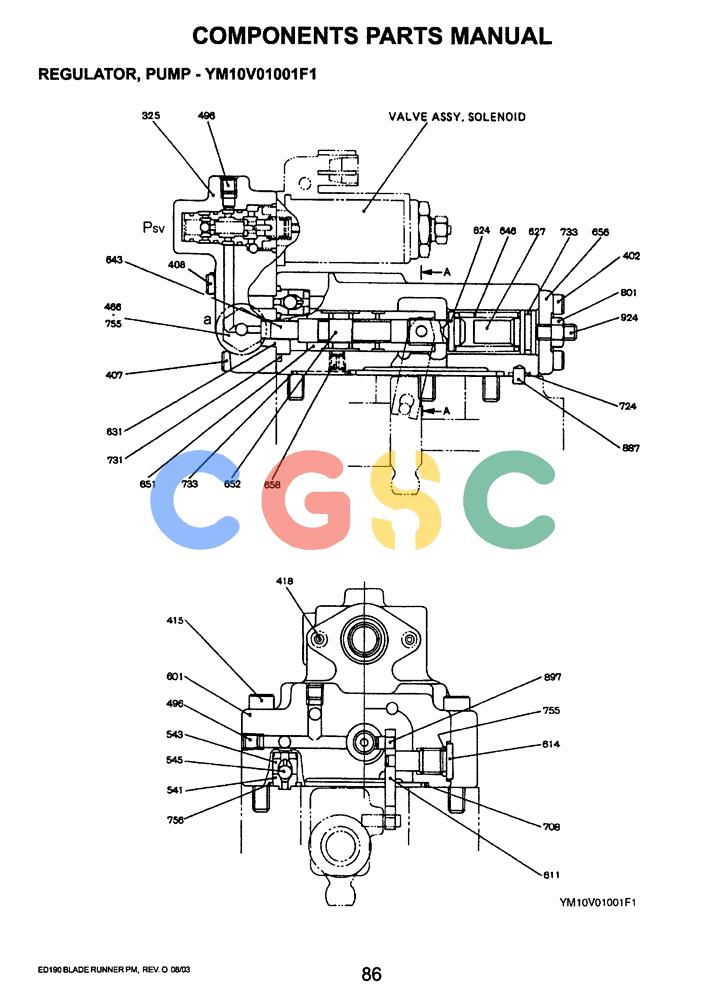

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-018[00]) - REGULATOR, PUMP (YM10V01001F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V01001F1 | [1] | REGULATOR | KOB |
| 325. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE ASSY |
| 402. | ZS23C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 407. | ZS23C06030 | [4] | SCREW,Hex Socket Head, M6 x 30mm | KOBM06x1.0x30mm |
| 408. | ZS23C06040 | [1] | SCREW,Hex Socket Head, M6 x 40mm | KOBM06x1.0x40mm |
| 415. | ZS23C08050 | [6] | CAP,Hex Socket Head, M8 x 50mm | KOBScrew -- M08x1.25x50mm |
| 418. | YX35V00002S171 | [2] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 466. | 2441U667S466 | [1] | PLUG | KOB1/4" PF |
| 496. | 2441U722S490 | [9] | PLUG | KOB1/16" NPTF |
| 541. | YX10V01001S541 | [2] | SEAT | KOBSEAT |
| 543. | YX10V01001S543 | [2] | STOP | KOBSTOPPER Superseded by part number: YF10V01001R100 |
| 545. | 2436R284S416 | [2] | BALL | KOBBALL |
| 601. | NSS | [1] | NOT SOLD SEPARAT | CONCASE |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONLEVER |
| 614. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 624. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 627. | NSS | [1] | NOT SOLD SEPARAT | CONSTEM |
| 631. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 643. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 646. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 651. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 652. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 656. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 658. | YX10V01001S658 | [1] | PLUG | KOBPLUG |
| 708. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.4mm x OD 77.5mm |
| 724. | ZD12P00800 | [5] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 731. | ZD12P02500 | [1] | O-RING | KOBID 24.7mm x OD 28.2mm |
| 733. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 755. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 756. | ZD12P01250 | [2] | O-RING | KOBID 12.3mm X OD 14.7mm |
| 801. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 887. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 897. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 924. | YF10V01001S924 | [1] | SCREW | KOBSCREW |
