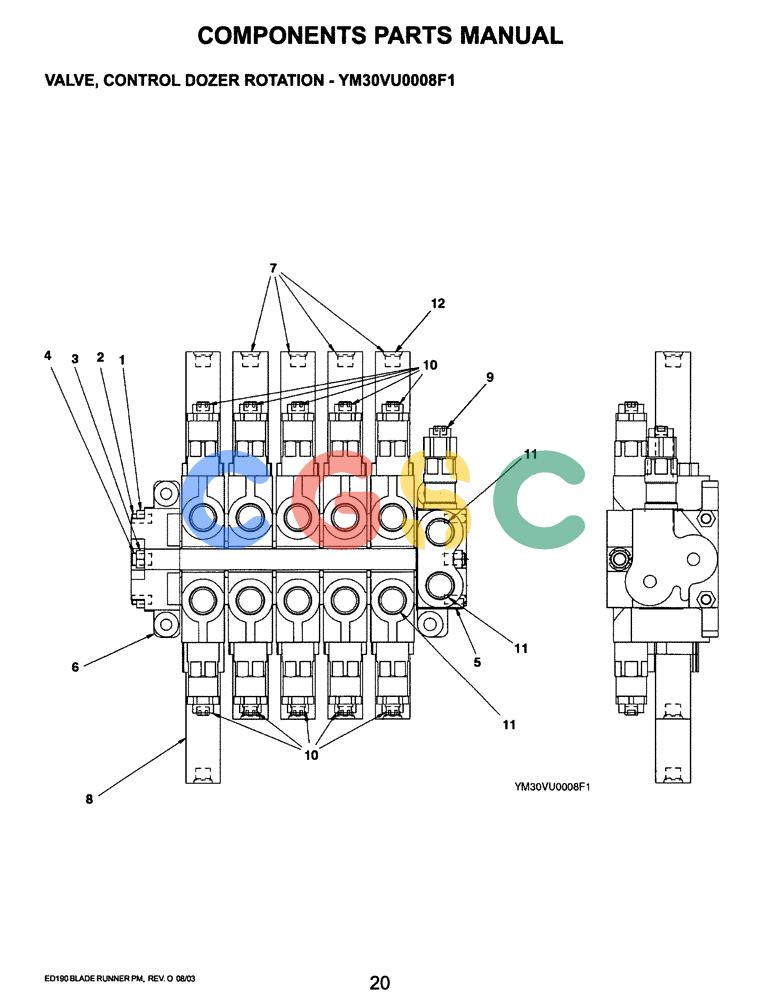

神钢零件查询(ED190LC-6E) - BLADE RUNNER EXCAVATOR/DOZER BTW YL03U0136 - YL03U0292 (1/05-12/06) (07-020) - VALVE, CONTROL DOZER ROTATION (YM30VU0008F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30VU0008F1 | [1] | CONTROL VALVE | KOBVALVE ASSY, CONTROL DOZER ROTATION |
| 1. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 2. | YM30VU1003P1 | [2] | BOLT | KOBRod, Threaded -- M08x1.25x268mm |
| 3. | 2436U424S9 | [2] | NUT | KOBM10x1.50mm |
| 4. | YM30VU1004P1 | [1] | BOLT | KOBRod, Threaded -- M10x1.50x268mm |
| 5. | YR20V00001F1 | [1] | VALVE | KOBVALVE, HYD INLET, Remarks: SEE CPM |
| 6. | 2436R329F1 | [1] | OUTLET | KOBSECTION ASSY, OUTLET |
| 7. | YY30V00051F1 | [4] | MANIFOLD | KOBCONTROL VALVE SECTION, Remarks: SEE CPM |
| 8. | YY30V00052F1 | [1] | MANIFOLD | KOBCONTROL VALVE SECTION, Remarks: SEE CPM |
| 9. | 2436R1119F7 | [1] | HYDRAULIC VALVE | KOBVALVE ASSY, RELIEF, Remarks: SEE CPM |
| 10. | YT22V00006F4 | [10] | VALVE | KOBVALVE ASSY, RELIEF, Remarks: SEE CPM |
| 11. | YR30V00014S010 | [12] | PLUG | KOBPLUG |
| 12. | 2436U2937S18 | [10] | PLUG | KOBPLUG |
