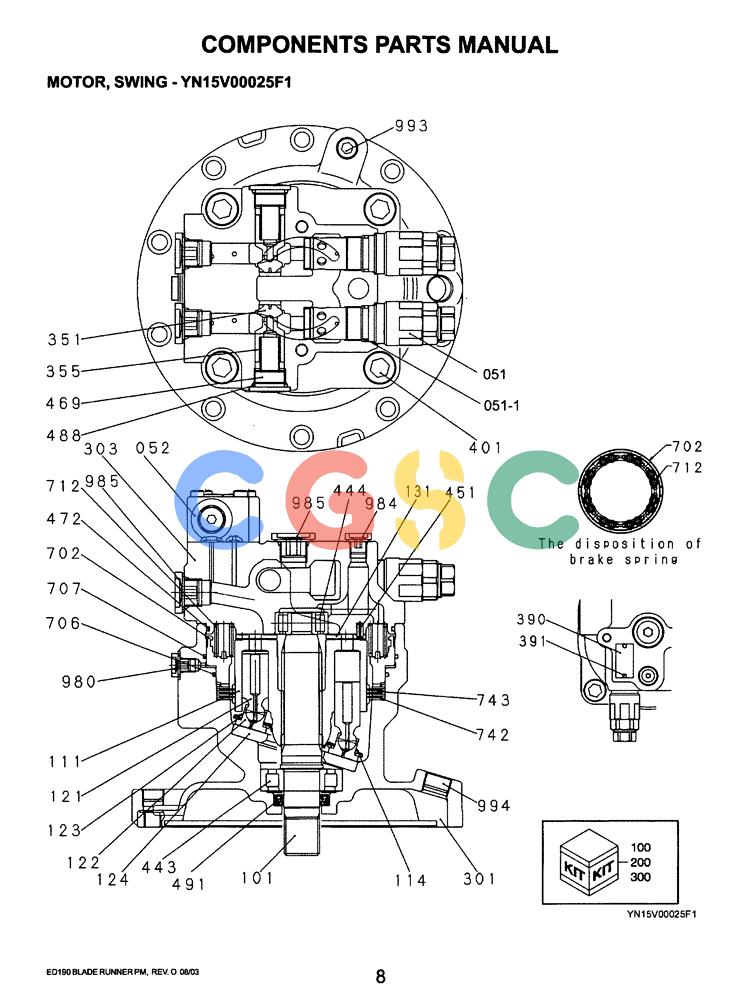

| . . | YN15V00025F1 | [1] | HYDRAULIC MOTOR | KOBMOTOR ASSY, SWING Superseded by part number: YN15V00025F4 |
| 051. | YN22V00014F1 | [2] | VALVE | KOBVALVE, RELIEF |
| 051-1. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 052. | YN20V00004F1 | [1] | VALVE | KOBVALVE ASSY, SWING SHOCKLESS, Remarks: SEE CPM |
| 100. | YN15V00025R100 | [1] | REPAIR KIT | KOBREPAIR KIT (Includes 121,122) |
| 101. | YN15V00025S101 | [1] | SHAFT | KOBshaft |
| 111. | YN15V00025S111 | [1] | CYLINDER | KOBCYLINDER |
| 114. | YN15V00025S114 | [1] | SPRING | KOBSPRING |
| 121. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON (Order Kit YN15V00025R100) |
| 122. | NSS | [9] | NOT SOLD SEPARAT | CONSHOE (Order Kit YN15V00025R100) |
| 123. | YN15V00025S123 | [1] | PLATE | KOBPLATE |
| 124. | YN15V00025S124 | [1] | PLATE | KOBPLATE |
| 131. | YN15V00025S131 | [1] | PLATE | KOBPLATE |
| 200. | YN15V00025R200 | [1] | REPAIR KIT | KOBREPAIR KIT (Includes 303,451) |
| 300. | YN15V00025R300 | [1] | SEAL ASSY. | KOBREPAIR KIT (Includes 472, 488, 491, 706, 707) |
| 301. | YN15V00025S301 | [1] | CASE | KOBCASE |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONCASE (Order Kit YN15V00025R200) |
| 351. | YN15V00025S351 | [2] | SPOOL | KOBSPOOL |
| 355. | YN15V00002S355 | [2] | SPRING | KOBSPRING |
| 390. | 2437U407S981 | [1] | LABEL | KOBNAME PLATE-NO |
| 391. | 2437U407S983 | [2] | RIVET | KOBRIVET |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 443. | YN15V00002S011 | [1] | ROLLER BEARING | KOBBEARING |
| 444. | LQ15V00008S010 | [1] | ROLLER BEARING | KOBBEARING, ROLLER |
| 451. | NSS | [2] | NOT SOLD SEPARAT | CONPIN (Order Kit YN15V00025R200) |
| 469. | YN15V00002S012 | [2] | PLUG | KOBPLUG |
| 472. | 2441U564S735 | [1] | O-RING,3.5mm Thk x 173mm ID, 75 Duro | KOBO-RING (Also part of Kit YN15V00025R300) Superseded by part number: YN15V00025S489 |
| 488. | ZD12P02800 | [2] | O-RING | KOB(Also part of Kit YN15V00025R300), ID 27.70 ± 0.27 x OD 34mm |
| 491. | 2441U509S491 | [1] | OIL SEAL | KOBSEAL, OIL (Also part of Kit YN15V00025R300) |
| 702. | YN15V00002S014 | [1] | PISTON | KOBPISTON |
| 706. | 2441U736S706 | [1] | O-RING | KOBO-RING (Also part of Kit YN15V00025R300) |
| 707. | 2415U188S707 | [1] | O-RING | KOBO-RING (Also part of Kit YN15V00025R300) |
| 712. | YN15V00025S712 | [16] | SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring) | KOBSPRING |
| 742. | YN15V00025S742 | [3] | PLATE,ID14mm : OD15.5mm : W=1.7mm | KOBPLATE |
| 743. | YN15V00025S743 | [4] | PLATE,ID14mm : OD15.5mm : W=2mm | KOBPLATE |
| 980. | LQ15V00001S982 | [1] | PLUG | KOBPLUG |
| 984. | YN15V00002S984 | [1] | PLUG | KOBPLUG |
| 985. | LQ15V00001S983 | [3] | PLUG | KOBPLUG |
| 993. | ZE82T08000 | [2] | PLUG | KOB1/2" PT |
| 994. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
