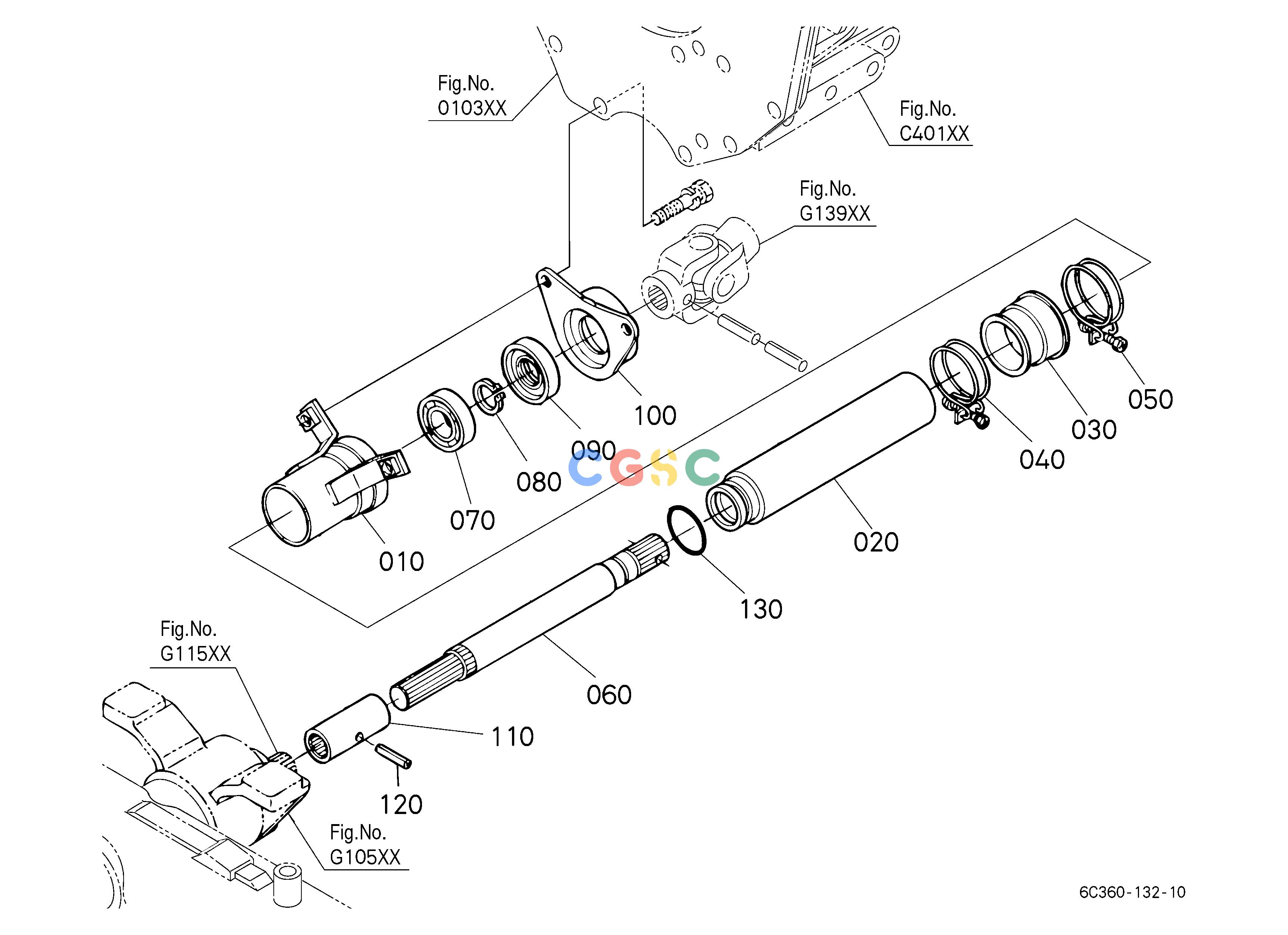

久保田零件查询G13801 DRIVE SHAFT (FRONT) ## S.No.<=54800 S.No.;<=54800 FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04057610
|
[1] |
COVER,FRONT SHAFT
|
0.5456(lbs); 0.248
|
| 020. |
6C07057660
|
[1] |
COVER,FRONT SHAFT
|
0.7700(lbs); 0.350
|
| 030. |
6C04057650
|
[1] |
COVER,FRONT SHAFT
|
0.0770(lbs); 0.035
|
| 040. |
0931889052
|
[1] |
CLAMP,HOSE
|
0.0660(lbs); 0.030
|
| 050. |
0931889058
|
[1] |
CLAMP,HOSE
|
0.0616(lbs); 0.028
|
| 060. |
6C07057620
|
[1] |
SHAFT,FRONT DRIVE
|
2.2660(lbs); 1.030
|
| 070. |
0814106204
|
[1] |
BEARING,BALL
|
0.2222(lbs); 0.101
|
| 080. |
0461200200
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
6C04057630
|
[1] |
SEAL,OIL
|
0.0550(lbs); 0.025
|
| 100. |
6C04057640
|
[1] |
SUPPORT
|
0.3080(lbs); 0.140
|
| 110. |
T007014710
|
[1] |
COUPLING
|
0.3520(lbs); 0.160
|
| 110. |
H313044520
|
[1] |
COUPLING
|
0.3520(lbs); 0.160
|
| 120. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 130. |
0481606370
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
