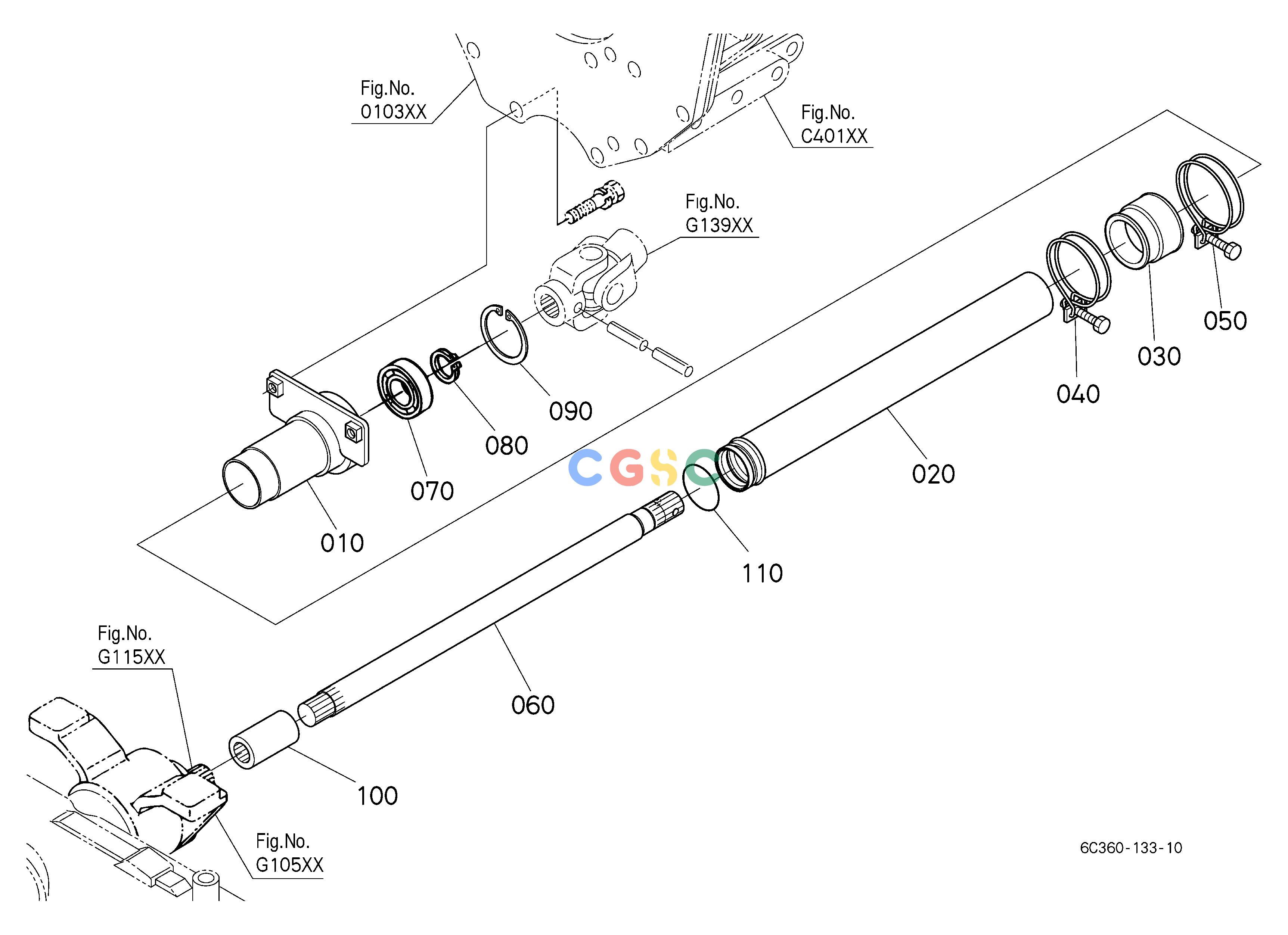

久保田零件查询G13802 DRIVE SHAFT (FRONT) ## S.No.>=54801 S.No.;>=54801 FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C35057612
|
[1] |
COVER,FRONT SHAFT
|
1.0560(lbs); 0.480
|
| 020. |
6C36057660
|
[1] |
COVER,FRONT SHAFT
|
0.7260(lbs); 0.330
|
| 020. |
6C20013970
|
[1] |
COVER,REAR
|
0.7700(lbs); 0.350
|
| 030. |
3741057630
|
[1] |
JOINT,PIPE
|
0.0770(lbs); 0.035
|
| 040. |
6795558260
|
[1] |
BAND,AIR CLEANER
|
0.0616(lbs); 0.028
|
| 050. |
6795558270
|
[1] |
CLAMP,HOSE
|
0.0550(lbs); 0.025
|
| 060. |
6C36057620
|
[1] |
SHAFT,FRONT DRIVE
|
2.3540(lbs); 1.070
|
| 070. |
0814106204
|
[1] |
BEARING,BALL
|
0.2222(lbs); 0.101
|
| 080. |
0461200200
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
0461100470
|
[1] |
CIR-CLIP,INTERNAL
|
0.0132(lbs); 0.006
|
| 100. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
| 110. |
0481606330
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
