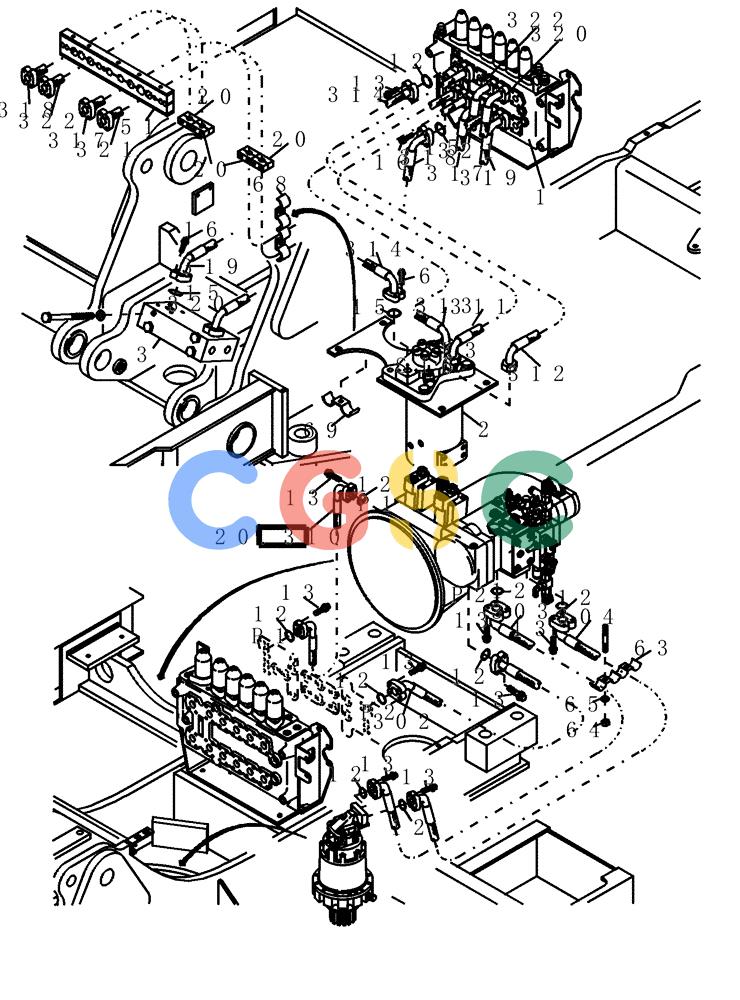

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (20.310[002]) - HYDRAULIC SYSTEM HIGH PRESSURE (S/N 11701-12057) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NS | [1] | NOT SERVICED | BASCONTROL BLOCK INSTALL.MATERIAL SEE FIGURE 23.610/002 |
| 12. | 73170341 | [13] | SEALING RING | BERSEALING RING Superseded by part number: 1725417 |
| 13. | 73170342 | [52] | 12 PT SCREW | BER12-POINT SCREW Superseded by part number: 1741263 |
| 15. | 73170327 | [9] | RING | BERSEALING RING Superseded by part number: 1725418 |
| 16. | 73170328 | [36] | SCREW | BER12-POINT SCREW Superseded by part number: 1265079 |
| 20. | 73177209 | [4] | CLIP | BER Superseded by part number: 1264044 |
| 51. | 73179487 | [1] | CLIP | BER Superseded by part number: 3001513 |
| 63. | 73177212 | [1] | CLIP | BER Superseded by part number: 2247652 |
| 64. | 73170215 | [2] | NUT | BERHEXAGON NUT Superseded by part number: 11701721 |
| 65. | 73170182 | [2] | WASHER | BERDISK/WASHER Superseded by part number: 84089817 |
| 68. | 73177213 | [1] | CLIP | BER Superseded by part number: 1261477 |
| 69. | 73177214 | [1] | CLIP | BER Superseded by part number: 1261474 |
| 302. | 73179715 | [1] | HOSE | BER Superseded by part number: 3001318 |
| 303. | 73177410 | [1] | HOSE | BER Superseded by part number: 1293344 |
| 304. | 73179716 | [1] | HOSE | BER Superseded by part number: 3001319 |
| 311. | 73177412 | [1] | HOSE | BER Superseded by part number: 1294944 |
| 312. | 73177413 | [1] | HOSE | BER Superseded by part number: 1294945 |
| 313. | 73177414 | [1] | HOSE | BER Superseded by part number: 1294946 |
| 314. | 73177415 | [1] | HOSE | BER Superseded by part number: 1294947 |
| 317. | 73179488 | [1] | HOSE | BER Superseded by part number: 1262633 |
| 318. | 73179489 | [1] | HOSE | BER Superseded by part number: 1262631 |
| 319. | 73177217 | [1] | HOSE | BER Superseded by part number: 1262622 |
| 320. | 73177218 | [1] | HOSE | BER Superseded by part number: 1264348 |
| 321. | 73179490 | [1] | HOSE | BER Superseded by part number: 1262632 |
| 322. | 73179491 | [1] | HOSE | BER Superseded by part number: 1262634 |
