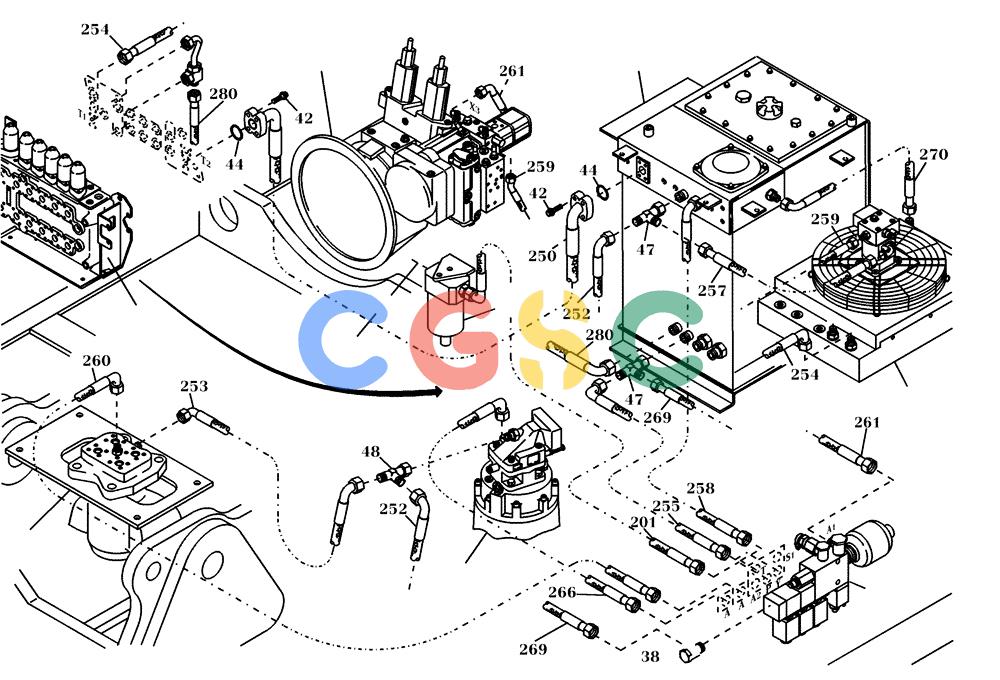

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (20.320[002]) - HYDRAULIC SYSTEM LOW PRESSURE (S/N 12058-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
364 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 5. | NS | [1] | NOT SERVICED | BASFILTER INSTALL.MATERIAL SEE FIGURE 22.200/001 |
| 38. | 73170655 | [1] | SWIVEL CONNECTION | BERSWING FIXTURE Superseded by part number: 2479660 |
| 42. | 73170470 | [8] | SCREW | BER12-POINT SCREW Superseded by part number: 1183269 |
| 44. | 73170346 | [2] | O-RING | BERSEALING RING Superseded by part number: 1725419 |
| 47. | 73170474 | [2] | 3 WAY CONNECTION | BERSOCKET Superseded by part number: 1991910 |
| 48. | 73170473 | [1] | HYD CONNECTOR | BERSOCKET Superseded by part number: 84090114 |
| 201. | 73177416 | [1] | HOSE | BER Superseded by part number: 1290516 |
| 250. | 73177224 | [1] | HOSE | BER Superseded by part number: 1275883 |
| 252. | 73177225 | [1] | HOSE | BER Superseded by part number: 1288628 |
| 253. | 73177226 | [1] | HOSE | BER Superseded by part number: 1289136 |
| 254. | 73177417 | [1] | HOSE | BER Superseded by part number: 1294908 |
| 255. | 73177228 | [1] | HOSE | BER Superseded by part number: 1280217 |
| 257. | 73181891 | [1] | FLEXIBLE HOSE | BERHOSE Superseded by part number: 1298935 |
| 258. | 73177230 | [1] | HOSE | BER Superseded by part number: 1258863 |
| 259. | 73179722 | [1] | HOSE | BER |
| 260. | 73175605 | [1] | HOSE | BER Superseded by part number: 1258314 |
| 261. | 73177769 | [1] | HOSE | BER Superseded by part number: 1295731 |
| 266. | 73177232 | [1] | HOSE | BER Superseded by part number: 1288631 |
| 269. | 73180729 | [1] | FLEXIBLE HOSE | BERHOSE Superseded by part number: 3001447 |
| 270. | 73179723 | [1] | HOSE | BER Superseded by part number: 3001443 |
| 280. | 73177234 | [1] | HOSE | BER Superseded by part number: 1258486 |
