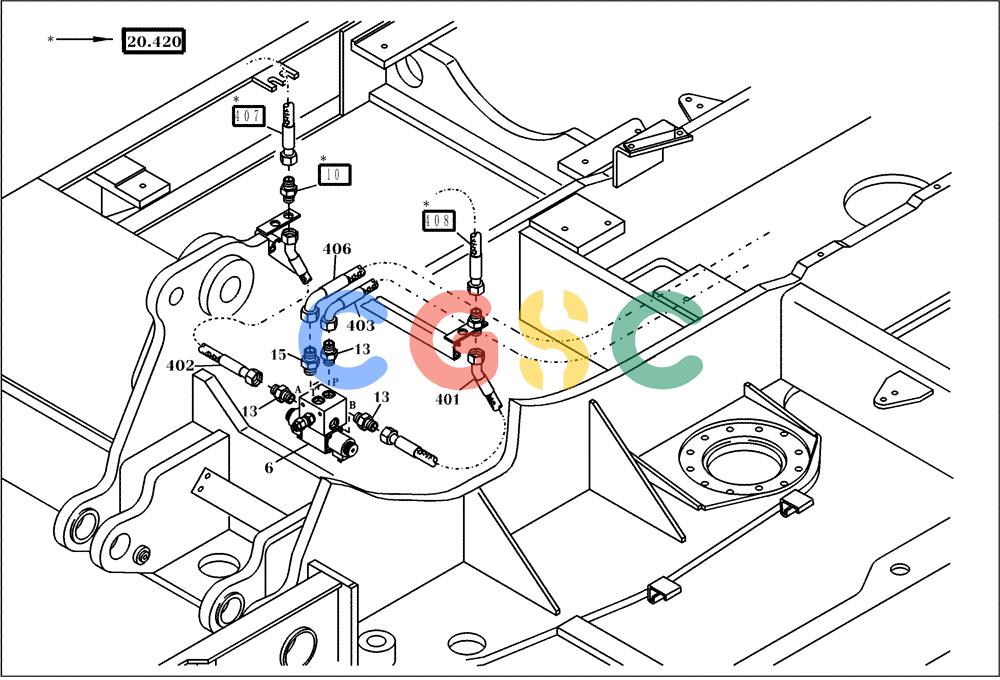

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (20.420[001]) - HYDRAULIC SYSTEM GRAB TURNING (OPTION) (S/N 11722-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
442 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 6. | NS | [1] | NOT SERVICED | BASSOLENOID VALVE SEE FIGURE 23.232/003 |
| 13. | 73171890 | [3] | SOCKET | BER Superseded by part number: 1791011 |
| 15. | 73170298 | [1] | HYD CONNECTOR | BERSOCKET Superseded by part number: 73170299 |
| 401. | 73179750 | [1] | HOSE | BER Superseded by part number: 1271524 |
| 403. | 73182145 | [1] | HOSE | BER Superseded by part number: 3001323 |
| 406. | 73179788 | [1] | HOSE | BER Superseded by part number: 3001681 |
