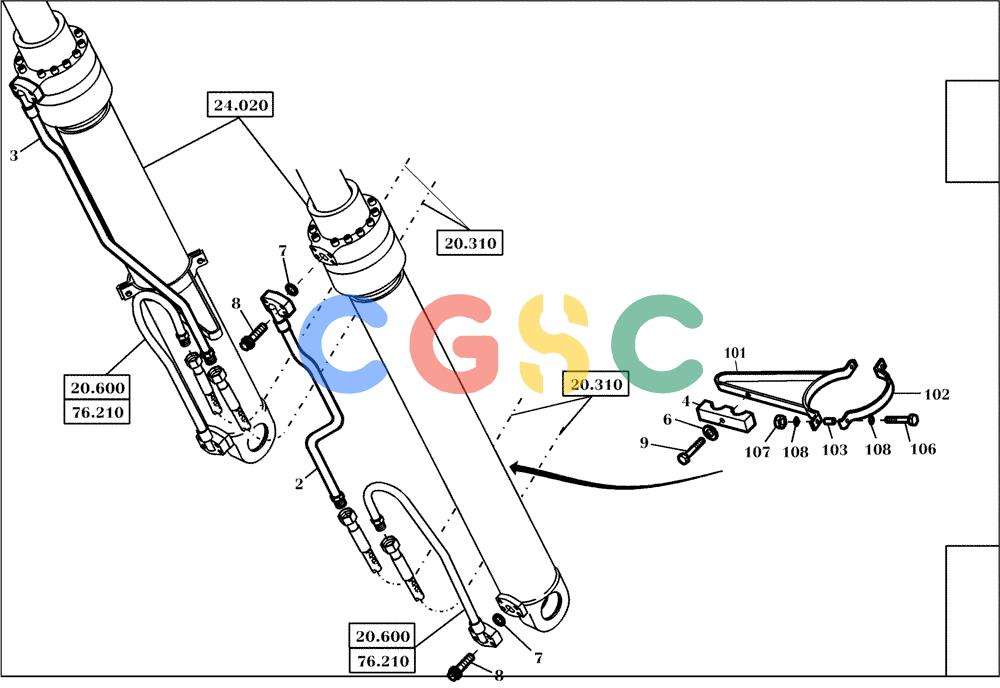

纽荷兰零件查询(EC130) - CRAWLER EXCAVATOR (4/99-) (20.600[003]) - HYDRAULIC SYSTEM BOOM CYLINDERS (S/N 12058-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
759 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 73188405 | [1] | TUBE | BERPIPE Superseded by part number: 3007570 |
| 3. | 73188406 | [1] | TUBE | BERPIPE Superseded by part number: 3007571 |
| 4. | 73188407 | [2] | CLAMP | BERING SHEET Superseded by part number: 2900879 |
| 6. | 73170169 | [2] | WASHER | BERDISK/WASHER Superseded by part number: 84089818 |
| 7. | 73170341 | [2] | SEALING RING | BERSEALING RING Superseded by part number: 1725417 |
| 8. | 73170342 | [8] | 12 PT SCREW | BER12-POINT SCREW Superseded by part number: 1741263 |
| 9. | 73174390 | [2] | BOLT,Hex, M12 x 50, 8.8, Full Thd | BERHEXAGON BOLT Superseded by part number: 120122 |
| 101. | 73188408 | [2] | CLAMP | BERCLIP HALF Superseded by part number: 3013396 |
| 102. | 73188409 | [2] | CLAMP | BERCLIP HALF Superseded by part number: 3013397 |
| 103. | 73183442 | [4] | SPACER | BERRING Superseded by part number: 3001828 |
| 106. | 73170531 | [4] | BOLT,Hex, M12 x 40, 8.8, Full Thd | BERHEXAGON BOLT Superseded by part number: 8963100113 |
| 107. | 73170162 | [4] | NUT,M12, Cl 8 | BERHEXAGON NUT Superseded by part number: 9706685 |
