神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-001) - ATT ASY., HOE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

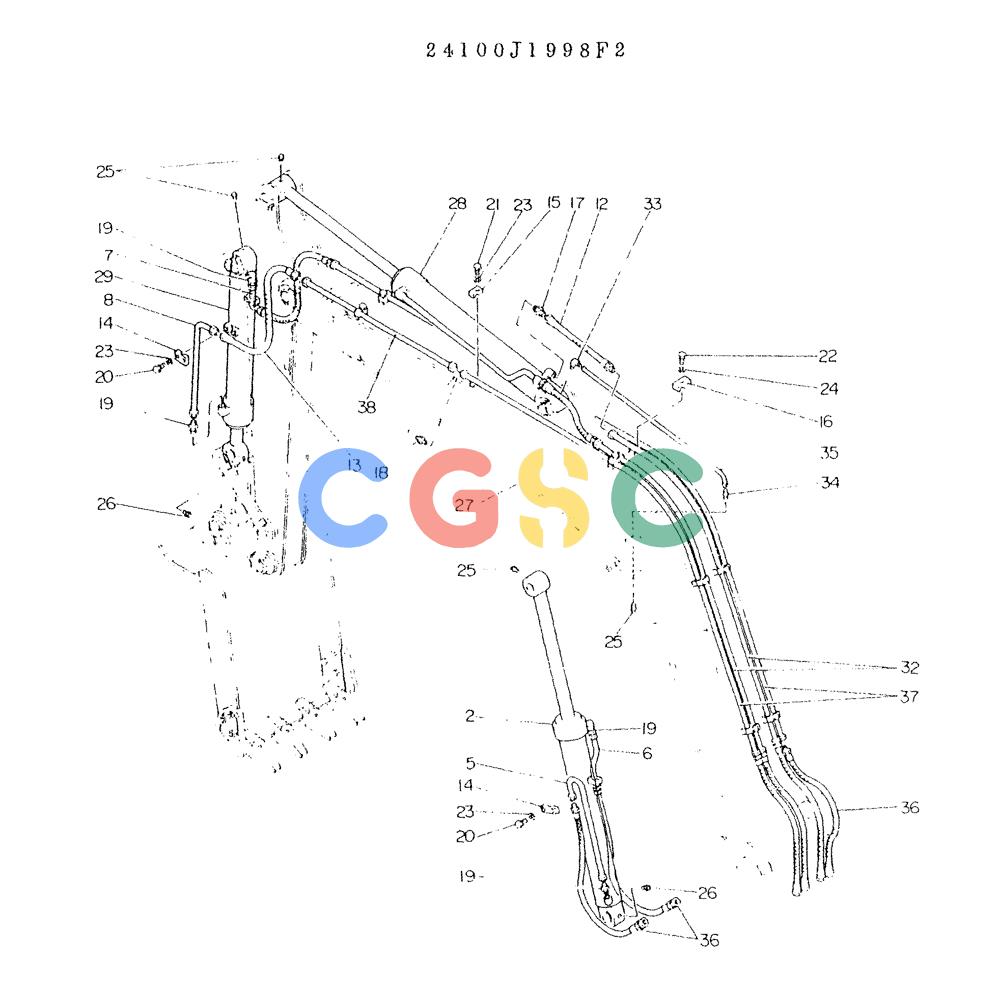

| . . | 24100J1998F2 | [1] | ATT ASSY, HOE, CONSISTS OF REF. 2 TO 38 | |
| 2. | 2438U377F1 | [1] | CYLINDER | |
| 5. | 2418P4192 | [1] | TUBE | |
| 6. | 2418P4167 | [1] | TUBE | |
| 7. | 2418P4168 | [1] | TUBE | TUBE |
| 8. | 2418P4169 | [1] | TUBE | KOB |
| 12. | 2444R558D1 | [2] | HOSE | |
| 13. | 2444R558D4 | [2] | HOSE | |
| 14. | 2416T3204 | [4] | CLAMP | KOB |
| 15. | ZC27X18009 | [4] | CLAMP | KOB |
| 16. | ZC37X18112 | [6] | CLAMP | KOB |
| 17. | ZK23G18008 | [2] | HYD CONNECTOR | KOB |
| 18. | ZK23B18000 | [2] | HYD CONNECTOR | KOB |
| 19. | ZK23E18008 | [4] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 20. | ZS16C08030 | [8] | CAPSCREW M08x1.25x30mm | CAPSCREW M08x1.25x30mm |
| 21. | ZS16C08038 | [4] | CAPSCREW | |
| 22. | ZS16C10040 | [6] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
| 23. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 24. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 25. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 26. | ZG91U02000 | [3] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 27. | 24100J1997F2 | [1] | ATT SUBASSY, HOE, SEE FIG. 09-002 | |
| 28. | 2438U409F2 | [1] | CYLINDER | |
| 29. | 2438U257F5 | [1] | CYLINDER | CYLINDER |
| 32. | 2418P4676 | [2] | TUBE | |
| 33. | R44P0075 | [1] | ELBOW | ELBOW |
| 34. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 35. | 2420R349D14 | [1] | FLEXIBLE HOSE | KOB140mm Long (5-1/2 in) Superseded by part number: HX21E04100DX |
| 36. | 2444R558D3 | [6] | HOSE | |
| 37. | 2418P4896 | [2] | TUBE | |
| 38. | 2418T5869 | [2] | TUBE | |
