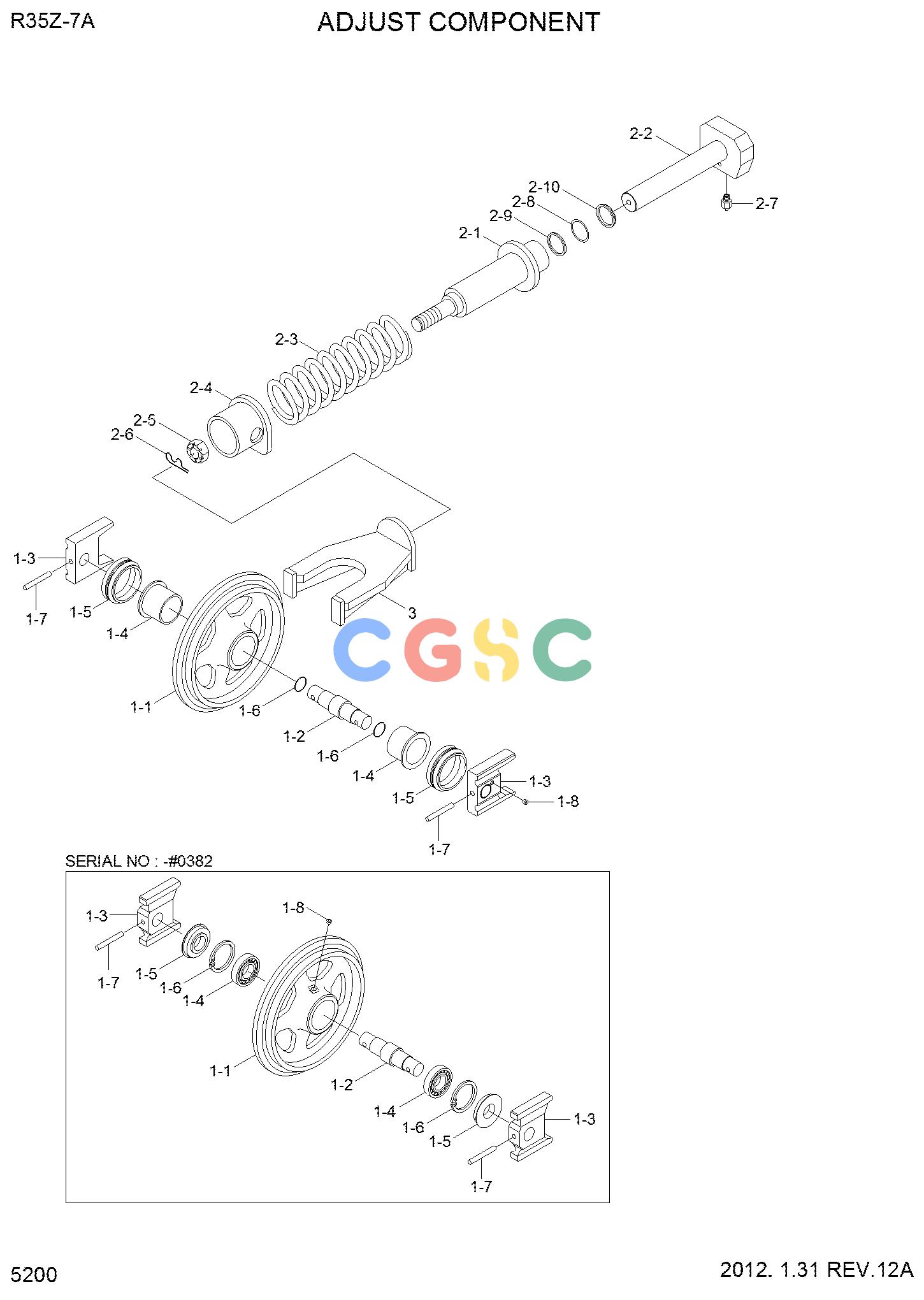

现代零件查询R35Z-7 ADJUST COMPONENT(-#0324)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
81MH-15051
|
[1] |
ADJUST COMP-LH
|
|
| . |
81MH-15052
|
[1] |
ADJUST COMP-LH
|
|
| . |
81MH-15061
|
[1] |
ADJUST COMP-RH
|
|
| . |
81MH-15062
|
[1] |
ADJUST COMP-RH
|
|
| N . |
81MH-15020
|
[1] |
ADJUST COMP-LH
|
|
| N . |
81MH-15021
|
[1] |
ADJUST COMP-LH
|
|
| N . |
81MH-15030
|
[1] |
ADJUST COMP-RH
|
|
| N . |
81MH-15031
|
[1] |
ADJUST COMP-RH
|
|
| 1. |
81MH-13052
|
[1] |
IDLER ASSY
|
|
| 1. |
81MH-13070
|
[1] |
IDLER ASSY
|
|
| 1. |
81MH-13021
|
[1] |
IDLER ASSY
|
|
| 1. |
81MH-13040
|
[1] |
IDLER ASSY
|
|
| N1-1. |
81MH-13100
|
[1] |
SHELL
|
|
| 1-1. |
81MH-13700
|
[1] |
SHELL
|
|
| N1-1. |
81MH-13200
|
[1] |
SHELL
|
|
| 1-1. |
81MH-13400
|
[1] |
SHELL
|
|
| 1-2. |
81MH-13120
|
[2] |
SHAFT
|
|
| 1-2. |
81MH-13711
|
[2] |
SHAFT
|
|
| N1-3. |
81MH-13112
|
[1] |
BRACKET-IDLER
|
|
| 1-3. |
81MH-13731
|
[1] |
COLLAR
|
|
| 1-4. |
81MH-11130
|
[2] |
BEARING-BALL
|
|
| 1-4. |
81MK-13320
|
[2] |
BUSHING
|
|
| 1-5. |
81MH-11140
|
[2] |
SEAL-OIL
|
|
| 1-5. |
81MK-13340
|
[2] |
SEAL ASSY
|
|
| 1-6. |
S602-072004
|
[2] |
RING-RETAINING
|
|
| 1-6. |
81MK-13370
|
[2] |
O-RING
|
|
| 1-7. |
S471-910504
|
[2] |
SPRING PIN
|
|
| 1-7. |
81MH-13780
|
[2] |
SPRING PIN
|
|
| 1-8. |
P220-430201
|
[2] |
PLUG-HEX
|
|
| 1-8. |
81MJ-13390
|
[2] |
PLUG-HEX
|
|
| 2. |
81MH-14051
|
[1] |
TENSION CYL-LH
|
|
| 2. |
81MH-14061
|
[1] |
TENSION CYL-RH
|
|
| 2-1. |
81MH-14200
|
[1] |
BODY ASSY
|
|
| 2-2. |
81MH-14210
|
[1] |
ROD ASSY-LH
|
|
| 2-2. |
81MH-14310
|
[1] |
ROD ASSY-RH
|
|
| 2-3. |
81MH-14220
|
[1] |
SPRING-TENSION
|
|
| 2-4. |
81MH-14230
|
[1] |
CAP
|
|
| 2-5. |
81MH-14240
|
[1] |
NUT
|
|
| 2-6. |
S461-630562
|
[1] |
PIN-SPLIT
|
|
| 2-7. |
81EL-20090
|
[1] |
VALVE-GREASE
|
|
| 2-8. |
81MH-14260
|
[1] |
O-RING
|
|
| 2-9. |
81MH-14270
|
[1] |
RING-BACKUP
|
|
| 2-10. |
81MH-14280
|
[1] |
PACKING
|
|
| 3. |
81MH-18051
|
[1] |
YOKE
|
|
