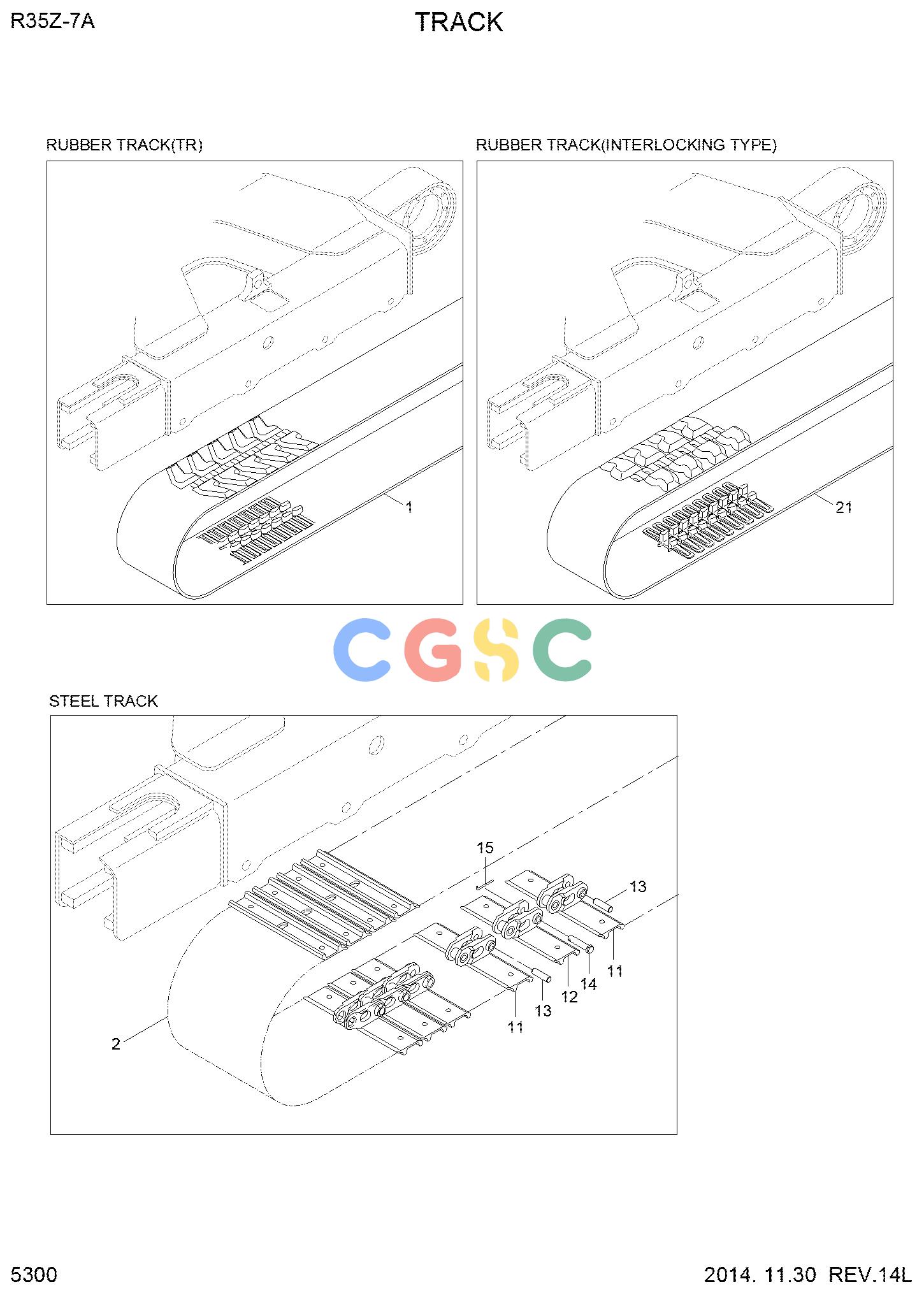

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
81MH-27010
|
[2] |
RUBBER TRACK
|
|
| 1. |
81MH-27011
|
[2] |
TRACK-RUBBER
|
|
| 2 . |
81MH-26010
|
[2] |
TRACK CHAIN
|
|
| 1. |
81MH-27011
|
[2] |
RUBBER TRACK
|
|
| 11. |
ZGAG-00004
|
[43] |
TRACK LINK KIT
|
|
| 12. |
ZGAG-00005
|
[1] |
MASTER LINK KIT
|
|
| 13. |
ZGAG-00011
|
[43] |
PIN
|
|
| 14. |
ZGAG-00012
|
[1] |
PIN-MASTER
|
|
| 15. |
ZGAG-00013
|
[1] |
PIN-COTTER
|
|
| 21. |
83MH-27010
|
[2] |
RUBBER TRACK ASSY
|
|
| 2 . |
81MH-26010
|
[2] |
TRACK CHAIN
|
|
| 11. |
ZGAG-00004
|
[43] |
TRACK LINK KIT
|
|
| 12. |
ZGAG-00005
|
[1] |
MASTER LINK KIT
|
|
| 13. |
ZGAG-00011
|
[43] |
PIN
|
|
| 14. |
ZGAG-00012
|
[1] |
PIN-MASTER
|
|
| 15. |
ZGAG-00013
|
[1] |
PIN-COTTER
|
|
