神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-004) - BUCKET ASSY, 0.35M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
735 次

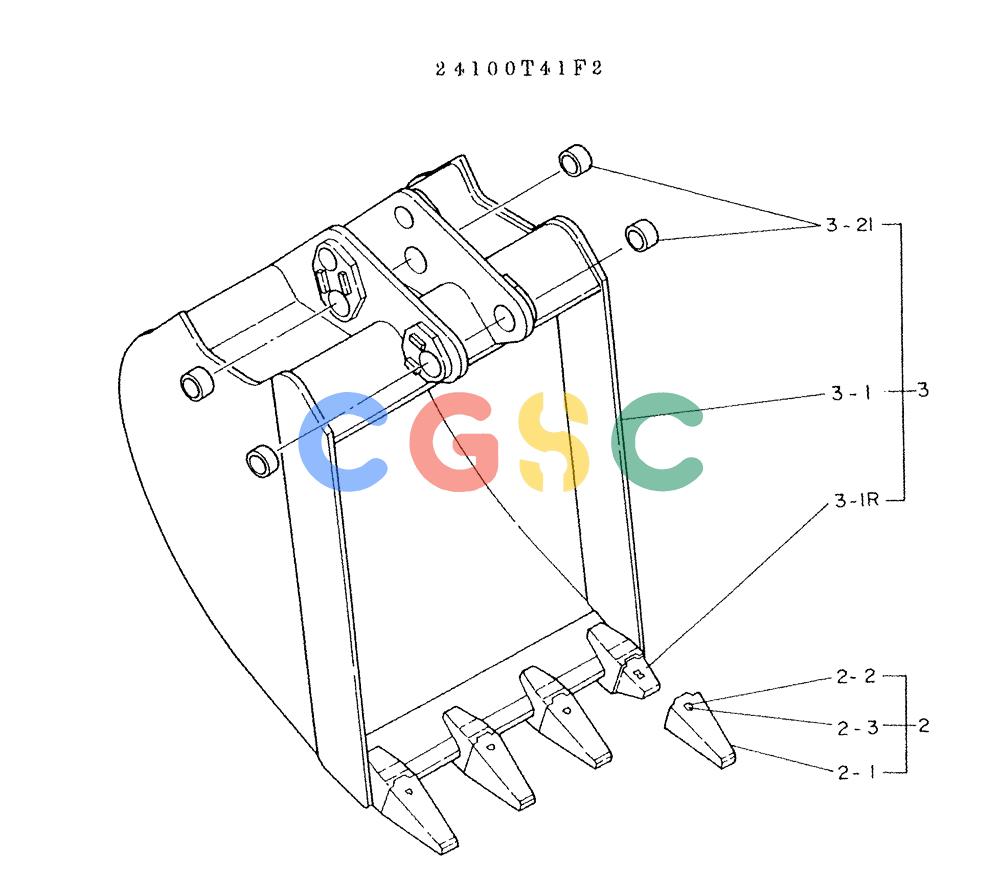

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100T41F2 | [1] | BUCKET ASSY, 0.35M3, CONSISTS OF REF. 2 & 3 | |
| 2. | B12P0015F1 | [4] | TOOTH | KOBASSY, CONSISTS OF REF. 2-1 TO 2-3 |
| 2-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOBLOCK-PIN, RUBBER Superseded by part number: B12P0015E3MK |
| 3. | 2412J275F1 | [1] | BUCKET, CONSISTS OF REF. 3-1 & 3-21 | |
| 3-1. | 2412J275 | [1] | BUCKET, CONSISTS OF REF. 3-1R TO 3-1R | |
| 3-1R. | 2412N214 | [4] | ADAPTER | KOB |
| 3-21. | 2405T708 | [4] | BUSHING | |
