神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-005) - BUCKET ASSY 0.2M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
252 次

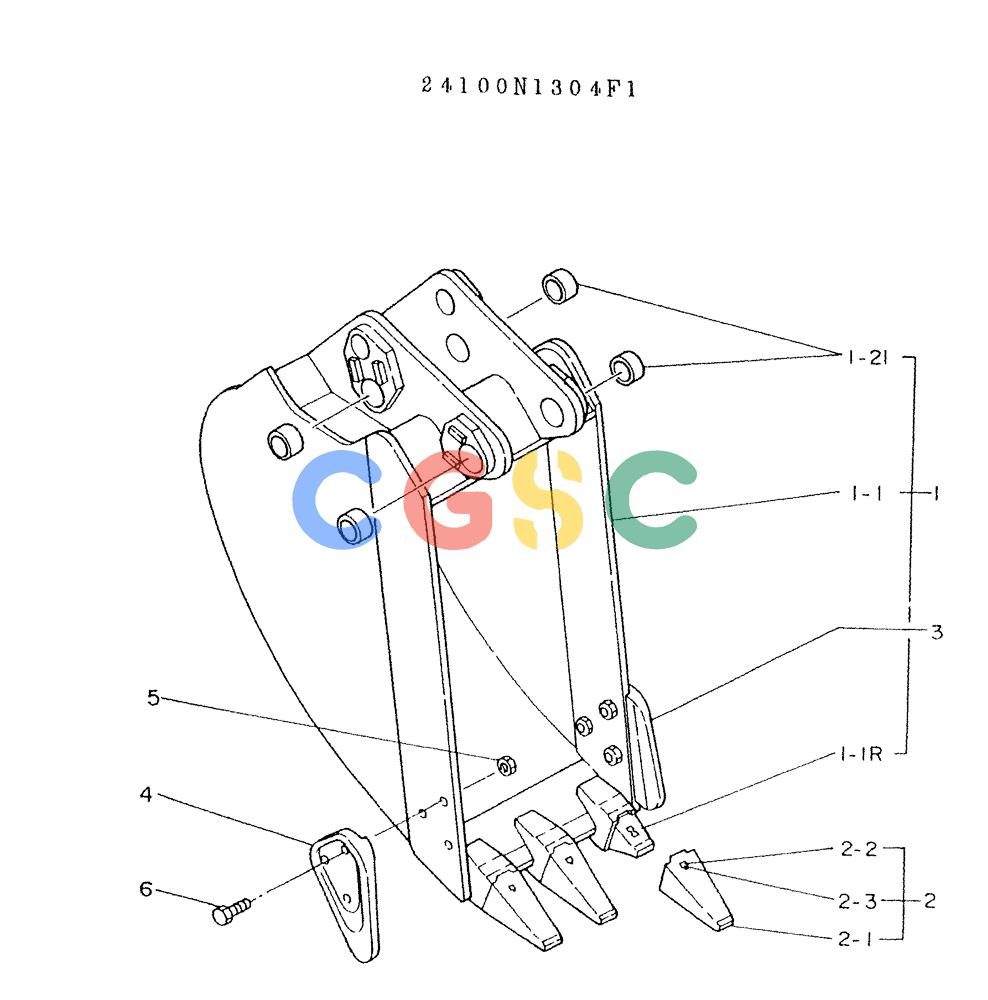

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N1304F1 | [1] | BUCKET ASSY. 0.2M3, CONSISTS OF REF. 1 TO 6 | |
| 1. | 2412J274F1 | [1] | BUCKET, CONSISTS OF REF 1-1TO 1-21 | |
| 1-1. | 2412J274 | [1] | BUCKET, CONSISTS OF REF 1-1R TO 1-1H | |
| 1-1R. | 2412N214 | [3] | ADAPTER | KOB |
| 1-21. | 2405T708 | [4] | BUSHING | |
| 2. | B12P0015F1 | [3] | TOOTH | KOBCONSISTS OF REF. 2-1 TO 2-3 |
| 2-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOBLOCK-PIN, RUBBER Superseded by part number: B12P0015E3MK |
| 3. | 2412P243D1 | [1] | CUTTER, SIDE | |
| 4. | 2412P243D2 | [1] | CUTTER, SIDE | |
| 5. | ZN13F16013 | [6] | NUT | KOB |
| 6. | ZS13F16045 | [6] | CAPSCREW | |
