| Pos. | Part No | Qty | Parts name | Comments |
|---|

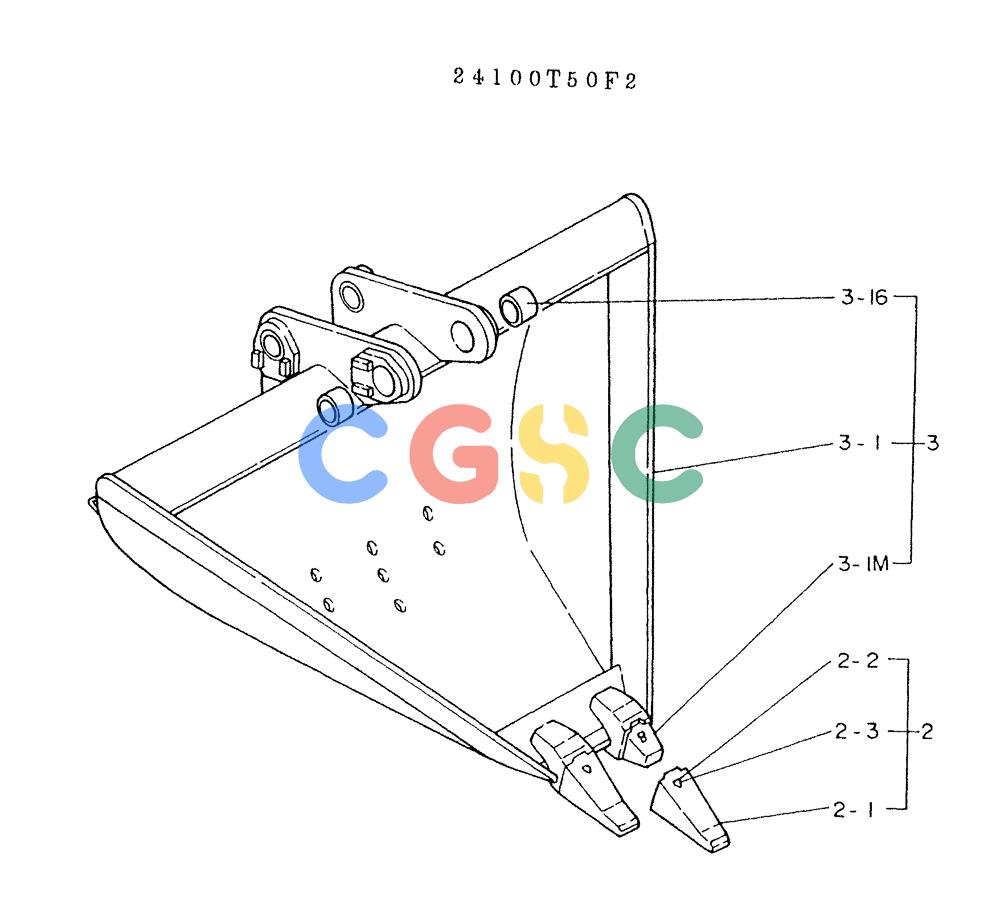

| . . | 24100T50F2 | [1] | BUCKET ASSY, V, CONSISTS OF REF. 2 & 3 | |
| 2. | B12P0015F1 | [2] | TOOTH | KOBCONSISTS OF REF. 2-1 TO 2-3 |
| 2-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 3. | 2412J277F1 | [1] | BUCKET, V, CONSISTS OF REF. 3-1 & 3-16 | |
| 3-1. | 2412J277 | [1] | BUCKET, V, CONSISTS OF REF. 3-1M TO 3-1M | |
| 3-1M. | 2412N214 | [2] | ADAPTER | KOB |
| 3-16. | 2405T708 | [4] | BUSHING | |
