神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-006) - BUCKET ASSY 0.1M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
534 次

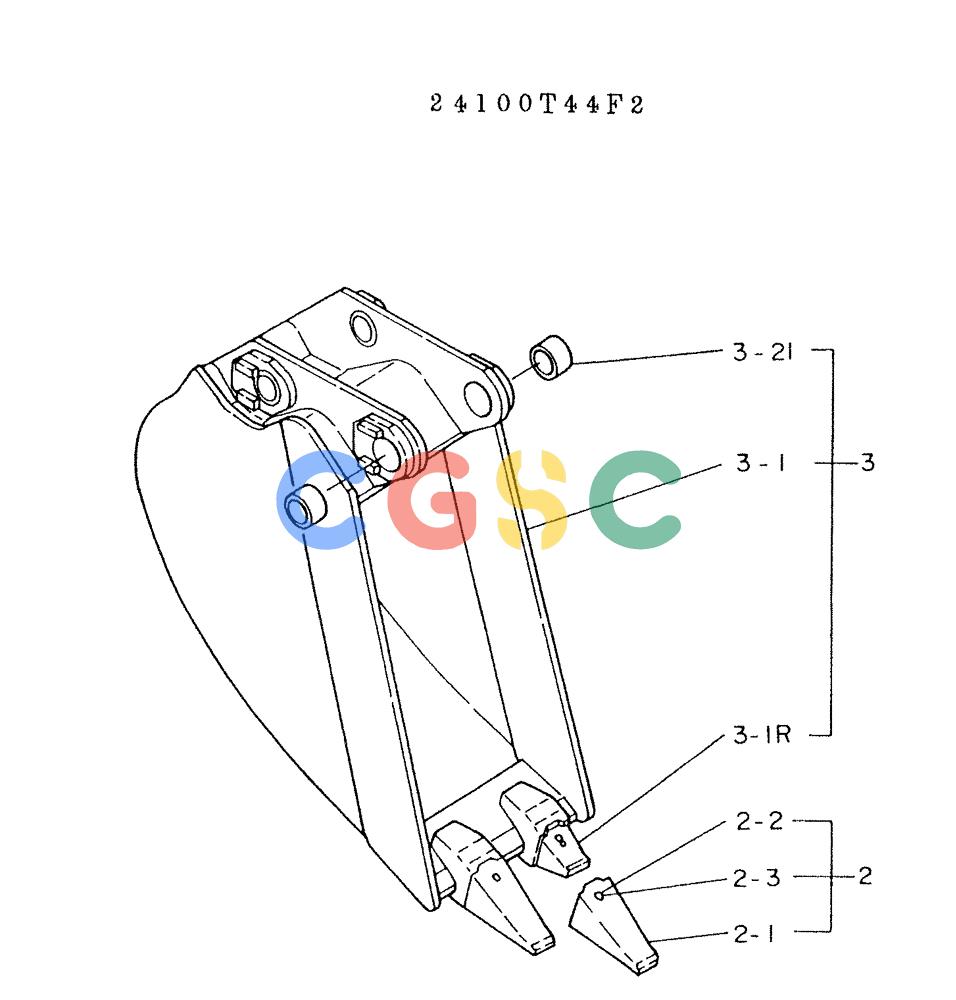

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100T44F2 | [1] | BUCKET ASSY, 0.1M3, CONSISTS OF REF 2 & 3 | |
| 2. | B12P0015F1 | [2] | TOOTH | KOBCONSISTS OF REF. 2-1 TO 2-3 |
| 2-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 3. | 2412J273F1 | [1] | BUCKET, CONSISTS OF REF. 3-1 & 3-21 | |
| 3-1. | 2412J273 | [1] | BUCKET CONSISTS OF REF 3-1R TO 3-1R | |
| 3-1R. | 2412N14 | [2] | ADAPTER | |
| 3-21. | 2405T708 | [4] | BUSHING | |
