神钢零件查询(K903A) - EXCAVATOR BTW K2748 - K3928 (1/76-12/03) (09-009) - RIPPER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
555 次

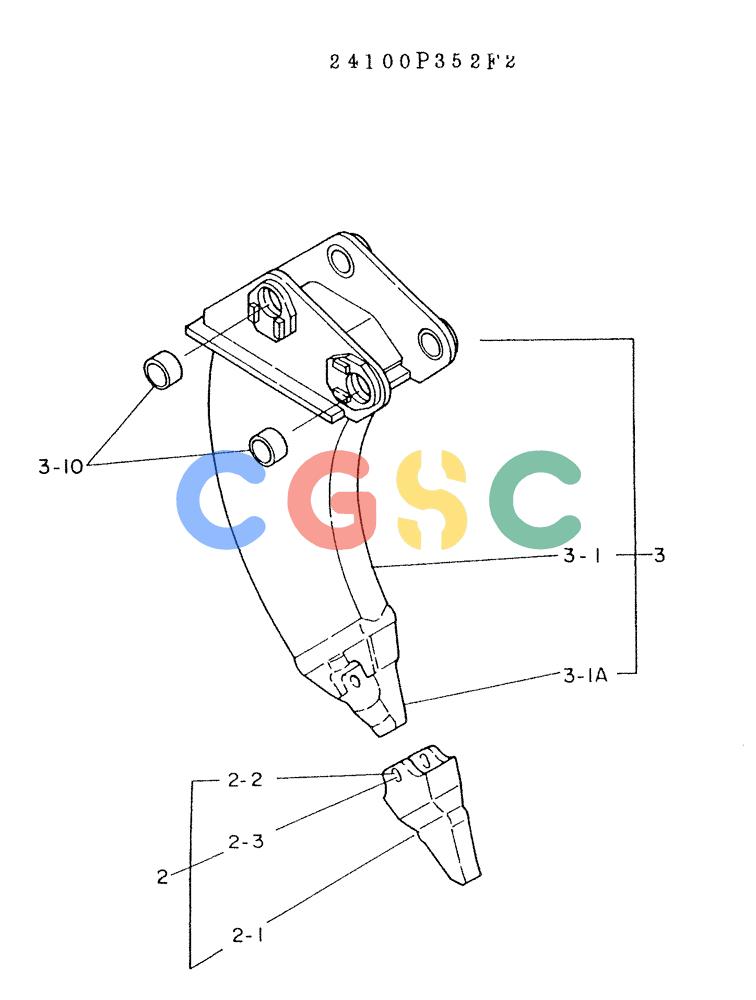

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P352F2 | [1] | RIPPER ASSY, CONSISTS OF REF. 2 & 3 | |
| 2. | B12N0055F1 | [1] | TOOTH ASSY, CONSISTS OF REF. 2-1 TO 2-3 | |
| 2-1. | B12N0055S1 | [1] | POINT | KOBPOINT |
| 2-2. | B12N0055S2 | [1] | BUSHING | BUSHING |
| 2-3. | B12N0055S3 | [1] | PIN | PIN |
| 3. | 2412J279F1 | [1] | RIPPER, CONSISTS OF REF. 3-1 & 3-10 | |
| 3-1. | 2412J279 | [1] | RIPPER, INCL. REF 3-1A | |
| 3-1A. | B12N0054 | [1] | NOSE | |
| 3-10. | 2405T708 | [4] | BUSHING | |
