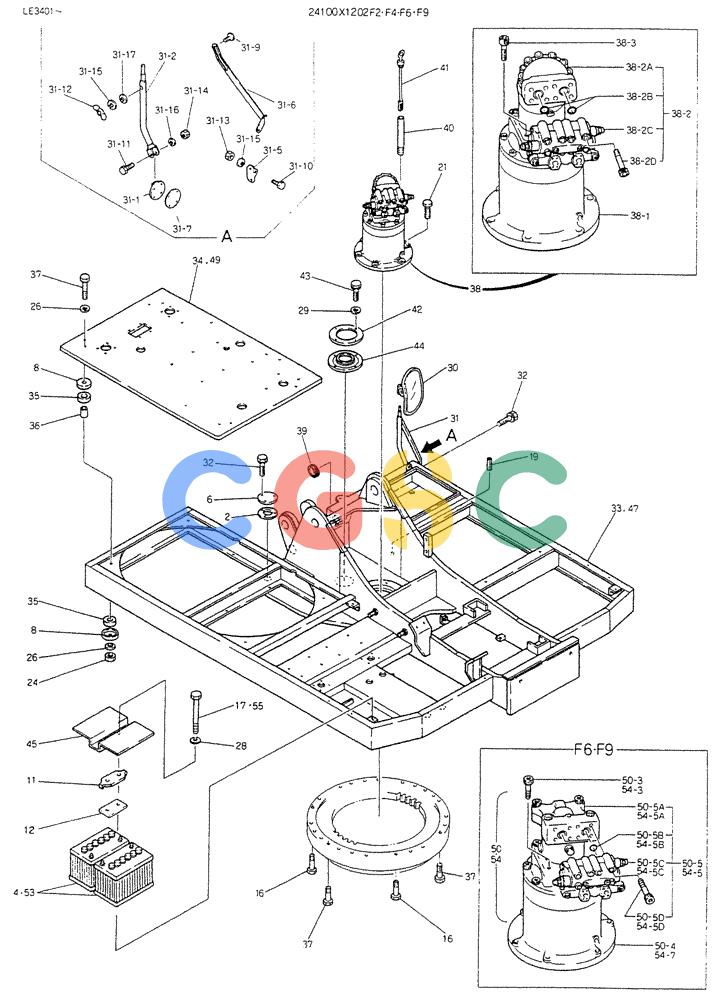

| . . | 24100X1202F2 | [1] | FRAME ASSY , UPP, Start Serial: LE3401 | |
| . . | 24100X1202F4 | [1] | FRAME ASSY , UPP, Start Serial: LE4162 | |
| . . | 24100X1202F6 | [1] | FRAME ASSY, UPP LE4637 to | |
| . . | 24100X1202F9 | [1] | FRAME ASSY, UPP, Start Serial: LE5087 | |
| 4. | 2484R103 | [2] | BATTERY, Start Serial: LE3401 | BATTERY, Start Serial: LE3401 |
| 6. | 2414T1755 | [1] | COVER | |
| 8. | 2414T1054 | [8] | COVER | KOB |
| 11. | 2418T3596 | [1] | PLATE | KOB, Start Serial: LE3401 |
| 12. | 2418T3598 | [1] | PLATE | KOB |
| 16. | 2420T3453D2 | [4] | CAPSCREW | KOBSCREW |
| 17. | R20T0084D2 | [2] | CAPSCREW | KOBSCREW M10x1.50x235mm, Start Serial: LE3401 |
| 17. | R20T0084D19 | [2] | SCREW | KOBM10x1.50x230mm, Start Serial: LE4547 |
| 19. | ZS83C16040 | [1] | SETSCREW | |
| 21. | ZS13C16050 | [6] | SCREW | KOBM16x2.0x50mm |
| 24. | ZN32C16015 | [4] | NUT | KOBM16x2.0mm |
| 26. | R16T0152D2 | [8] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 28. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 29. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | 2456Z253 | [1] | MIRROR | KOB |
| 31. | 2416U19F1 | [1] | STAY | KOB |
| 31-1. | 2416U15S1 | [1] | BRACKET | BRACKET |
| 31-2. | 2416U19S2 | [1] | STAY | KOB |
| 31-5. | 2416U15S5 | [1] | SUPPORT | KOB |
| 31-6. | 2416U19S6 | [1] | STAY | KOB |
| 31-7. | 2416U15S7 | [1] | PACKING | |
| 31-9. | ZS31C06035 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 35mm | KOBM06x1.0x35mm |
| 31-10. | ZS16C06014 | [1] | SCREW | KOBM06x1.0x16mm Superseded by part number: ZS18C06014 |
| 31-11. | ZS16C10050 | [1] | CAPSCREW M10x1.50x50mm | CAPSCREW M10x1.50x50mm |
| 31-12. | 2416U15S12 | [1] | NUT, WING | NUT, WING |
| 31-13. | ZN16C06005 | [1] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 31-14. | ZN16C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 31-15. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 31-16. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 31-17. | ZW16X06000 | [1] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 32. | ZM11C06014 | [9] | SCREW | KOB |
| 33. | 2422X633 | [1] | FRAME, UPP, Start Serial: LE3401 | |
| 34. | 2418N1983 | [1] | PLATE, FLOOR, Start Serial: LE3401 | |
| 35. | 2416Z253 | [8] | RUBBER SLEEVE | KOB |
| 36. | 2418T9226D1 | [4] | SPACER | KOB |
| 37. | ZS13C16090 | [23] | CAPSCREW | KOBSCREW M16x2.0x90mm |
| 38. | 24100J4291F1 | [1] | MOTOR ASSY, SWING, Start Serial: LE4636 | |
| 38-1. | 24100J4290F1 | [1] | REDUCTION UNIT REDUCTION UNIT (SEE FIG 01-006) | REDUCTION UNIT REDUCTION UNIT (SEE FIG 01-006) |
| 38-2. | 2441U312F2 | [1] | MOTOR, HYOR | |
| 38-2A. | 2441U250F1 | [1] | MOTOR HYDR | MOTOR HYDR |
| 38-2B. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 38-2C. | 2436U565F2 | [1] | VALVE | KOBBRAKE |
| 38-2D. | ZS23C12105 | [8] | SCREW,Hex Socket Head, M12 x 105mm | KOBM12x1.75x105mm |
| 38-3. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 39. | 2420T4256 | [1] | GROMMET | |
| 40. | 2420T4039D6 | [1] | PIPE, Start Serial: LE3401 | PIPE, Start Serial: LE3401 |
| 40. | 2420T4039C2D6 | [1] | PIPE, Start Serial: LE4637 | PIPE, Start Serial: LE4637 |
| 41. | 2420R502D1 | [1] | DIPSTICK | KOB |
| 42. | 2414T1919 | [1] | CATALOG COVER | KOB |
| 43. | ZM11C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Lockwasher) |
| 44. | 2414Z22002 | [1] | COVER, DUST | |
| 45. | 2414T1961 | [1] | COVER | COVER |
| 47. | 2422X645 | [1] | FRAME, UPP, Start Serial: LE4162 | |
| 49. | 2422N699 | [1] | PLATE, FLOOR, Start Serial: LE4162 | |
| 50. | 24100J6730F2 | [1] | MOTOR ASSY, SWING, Start Serial: LE4637 | |
| 50-3. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 50-4. | 24100J6731F2 | [1] | REDUCTION UNIT | |
| 50-5. | 2441U504F3 | [1] | MOTOR, HYDR | MOTOR, HYDR |
| 50-5A. | 2441U509F2 | [1] | MOTOR HYDR | |
| 50-5B. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 50-5C. | 2436U565F4 | [1] | CAPSCREW | |
| 50-5D. | ZS23C12105 | [8] | SCREW,Hex Socket Head, M12 x 105mm | KOBM12x1.75x105mm |
| 52. | 2416Z446 | [1] | PACKING, Start Serial: LE4631 | |
| 53. | 2484R163 | [2] | BATTERY, Start Serial: LE5009 | |
| 54. | 24100J6730F4 | [1] | MOTOR ASSY, SWING, Start Serial: LE5087 | MOTOR ASSY, SWING, Start Serial: LE5087 |
| 54-3. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 54-5. | 2441U504F3 | [1] | MOTOR, HYDR | MOTOR, HYDR |
| 54-5A. | 2441U509F2 | [1] | MOTOR HYDR | |
| 54-5B. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 54-5C. | 2436U565F4 | [1] | VALVE BRAKE | |
| 54-5D. | ZS23C12105 | [8] | SCREW,Hex Socket Head, M12 x 105mm | KOBM12x1.75x105mm |
| 54-7. | 24100J6731F4 | [1] | HYDRAULIC MOTOR | KOB(SEE FIG 01-007) |
| 55. | R20T0084D16 | [2] | SCREW | KOBM10x1.50x220mm, Start Serial: LE4963 |
