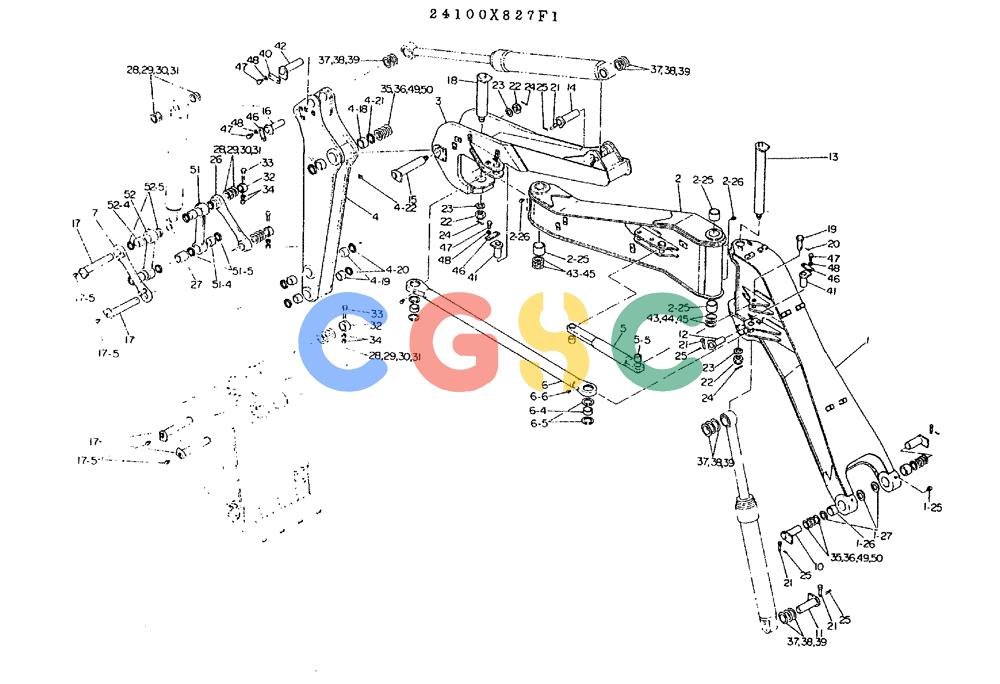

| . . | 24100X827F1 | [1] | ATT SUB ASSY, GUTTER, CONSISTS OF REF. 1 TO 52 | |
| 1. | 2411J1068F1 | [1] | BOOM, RE., CONSISTS OF REF. 1-25 TO 1-27 | |
| 1-25. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 1-26. | 2405T593C2 | [2] | BUSHING | KOB |
| 1-27. | 2445R138D3 | [4] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 2. | 2411J1069F1 | [1] | BOOM, FR, CONSISTS OF REF. 2-25 I 2-26 | |
| 2-25. | 2405T588 | [4] | BUSHING | KOBBUSHING Superseded by part number: 2405T588C2 |
| 2-26. | ZG91S02000 | [4] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 3. | 2411J1070 | [1] | BOOM, UPP | |
| 4. | 2411J1033F1 | [1] | ARM, CONSISTS OF REF. 4-18 TO 4-22 | |
| 4-18. | 2405T595C2 | [2] | BUSHING | KOB |
| 4-19. | 2405T594C2 | [4] | BUSHING | KOB |
| 4-20. | 2445R138D1 | [4] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 4-21. | 2445R138D3 | [2] | SEAL,60mm ID x 75mm OD x 4mm Thk | KOBDust -- ID 60 x OD 75 x Th 4mm |
| 4-22. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 5. | 2416N1622F1 | [1] | STAY, CONSISTS OF REF. 5-5 | |
| 5-5. | 2405T670 | [2] | BUSHING | KOBBUSHING |
| 6. | 2416N1623F1 | [1] | STAY, CONSISTS OF REF. 6-4 TO 6-6 | |
| 6-4. | 2405P188D5 | [2] | BUSHING | |
| 6-5. | ZR26X07500 | [4] | RING | KOBRetaining -- ID 75 x OD 79.5 x Th 2.5mm |
| 6-6. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 7. | 2406P1590D2 | [1] | LINK, IDLER | |
| 10. | 2419P738 | [2] | PIN | KOBPIN |
| 11. | 2419P769D2 | [1] | PIN | KOBPIN Superseded by part number: 2419P1222 |
| 12. | 2419P769D1 | [1] | PIN | KOBPIN Superseded by part number: 2419P1306 |
| 13. | 2419P795 | [1] | PIN | KOBPIN |
| 14. | 2419P739D2 | [1] | PIN | KOBPIN |
| 15. | 2419P740 | [1] | PIN | |
| 16. | 2419P742D2 | [1] | PIN | |
| 17. | 2419P960F1 | [4] | PIN | KOBPIN CONSISTS OF REF. 17-5 |
| 17-5. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 18. | 2419P795D4 | [1] | PIN | |
| 19. | 2419T2260 | [2] | PIN | |
| 20. | 2419T2261 | [2] | PIN | |
| 21. | 2419T1189 | [5] | PIN | |
| 22. | R20T0022 | [3] | NUT | KOBNUT NUT |
| 23. | ZW11X36000 | [3] | WASHER | |
| 21. | ZP15D06065 | [3] | BASE PLATE | BASE PLATE |
| 25. | ZP15D05035 | [5] | COTTER PIN | KOBPIN Cotter Superseded by part number: ZP15D05080 |
| 26. | 2406P1590D1 | [1] | LINK, IDLER | |
| 27. | 2416T3131 | [1] | SPACER | KOBSPACER |
| 28. | 4018T183D1 | [4] | SHIM,52mm ID x 80mm OD x 2.3mm Thk | KOBSHIM, 2.3 Superseded by part number: B16T0442D24 |
| 29. | 4018T183D2 | [4] | SHIM,52mm ID x 80mm OD x 1.2mm Thk | KOBSHIM, 1.2 Superseded by part number: B16T0442D25 |
| 30. | 4018T183D3 | [4] | SHIM | KOBSPACER Superseded by part number: B16T0442D41 |
| 31. | 4018T183D4 | [4] | SHIM | KOBSPACER |
| 32. | 2418T3986 | [4] | COLLAR | KOBCOLLAR |
| 33. | ZS12C12085 | [4] | SCREW,Hex, M12 x 85mm | KOB Superseded by part number: ZS13C12085 |
| 34. | ZN12C12010 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 35. | 2420T2571D1 | [4] | SHIM,62mm ID x 120mm OD x 3.2mm Thk | KOBSHIM, 3.2 ID 62 x OD 120 x Th 3.2mm |
| 36. | 2420T2571D2 | [4] | SHIM,62mm ID x 120mm OD x 4.5mm Thk | KOBSHIM |
| 37. | 2418T4038D1 | [8] | SHIM | KOB |
| 38. | 2418T1038D2 | [8] | SHIM, 1,2 | |
| 39. | 2418T1038D5 | [8] | SHIM, 3.2 | |
| 40. | 2418T1815 | [1] | PLATE | KOBSPACER PLATE |
| 41. | 2419P742D4 | [2] | PIN | |
| 42. | 2419P739D5 | [1] | PIN | |
| 43. | B16T0442D1 | [2] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 44. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 45. | B16T0442D5 | [2] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 46. | 2418T4815D2 | [3] | PLATE | |
| 47. | ZS11C08016 | [8] | CAPSCREW,Hex, M8 x 16mm, Cl 4.8 | KOBSCREW M08x1.25x16mm Superseded by part number: ZS18C08016 |
| 48. | ZW22X08000 | [8] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 49. | 4018T98D1 | [4] | SHIM | KOB2.3 |
| 50. | 4018T98D2 | [4] | SHIM | KOB |
| 51. | 2406P1667D1F1 | [1] | LINK BUCKET, CONSISTS OF REF. 51-4,51-5 | |
| 51-4. | 2405T596C2 | [3] | BUSHING | KOB |
| 51-5. | 2445R138D1 | [4] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 52. | 2406P1667D2F1 | [1] | LINK BUCKET, CONSISTS OF REF. 51-4,51-5 | |
| 52-4. | 2405T596C2 | [2] | BUSHING | KOB |
| 52-5. | 2445R138D1 | [4] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
