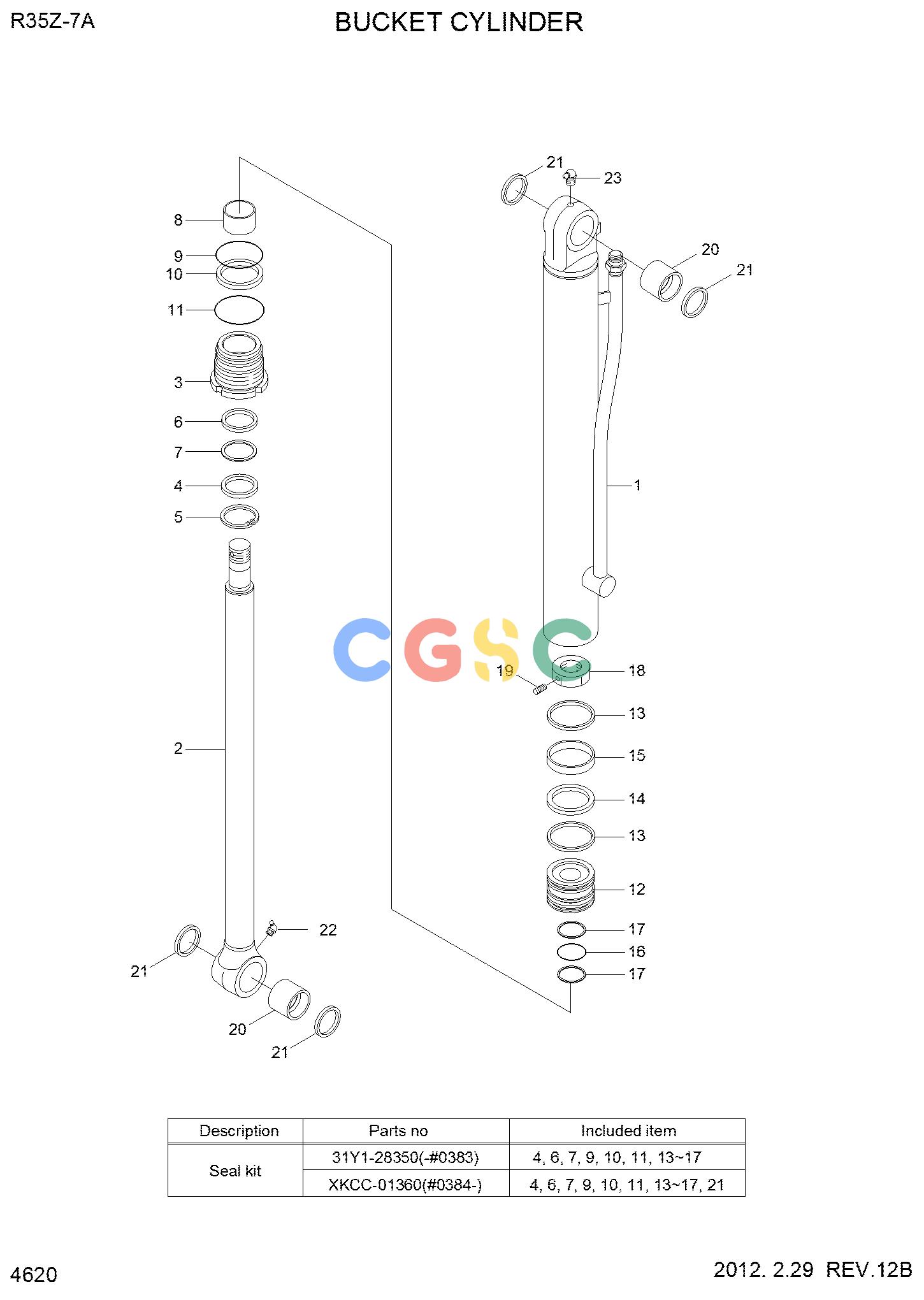

现代零件查询R35Z-7 BUCKET CYLINDEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31MH-50130
|
[1] |
BUCKET CYL ASSY
|
|
| . |
31MH-50131
|
[1] |
BUCKET CYL ASSY
|
|
| 1. |
XKCC-00015
|
[1] |
TUBE ASSY
|
|
| 1. |
XKCC-01361
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCC-00016
|
[1] |
ROD ASSY
|
|
| 2. |
XKCC-01362
|
[1] |
ROD ASSY
|
|
| 3. |
XKCC-00017
|
[1] |
GLAND
|
|
| K4. |
XKCC-00687
|
[1] |
DUST WIPER
|
|
| K4. |
XKCC-00665
|
[1] |
DUST WIPER
|
|
| 5. |
XKCC-00688
|
[1] |
SNAP RING
|
|
| 5. |
XKCC-00157
|
[1] |
RETAIN RING
|
|
| K6. |
XKCC-00689
|
[1] |
ROD SEAL
|
|
| K6. |
XKCC-00663
|
[1] |
ROD SEAL
|
|
| K7. |
XKCC-00690
|
[1] |
BACK UP RING
|
|
| K7. |
XKCC-00159
|
[1] |
BACK UP RING
|
|
| 8. |
XKCC-00691
|
[1] |
DU-BUSH
|
|
| 8. |
5516-04530
|
[1] |
DU-BUSH
|
|
| K9. |
S632-065004
|
[1] |
O-RING
|
|
| K9. |
XKCC-00122
|
[1] |
O-RING
|
|
| K10. |
S642-065003
|
[1] |
BACK UP RING
|
|
| K10. |
XKCC-00275
|
[1] |
BACK UP RING
|
|
| K11. |
S632-070004
|
[1] |
O-RING
|
|
| K11. |
XKCC-00177
|
[1] |
O-RING
|
|
| 12. |
XKCC-00018
|
[1] |
PISTON
|
|
| K13. |
Y440-080000
|
[2] |
DUST RING
|
|
| K13. |
XKCC-01363
|
[2] |
DUST RING
|
|
| K14. |
Y410-070000
|
[1] |
PISTON SEAL
|
|
| K14. |
XKCC-00746
|
[1] |
PISTON SEAL
|
|
| K15. |
Y300-070000
|
[1] |
WEAR RING
|
|
| K15. |
XKCC-01364
|
[1] |
WEAR RING
|
|
| K16. |
S632-030004
|
[1] |
O-RING
|
|
| K16. |
XKCC-00360
|
[1] |
O-RING
|
|
| K17. |
S642-030003
|
[2] |
BACK UP RING
|
|
| K17. |
XKCC-00455
|
[2] |
BACK UP RING
|
|
| 18. |
XKCC-00019
|
[1] |
NUT-LOCK
|
|
| 19. |
XKCC-00702
|
[1] |
SET SCREW
|
|
| 19. |
XKCC-00914
|
[1] |
SET SCREW
|
|
| 20. |
61MH-15060
|
[2] |
BUSHING-OILLESS
|
|
| 21. |
Y010-040050
|
[4] |
DUST SEAL
|
|
| K21. |
XKCC-00134
|
[4] |
DUST SEAL
|
|
| 22. |
XKCC-00706
|
[1] |
GREASE NIPPLE
|
|
| 22. |
XKCC-00341
|
[1] |
GREASE NIPPLE
|
|
| 23. |
S653-810002
|
[1] |
GREASE NIPPLE
|
|
| 23. |
XKCC-00824
|
[1] |
GREASE NIPPLE
|
|
| K. |
31Y1-28350
|
[1] |
SEAL KIT
|
|
| K. |
XKCC-01360
|
[1] |
SEAL KIT
|
|
