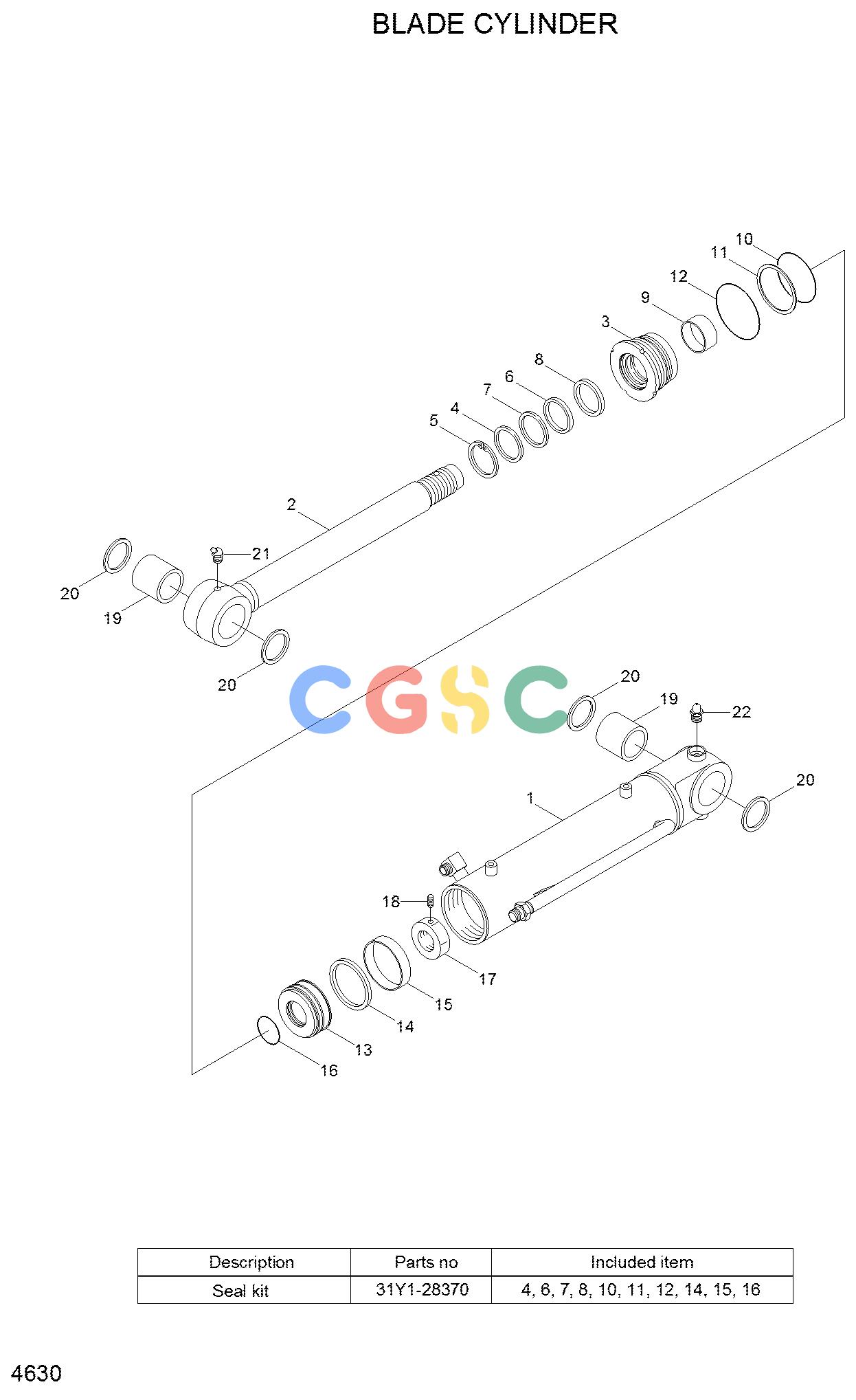

现代零件查询R35Z-7 BLADE CYLINDEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31MH-40041
|
[1] |
BLADE CYLINDER ASSY
|
|
| 1. |
XKCC-00024
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCC-00025
|
[1] |
ROD ASSY
|
|
| 3. |
XKCC-00026
|
[1] |
GLAND
|
|
| K4. |
Y110-050011
|
[1] |
WIPER-DUST
|
|
| 5. |
Y190-062000
|
[1] |
RING-SNAP
|
|
| K6. |
Y220-050011
|
[1] |
SEAL-ROD
|
|
| K7. |
Y180-050020
|
[1] |
RING-BACK UP
|
|
| K8. |
Y240-050013
|
[1] |
RING-BUFFER
|
|
| 9. |
S731-050030
|
[1] |
BUSHING-DU
|
|
| K10. |
S632-090004
|
[1] |
O-RING
|
|
| K11. |
S642-090003
|
[1] |
RING-BACK UP
|
|
| K12. |
S632-095004
|
[1] |
O-RING
|
|
| 13. |
XKCC-00027
|
[1] |
PISTON
|
|
| K14. |
Y450-095000
|
[1] |
SEAL-PISTON
|
|
| K15. |
Y300-095100
|
[1] |
RING-WEAR
|
|
| K16. |
S632-050004
|
[1] |
O-RING
|
|
| 17. |
XKCC-00028
|
[1] |
NUT-LOCK
|
|
| 18. |
S114-080164
|
[1] |
SCREW-SET
|
|
| 19. |
31YC-12010
|
[2] |
BUSHING-PIN
|
|
| 20. |
Y010-045055
|
[4] |
SEAL-DUST
|
|
| 21. |
S652-810002
|
[1] |
NIPPLE-GREASE
|
|
| 22. |
S651-810002
|
[1] |
NIPPLE-GREASE
|
|
| K. |
31Y1-28370
|
[1] |
SEAL KIT
|
|
