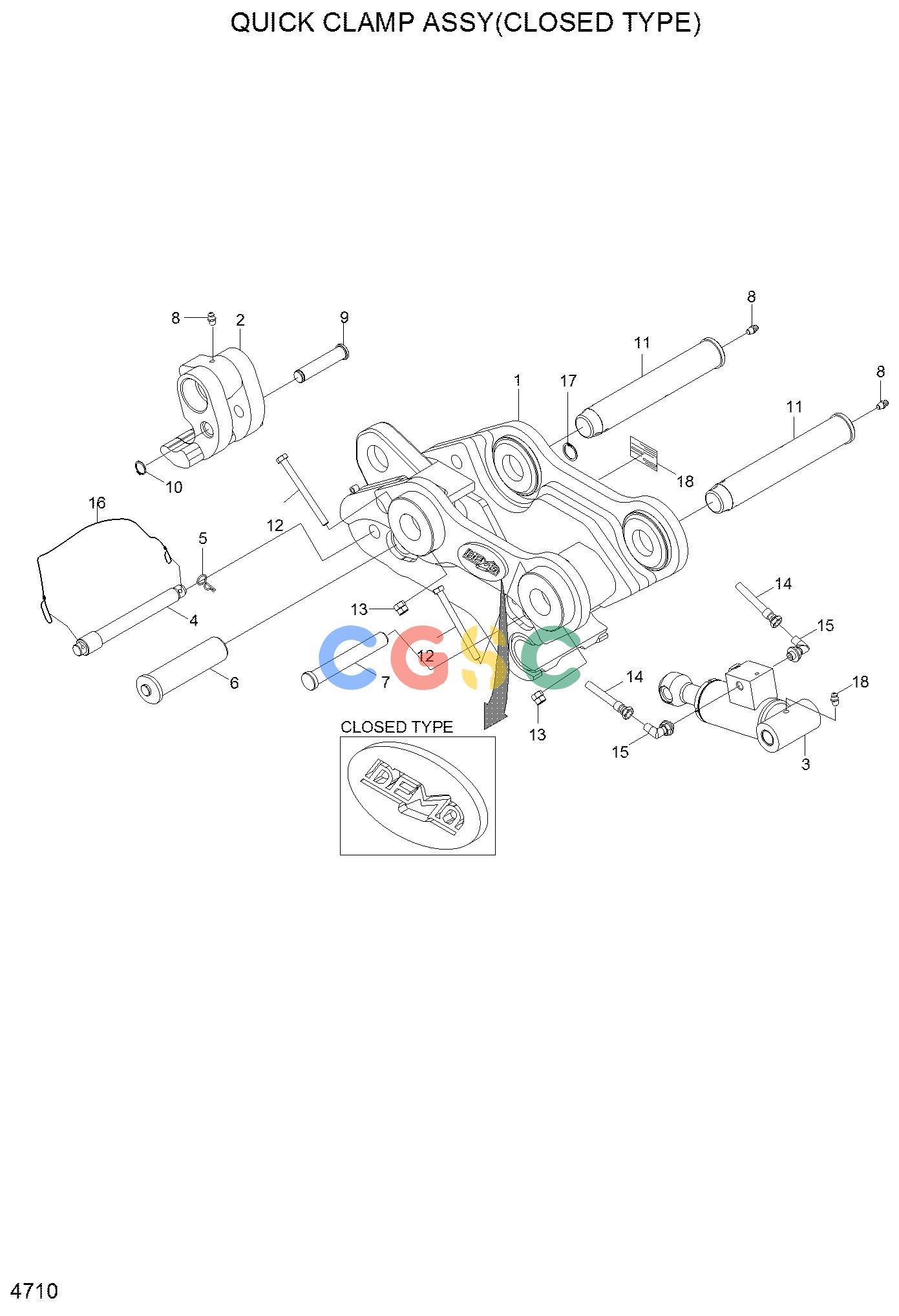

现代零件查询R35Z-7 QUICK CLAMP ASSY(CLOSED TYPE)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31MH-90210
|
[1] |
QUICK CLAMP ASSY
|
|
| 1. |
XKBN-00353
|
[1] |
BODY ASSY
|
|
| 2. |
XKBN-00352
|
[1] |
HITCH ASS'Y
|
|
| 3. |
XKBN-00293
|
[1] |
CYLINDER ASSY
|
|
| 4. |
XKBN-00294
|
[1] |
PIN SAFETY
|
|
| 5. |
XKBN-00295
|
[1] |
PIN-SNAP
|
|
| 6. |
XKBN-00296
|
[1] |
PIN-HITCH
|
|
| 7. |
XKBN-00297
|
[1] |
PIN-FRAME
|
|
| 8. |
XKBN-00009
|
[3] |
NIPPLE-GREASE
|
|
| 9. |
XKBN-00298
|
[1] |
PIN-CYLINDER
|
|
| 10. |
XKBN-00050
|
[2] |
RING-SNAP
|
|
| 11. |
XKBN-00299
|
[2] |
PIN-BRACKET
|
|
| 12. |
XKBN-00348
|
[2] |
BOLT-HEX
|
|
| 13. |
XKBN-00064
|
[4] |
NUT-HEX
|
|
| 14. |
XKBN-00290
|
[2] |
HOSE-HYD
|
|
| 15. |
XKBN-00056
|
[2] |
ELBOW 90
|
|
| 16. |
XKBN-00302
|
[1] |
WIRE ASSY
|
|
| 17. |
XKBN-00303
|
[2] |
RING-SNAP
|
|
| 18. |
XKBN-00305
|
[1] |
ID PLATE
|
|
