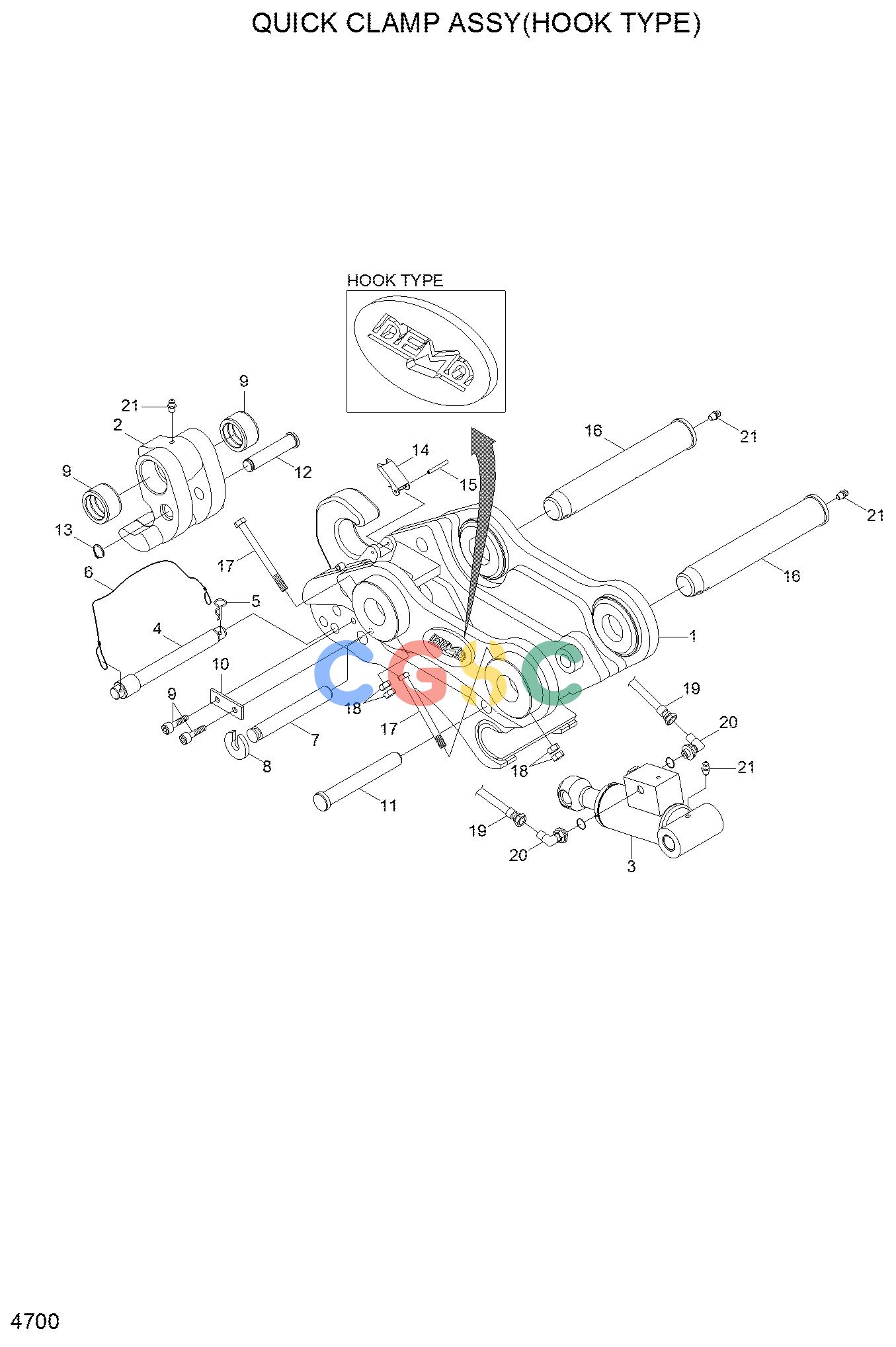

现代零件查询R35Z-7 QUICK CLAMP ASSY(HOOK TYPE)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31MH-90010
|
[1] |
Q/CLAMP ASSY(HOOK)
|
|
| 1. |
XKBN-00274
|
[1] |
BODY
|
|
| 2. |
XKBN-00275
|
[1] |
HITCH
|
|
| 3. |
XKBN-00276
|
[1] |
CYLINDER ASSY
|
|
| 4. |
XKBN-00277
|
[1] |
PIN-SAFETY
|
|
| 5. |
XKBN-00278
|
[1] |
PIN-SNAP
|
|
| 6. |
XKBN-00279
|
[1] |
WIRE ASSY
|
|
| 7. |
XKBN-00280
|
[1] |
PIN-HITCH
|
|
| 8. |
XKBN-00281
|
[1] |
RING-SNAP
|
|
| 9. |
XKBN-00282
|
[2] |
BOLT-SOCKET
|
|
| 10. |
XKBN-00283
|
[1] |
HOLDER-HITCH
|
|
| 11. |
XKBN-00284
|
[1] |
PIN-FRAME
|
|
| 12. |
XKBN-00285
|
[1] |
PIN-CYLINDER
|
|
| 13. |
XKBN-00050
|
[1] |
RING-SNAP
|
|
| 14. |
XKBN-00286
|
[1] |
LATCH-W/SPRING
|
|
| 15. |
XKBN-00287
|
[1] |
PIN-SPRING
|
|
| 16. |
XKBN-00288
|
[2] |
PIN-BRACKET
|
|
| 17. |
XKBN-00289
|
[2] |
BOLT-HEX
|
|
| 18. |
XKBN-00064
|
[4] |
NUT-HEX
|
|
| 19. |
XKBN-00290
|
[2] |
HOSE-HYD
|
|
| 20. |
XKBN-00056
|
[2] |
ELBOW 90
|
|
| 21. |
XKBN-00009
|
[4] |
NIPPLE-GREASE
|
|
