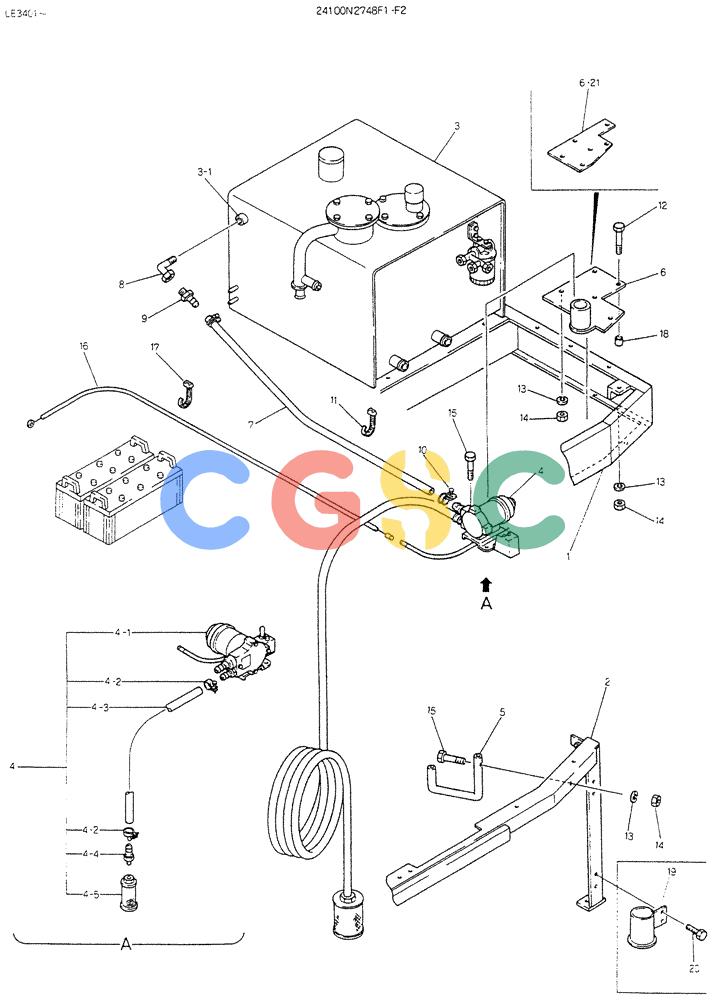

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (01-011) - PUMP ASSY, FUEL (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
643 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2748F1 | [1] | PUMP ASSY, FUEL | |
| . . | 24100N2748F2 | [1] | PUMP ASSY, FUEL | |
| 1. | 2422P571 | [1] | FRAME | |
| 2. | 2414P2876 | [1] | GUARD | |
| 3. | 2427P1800 | [1] | TANK | |
| 3-1. | 2444T7003 | [1] | COUPLING, PIPE | |
| 4. | 2441Z149 | [1] | PUMP/ OIL | |
| 4. | 24100R156F1 | [1] | PUMP ASSY, HYD OIL | PUMP ASSY, HYD OIL |
| 4-1. | 2437U164 | [1] | PUMP, FUEL | PUMP, FUEL |
| 4-2. | ZC15X02600 | [2] | CLAMP | KOB |
| 4-3. | 2444Z2252D1 | [1] | HOSE | KOB |
| 4-4. | 2444Z1233D7 | [1] | ELEC CONNECTOR | KOB |
| 4-5. | 2446Z143 | [1] | STRAINER ASSY. | KOB |
| 5. | 2418T10364 | [1] | PIPE | |
| 6. | 2416T10834 | [1] | PLATE | |
| 6. | 2416T10966 | [1] | BRACKET | |
| 7. | 2444Z2201D3 | [1] | HOSE | |
| 8. | 2444Z2130D1 | [1] | ELBOW | ELBOW |
| 9. | 2444Z2129D1 | [1] | NIPPLE | NIPPLE |
| 10. | ZC15X02600 | [3] | CLAMP | KOB |
| 11. | 2432Z290D4 | [2] | CLIP Wire Ties -- 365mm Long | CLIP Wire Ties -- 365mm Long |
| 12. | ZS16C08045 | [3] | SCREW | KOBM08x1.25x45mm Superseded by part number: 77276420, ZS18C08045 |
| 13. | ZW22X08000 | [7] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 14. | ZN16C08007 | [7] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 15. | ZS16C08035 | [4] | CAPSCREW | CAPSCREW |
| 16. | 2479Z848 | [1] | HARNESS | HARNESS |
| 17. | 2432Z290D3 | [5] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 18. | 2418T10285 | [3] | PIPE | |
| 19. | 2416T11035 | [1] | BRACKET | |
| 20. | ZM11C10030 | [2] | SCREW | KOBM10x1.50x30mm (Incls. Lockwasher) |
| 21. | 2416T12964 | [1] | BRACKET | |
