神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (01-012) - FILTER ASSY (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
789 次

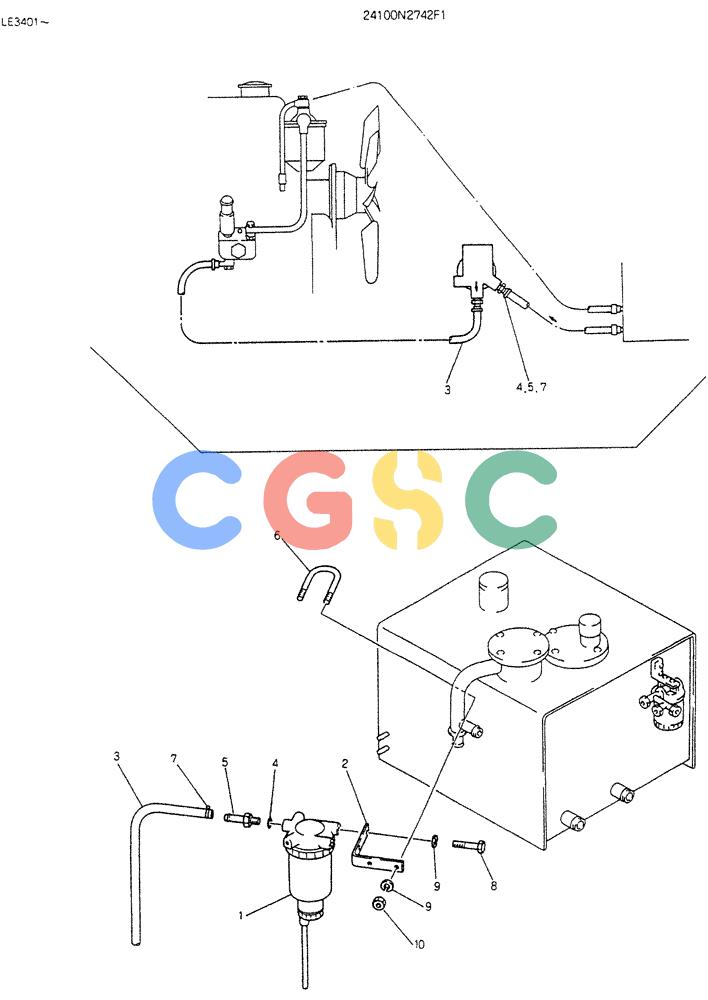

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2742F1 | [1] | FILTER ASSY | |
| 1. | 2446Z192 | [1] | FILTER | |
| 2. | 2416T10843 | [1] | BRACKET | |
| 3. | R18P0136D2 | [1] | HOSE | HOSE |
| 4. | 2418Z691 | [2] | PACKING | PACKING |
| 5. | 244422210 | [2] | CONNECTOR | |
| 6. | 2420T4375 | [1] | U-BOLT | |
| 7. | ZC15X01500 | [2] | CLIP | KOB |
| 8. | ZS16C08016 | [2] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 9. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 10. | ZN11C08007 | [2] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
