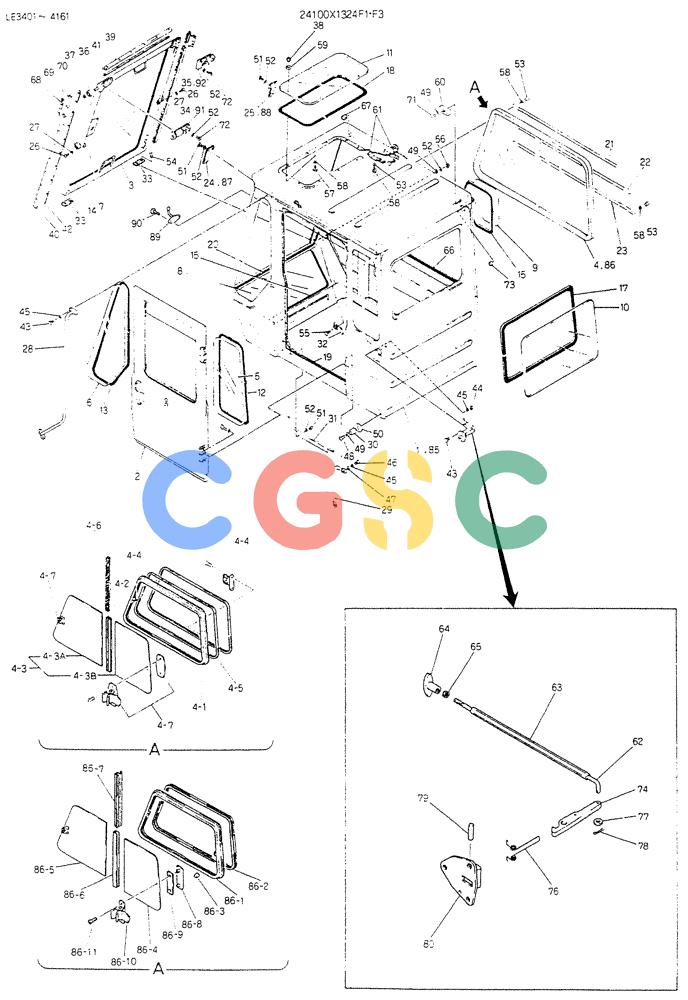

| . . | 24100X1324F1 | [1] | CAB ASSY, Serial Range: LE340-LE3555 | |
| . . | 24100X1324F3 | [1] | CAB ASSY, Start Serial: LE3556 | |
| 1. | 2427X357 | [1] | CAB, Serial Range: LE3401-LE3555 | |
| 2. | 24100J2500F1 | [1] | DOOR ASSY SEE FIG.02-011 | DOOR ASSY SEE FIG.02-011 |
| 3. | 2427J1253 | [1] | FRAME, WINDOW | FRAME, WINDOW |
| 4. | 2427P1383 | [1] | WINDOW | KOB, Serial Range: LE340l-LE3555 |
| 4-1. | 2427T553 | [1] | SASH | |
| 4-2. | 2427T554 | [1] | GUIDE | GUIDE |
| 4-3. | 2427P1439 | [1] | GLASS | KOB |
| 4-3A. | 2427P1439-1 | [1] | GLASS | KOB |
| 4-3B. | 2427P1439-2 | [1] | GLASS | KOB |
| 4-4. | 2427T555 | [2] | LOCK | LOCK |
| 4-5. | 2427T552 | [2] | CHANNEL | |
| 4-6. | 2427T557 | [1] | STRIP, WEATHER | STRIP, WEATHER |
| 4-7. | 2427P1440 | [2] | LOCK | KOB |
| 5. | 2427T514 | [1] | GLASS | GLASS |
| 6. | 2427T512 | [1] | GLASS | GLASS |
| 7. | 2427T784 | [1] | GLASS | KOB |
| 8. | 2427T968D2 | [1] | GLASS | KOB |
| 9. | 2427T511 | [1] | GLASS | GLASS |
| 10. | 2427T515 | [1] | GLASS | GLASS |
| 11. | 2427T709 | [1] | GLASS | KOBGLASS |
| 12. | R27T0006D43 | [1] | RUBBER | RUBBER |
| 13. | R27T0006D36 | [1] | RUBBER | KOB |
| 14. | R27T0006D1 | [1] | CHANNEL | KOB |
| 15. | R27T0006D27 | [2] | GROMMET | KOB |
| 17. | R27T0006D33 | [1] | GROMMET | KOB |
| 18. | 2427T526 | [1] | SEAT | KOB |
| 19. | 2416Z220D3 | [1] | RUBBER SLEEVE | KOBTRIM, SPONGE |
| 20. | 2416Z220D1 | [1] | SEAL | KOB |
| 21. | 2427P1790D1 | [1] | RAIL, HAND | RAIL, HAND |
| 22. | 2427P1790D2 | [1] | RAIL, HAND | RAIL, HAND |
| 23. | 2427P1790D3 | [1] | RAIL, HAND | RAIL, HAND |
| 24. | 2414P1757D1 | [1] | COVER, Serial Range: LE3401-LE3555 | |
| 25. | 2414P1757D2 | [1] | COVER, Serial Range: LE3401-LE3555 | |
| 24. | 2420Z934 | [2] | STOP | KOB |
| 27. | ZN11F10008 | [2] | NUT | KOB Superseded by part number: ZN18F10008 |
| 28. | 2427P1644 | [1] | RAIL, HAND | RAIL, HAND |
| 29. | 2427P1417 | [1] | RAIL, HAND | RAIL, HAND |
| 30. | 2416T6167 | [2] | RUBBER SLEEVE | KOB |
| 31. | 2416P4734 | [1] | BRACKET | |
| 32. | 2427P1395 | [2] | LATCH | KOBHOOK |
| 33. | 2416T6303 | [1] | RUBBER SLEEVE | KOB |
| 34. | 2427P1392F2 | [1] | LATCH, Serial Range: LE3401-LE3562 | LATCH, Serial Range: LE3401-LE3562 |
| 35. | 2427P1392F1 | [1] | LATCH, Serial Range: LE3401-LE3562 | LATCH, Serial Range: LE3401-LE3562 |
| 36. | 2427Z382 | [4] | ROLLER | KOB |
| 37. | ZR36X00800 | [4] | SNAP RING | KOBSNAP |
| 38. | 2420T3422 | [10] | NUT | NUT |
| 39. | 2416T7503 | [1] | BRACKET | KOB |
| 40. | 2416T7504 | [2] | BRACKET | BRACKET |
| 41. | 2421Z231D4 | [1] | BRUSH | BRUSH |
| 42. | 2421Z231D5 | [2] | BRUSH | BRUSH |
| 43. | ZS16C08020 | [7] | SCREW | KOBCAPSCREW M08x1.25x20mm Superseded by part number: ZS18C08020 |
| 44. | ZN16C08007 | [3] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 45. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 46. | ZS16C08016 | [2] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 47. | ZW16X08000 | [7] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 48. | ZS31C06040 | [2] | SCREW,Phillips Drive, Pan HD, M6 x 40mm | KOBM06x1.0x40mm |
| 49. | ZW16X06000 | [10] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 50. | 2418T6681 | [2] | PLATE | KOB |
| 51. | ZS16C06008 | [9] | CAPSCREW M06x1.0x08mm | CAPSCREW M06x1.0x08mm |
| 52. | ZW26X06000 | [13] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 53. | ZS31C05020 | [6] | SCREW,Phillips Drive, Pan HD, M5 x 20mm | KOBMACHINE SCREW |
| 54. | ZS41C06012 | [4] | MACHINE SCREW M06x1.0x12mm | MACHINE SCREW M06x1.0x12mm |
| 55. | ZS16C06012 | [4] | SCREW | KOBM06x1.0x12mm |
| 56. | ZN16C06005 | [4] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 57. | ZS31C05014 | [10] | SCREW,Phillips Drive, Pan HD, M5 x 14mm | KOBM05x0.8x14mm |
| 58. | ZW26X05000 | [10] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 59. | 2418T6080 | [10] | PACKING | PACKING |
| 60. | 2416T6170 | [2] | RUBBER | RUBBER |
| 61. | 2418T3991 | [2] | PLATE | KOB |
| 62. | 2406T894 | [1] | ROD | |
| 63. | ZX15K06010 | [1] | TUBE,NYLON | |
| 64. | 2406Z194 | [1] | GRIP | KOB |
| 65. | ZN16C05004 | [1] | NUT | KOBM05x0.8mm Superseded by part number: ZN18C05004 |
| 66. | 2416Z720D4 | [1] | TRIM,SPONGE | |
| 67. | 2405T757 | [2] | BUSHING | BUSHING |
| 68. | 2416T7505 | [2] | BRACKET | KOB |
| 69. | 2416T7506 | [2] | BRACKET | KOB |
| 70. | 2421Z231D6 | [1] | BRUSH | BRUSH |
| 71. | ZS31C06025 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 25mm | KOBM06x1.0x25mm |
| 72. | ZS23C06016 | [1] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm Superseded by part number: ZS28C06016 |
| 73. | 2405T768 | [1] | BUSHING | BUSHING |
| 74. | 2418T6441 | [1] | PLATE | KOB |
| 76. | B17P0004 | [1] | SPRING | KOB |
| 77. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 78. | ZP15X02018 | [1] | SPLIT PIN | |
| 79. | B19P0043D54 | [1] | PIN | KOBPIN Superseded by part number: ZP45X10045 |
| 80. | 2416P6185 | [1] | BRACKET | KOB |
| 85. | 2427X360 | [1] | CAB, Start Serial: LE3556 | |
| 86. | 24100P1031F1 | [1] | WINDOW | KOB, Start Serial: LE3556 |
| 86-1. | 24100P1031S1 | [1] | SASH | SASH |
| 86-2. | 24100P1031S2 | [1] | GUIDE | KOBSEAL |
| 86-3. | 24100P1031S3 | [1] | SPACER | SPACER |
| 86-4. | 2427R421 | [1] | GLASS | KOB |
| 86-5. | 2427R422 | [1] | GLASS | KOB |
| 86-6. | 24100P1031S4 | [1] | CHANNEL | KOB |
| 86-7. | 24100P1031S5 | [1] | SEAL | KOBDOOR |
| 86-8. | 24100P1031S6 | [1] | RETAINER | KOB |
| 86-9. | 24100P1031S7 | [1] | PACKING | PACKING |
| 86-10. | 24100P1031S8 | [1] | LOCK | KOB |
| 86-11. | 24100P1031S9 | [1] | SCREW | KOB |
| 87. | 2414P2873D1 | [1] | COVER, Start Serial: LE3556 | COVER, Start Serial: LE3556 |
| 88. | 2414P2873D2 | [1] | COVER | KOB, Start Serial: LE3556 |
| 89. | 2408T302 | [1] | HOOK, Start Serial: LE3556 | |
| 90. | ZS31C06016 | [1] | SCREW,Phillips Drive, Pan HD, M6 x 16mm | KOBM06x1.0x16mm, Start Serial: LE3556 |
| 91. | 24100P1062F2 | [1] | LATCH | KOB, Start Serial: LE3563 |
| 92. | 24100P1062F1 | [1] | LATCH | KOB, Start Serial: LE3563 |
