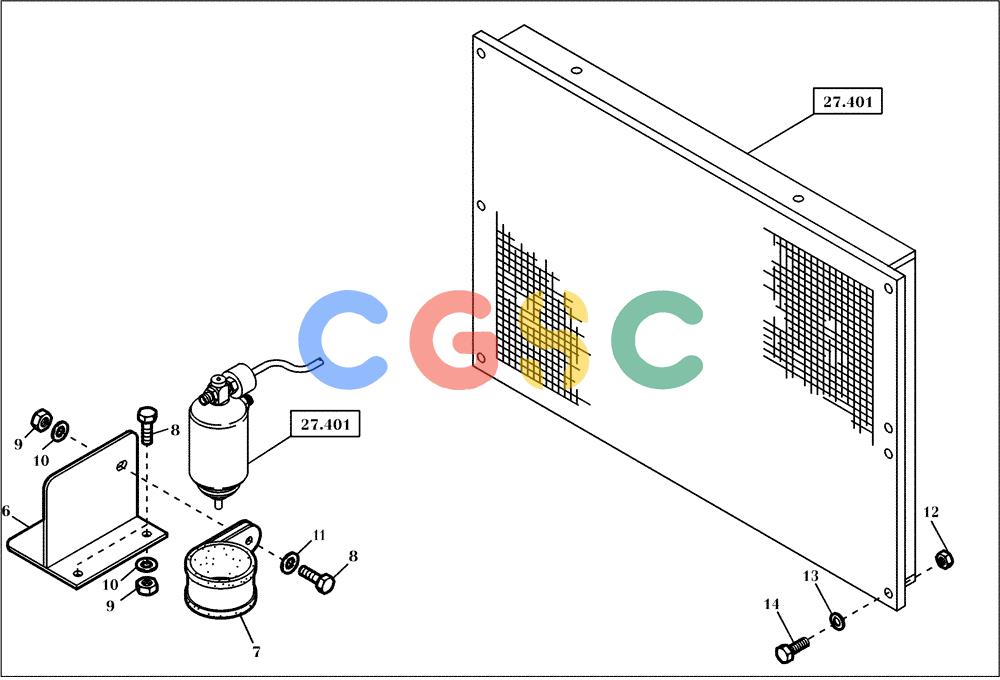

纽荷兰零件查询(EC350) - CRAWLER EXCAVATOR (2/00-) (27.420[001]) - LIQUEFIER INSTALL.MATERIAL (S/N 735003-UP) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
913 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 6. | 73187798 | [1] | BRACKET | BER Superseded by part number: 3015468 |
| 7. | 73177946 | [1] | CLAMP | BERPIPE CLAMP Superseded by part number: 8414152 |
| 8. | 73171058 | [3] | BOLT,Hex, M8 x 20, 8.8 | BERHEXAGON BOLT Superseded by part number: 120104 |
| 9. | 73170161 | [4] | NUT,M8, Cl 8 | BERHEXAGON NUT Superseded by part number: 9706690 |
| 10. | 73170160 | [5] | WASHER | BERDISK/WASHER Superseded by part number: 86625263 |
| 11. | 73170170 | [1] | WASHER | BERDISK/WASHER Superseded by part number: 62543 |
| 12. | 73171061 | [7] | LOCK NUT,M6 x 1, Cl 8 | BERHEXAGON NUT Superseded by part number: 353308 |
| 13. | 73186208 | [7] | WASHER | BERDISK/WASHER Superseded by part number: 2372234 |
| 14. | 73170696 | [7] | BOLT,Hex, M6 x 16, 8.8 | BERHEXAGON BOLT Superseded by part number: 86508568 |
