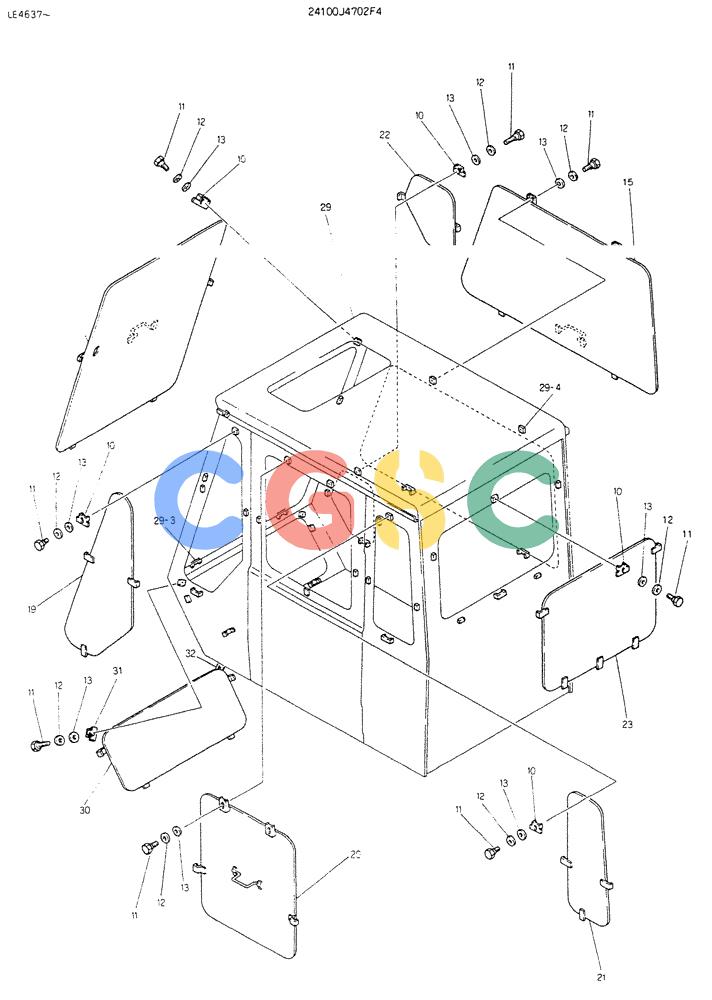

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (02-014) - GUARD ASSY, (FOR EXPORT) P/N 24100J4702F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
542 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4702F4 | [1] | GUARD ASSY GUARD ASSY | GUARD ASSY GUARD ASSY |
| 1. | 2414PJ165 | [1] | GUARD | |
| 10. | 2432T1439 | [6] | CLAMP | KOB |
| 11. | 2420T3968 | [12] | BOLT | KOB |
| 12. | R16T0137D3 | [12] | WASHER | KOBCone Disk Spring -- ID 10.2 x OD 20 x Th 0.8mm |
| 13. | 2418T5373C2 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 15. | 2414P2877 | [1] | GUARD | GUARD |
| 19. | 2414P2922 | [1] | GUARD | GUARD |
| 20. | 2414P2925 | [1] | GUARD | GUARD |
| 21. | 2414P2919 | [1] | GUARD | GUARD |
| 2?. | 2414P2921 | [1] | GUARD | GUARD |
| 23. | 2414P2924 | [1] | GUARD | KOB |
| 29. | 2427J1275 | [1] | CAB | |
| 29-3. | 2416T7030 | [10] | BRACKET | BRACKET |
| 29-4. | 2416T7974 | [12] | BLOCK, TAPPED | BLOCK, TAPPED |
| 30. | 2414P2962 | [1] | GUARD | KOB |
| 31. | 2432T1816D1 | [1] | CLAMP | KOB |
| 32. | 2432T1816D2 | [1] | CLAMP | KOB |
