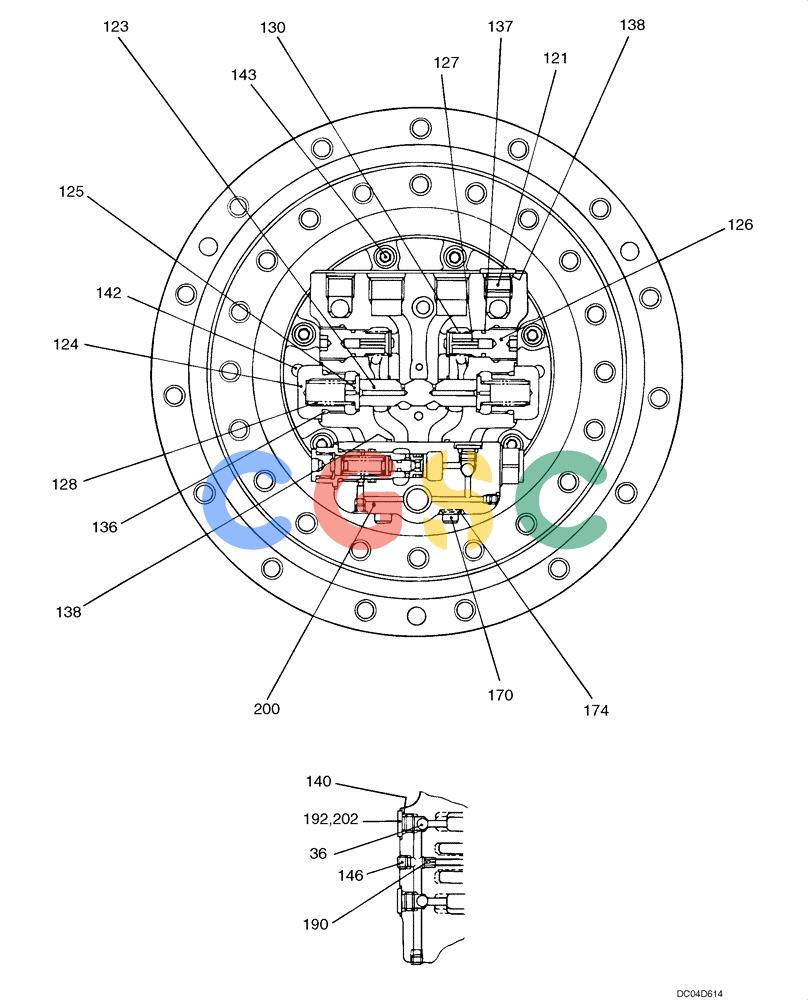

纽荷兰零件查询(EH130) - CRAWLER EXCAVATOR (3/04-) (06 -03[00]) - TRAVEL MOTOR UPER SECTION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
878 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 36. | 2441U815S26 | [3] | BALL | KOB |
| 121. | 2441U995S121 | [2] | PLUG | KOB |
| 123. | NSS | [1] | NOT SERVICED SEPARATELY | CONSPOOL |
| 124. | 2441U532S123 | [2] | PLUG | KOB |
| 125. | YW15V00005S125 | [2] | STOP | KOB |
| 126. | EN01W00009S153 | [2] | PLUG | KOB |
| 127. | 2441U532S126 | [2] | HYDRAULIC VALVE | KOB |
| 128. | 2441U532S128 | [2] | SPRING | KOB |
| 130. | 2441U532S127 | [2] | SPRING | KOB |
| 136. | ZD12P02600 | [2] | O-RING | KOB |
| 137. | ZD12P01600 | [2] | O-RING | KOB |
| 138. | ZD12P01800 | [4] | O-RING | KOB |
| 140. | ZD12P01100 | [2] | O-RING | KOB |
| 142. | YW15V00005S142 | [2] | PIN | KOB |
| 143. | ZS23C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOB Superseded by part number: ZS28C10030 |
| 146. | YX15V00003S146 | [1] | PLUG | KOB |
| 170. | ZS23C08065 | [4] | CAP,Hex Socket Head, M8 x 65mm | KOB |
| 174. | 2441U750S171 | [4] | LOCK WASHER | KOB |
| 192. | 2441U995S192 | [2] | PLUG | KOBFOR F1 ONLY |
| 200. | YX22V00002F1 | [1] | VALVE | KOB |
| 202. | YX15V00003S202 | [2] | PLATE | KOBFOR F2 AND F4 ONLY |
