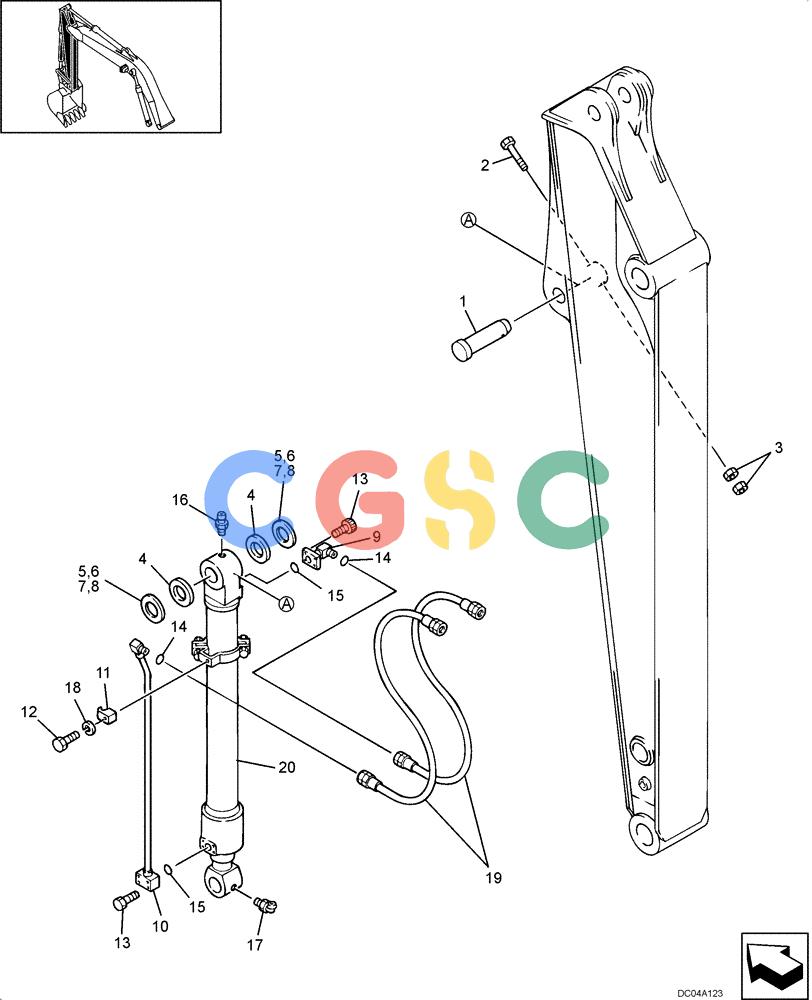

纽荷兰零件查询(EH130) - CRAWLER EXCAVATOR (3/04-) (08 -21[00]) - HYDRAULIC LINES - ARM 2.45M (8FT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
395 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY12B00005F1 | [1] | CYLINDER | KOB |
| 1. | LP12B01042P1 | [1] | PIN | KOB |
| 2. | HS18C12110G2 | [1] | CAPSCREW | KOBSCREW |
| 3. | ZN18C12010 | [2] | NUT | KOB |
| 4. | YW12B01025P1 | [2] | SHIM,62mm ID x 100mm OD x 3mm Thk | KOB |
| 5. | B16T0442D43 | [1] | SHIM,0.9mm Thk | KOB |
| 6. | B16T0442D56 | [1] | SHIM,0.5mm Thk | KOB |
| 7. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB |
| 8. | B16T0442D19 | [1] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOB |
| . . | LP43H00002F1 | [1] | LINE | KOB |
| 9. | LP43H01054P1 | [1] | TUBE | KOB |
| 10. | LP43H01047P2 | [1] | TUBE | KOB |
| 11. | YW43H01049P1 | [1] | CLAMP | KOB |
| 12. | ZS18C10050 | [1] | SCREW,Hex, M10 x 50mm | KOB |
| 13. | ZS28C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOB |
| 14. | ZD12A01600 | [2] | O-RING | KOB |
| 15. | ZD12P02600 | [2] | O-RING | KOB |
| 16. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| 17. | ZG91U02000 | [1] | LUBE NIPPLE | KOB |
| 18. | ZW26X10000 | [1] | LOCK WASHER | KOB |
| . . | YY43H00001F1 | [1] | LINE | KOB Superseded by part number: ZX50H10110 |
| 19. | ZX50H10110 | [2] | HOSE | KOB |
| 20. | YX01V00005F2 | [1] | CYLINDER ASSY. | KOBSee Figure 08 -67 Superseded by part number: YX01V00005F7 |
