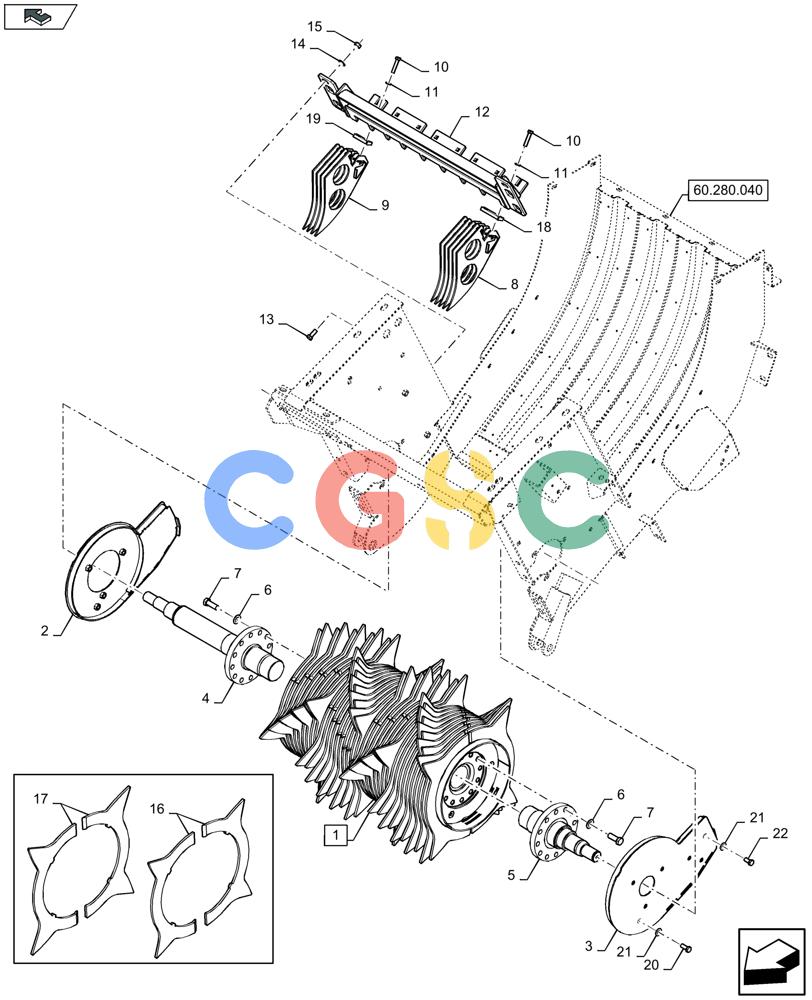

| 1. |
84217866
|
[1] |
ROTOR
|
ZED
Incl 16, 17, Serial Range: -C150
|
| 1. |
47925123
|
[1] |
ROTOR
|
ZED
Incl 16, 17, Start Serial: D151
|
| 1. |
84210462
|
[1] |
ROTOR
|
ZED
Incl 16, 17, Serial Range: -C150
|
| 1. |
47925143
|
[1] |
ROTOR
|
ZED
Incl 16, 17, Start Serial: D151
|
| 1. |
47996444
|
[1] |
ROTOR
|
ZED
Incl 16, 17
|
| 2. |
87388926
|
[1] |
FLANGE
|
ZED
, Serial Range: -C150
|
| 2. |
47819854
|
[1] |
FLANGE
|
ZED
, Start Serial: D151
|
| 3. |
87388925
|
[1] |
FLANGE
|
ZED
, Serial Range: -C150
|
| 3. |
47822297
|
[1] |
FLANGE
|
ZED
, Start Serial: D151
|
| 4. |
84295828
|
[1] |
SHAFT
|
ZED
|
| 5. |
84263406
|
[1] |
SHAFT
|
ZED
|
| 6. |
140048
|
[24] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 7. |
385922
|
[24] |
BOLT,Hex, M16 x 2 x 45mm, Cl 8.8
|
NH
|
| 8. |
87617284
|
[5] |
SCRAPER
|
ZED
, Serial Range: -C098
|
| 8. |
47526536
|
[5] |
SCRAPER
|
ZED
, Start Serial: D099
|
| 9. |
84338245
|
[3] |
SCRAPER
|
ZED
, Serial Range: -C098
|
| 9. |
47526540
|
[3] |
SCRAPER
|
ZED
, Start Serial: D099
|
| 10. |
120069
|
[1] |
BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8
|
NH
, Serial Range: -C098
|
| 10. |
120068
|
[1] |
BOLT,Hex, M10 x 40mm, Cl 8.8
|
NH
, Start Serial: D099
|
| 11. |
86511323
|
[1] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 12. |
47366815
|
[1] |
BEAM
|
ZED
|
| 12. |
84260167
|
[1] |
BEAM
|
ZED
|
| 13. |
9706687
|
[2] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 14. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 15. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 16. |
87595224
|
[1] |
KNIFE BLADE
|
ZED
SHORT
|
| 16. |
47996447
|
[1] |
SHORT
|
TOOTH
|
| 17. |
87595220
|
[1] |
KNIFE BLADE
|
ZED
LONG
|
| 17. |
47996446
|
[1] |
LONG
|
TOOTH
|
| 18. |
47520208
|
[5] |
PLATE
|
ZED
, Start Serial: D099
|
| 19. |
47520210
|
[3] |
PLATE
|
ZED
, Start Serial: D099
|
| 22. |
300388
|
[4] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
, Start Serial: D151
|
