神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (02-026) - REWORK, GUARD ASSY, (FOR EXPORT) P/N 24100J4926F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
268 次

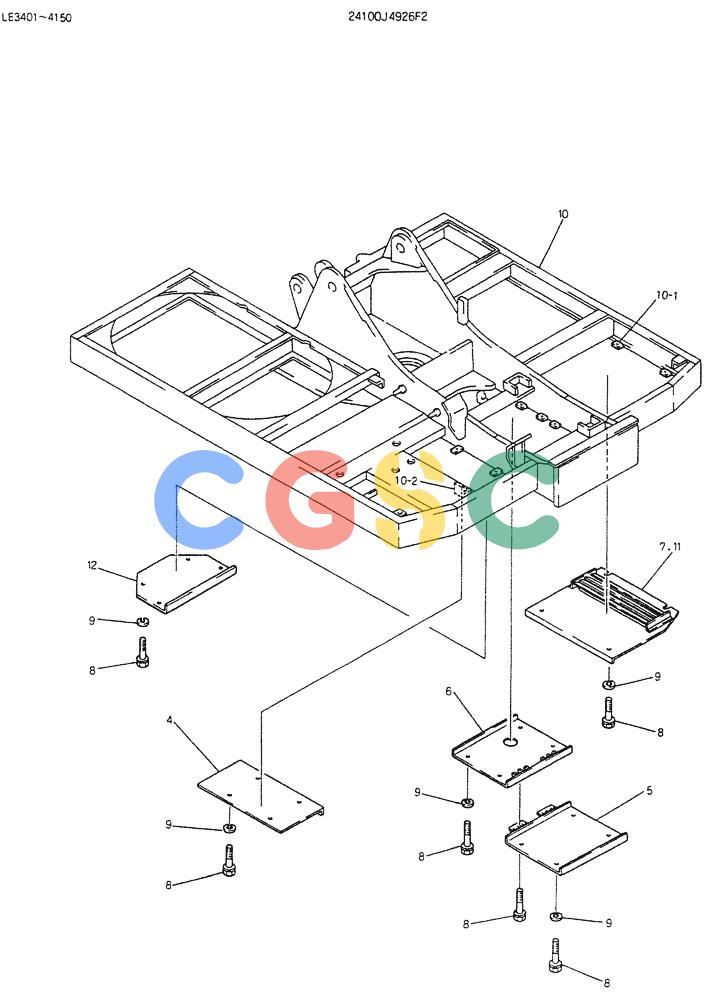

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4926F2 | [1] | GUARD ASSY | |
| 4. | 2414T1964 | [1] | COVER | |
| 5. | 2414T1966 | [1] | COVER | |
| 6. | 2414T1965 | [1] | COVER | |
| 7. | 2414P2887 | [1] | COVER, Serial Range: LE3401-LE3705 | |
| 8. | ZM11C10025 | [26] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025 |
| 9. | 2418T5373C2 | [20] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 10. | 2422J1349 | [1] | FRAME, UPP | |
| 10-1. | 2416T4130D2 | [18] | BLOCK, TAPPED | BLOCK, TAPPED |
| 10-2. | 2416T9876 | [2] | BRACKET BRACKET | BRACKET BRACKET |
| 11. | 2414T1998 | [1] | COVER, Start Serial: LE3706 | |
| 12. | 2414T1993 | [1] | COVER | COVER |
