神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (02-027) - REWORK, GUARD ASSY, (FOR EXPORT) P/N 24100J5078F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
176 次

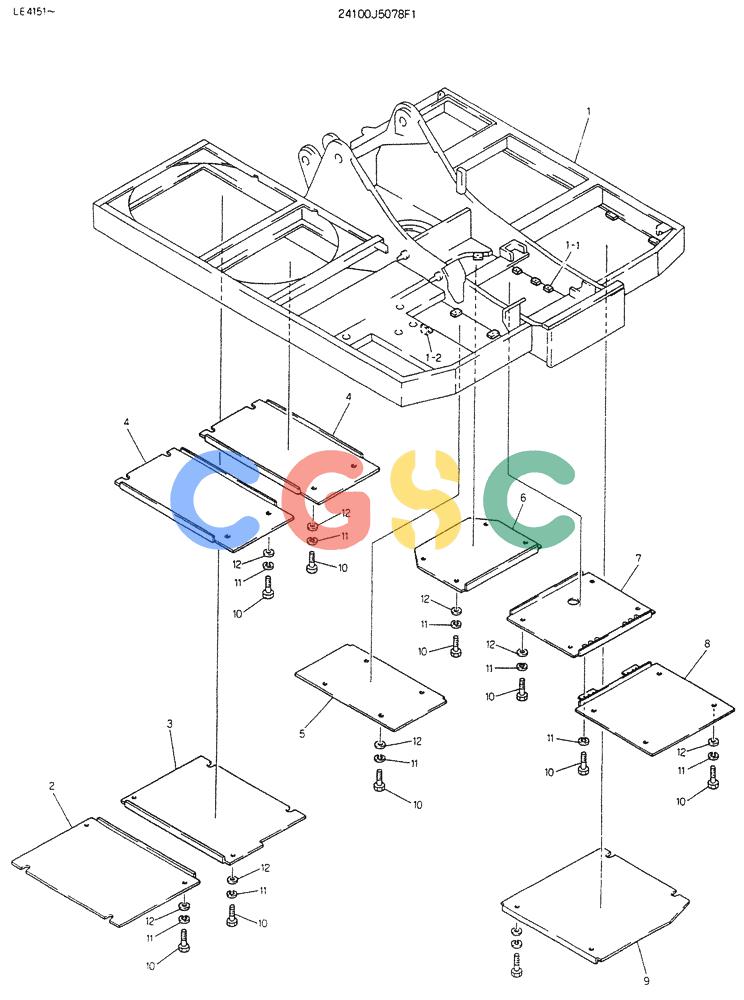

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5078F1 | [1] | GUARD ASSY | |
| 1. | 2422J134902 | [1] | FRAME, UPP | |
| 1-1. | 2416T4130D2 | [14] | BLOCK, TAPPED | BLOCK, TAPPED |
| 1-2. | 2416T9876 | [2] | BRACKET | BRACKET |
| 2. | 2414T2049 | [1] | COVER | |
| 3. | 2414T2050 | [1] | COVER | |
| 4. | 2414T2051 | [2] | COVER | |
| 5. | 2414T2044 | [1] | COVER | |
| 6. | 2414T2045 | [1] | COVER | |
| 7. | 2414T2046 | [1] | COVER | |
| 8. | 2414T2047 | [1] | COVER | |
| 9. | 2414T2048 | [1] | COVER | |
| 10. | ZS18C10025 | [38] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZW26X10000 | [38] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 12. | 2418T5373C2 | [32] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
