纽荷兰零件查询(FL14E) - CRAWLER LOADER (A2.24[003]) - FUEL INJECTION SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
821 次

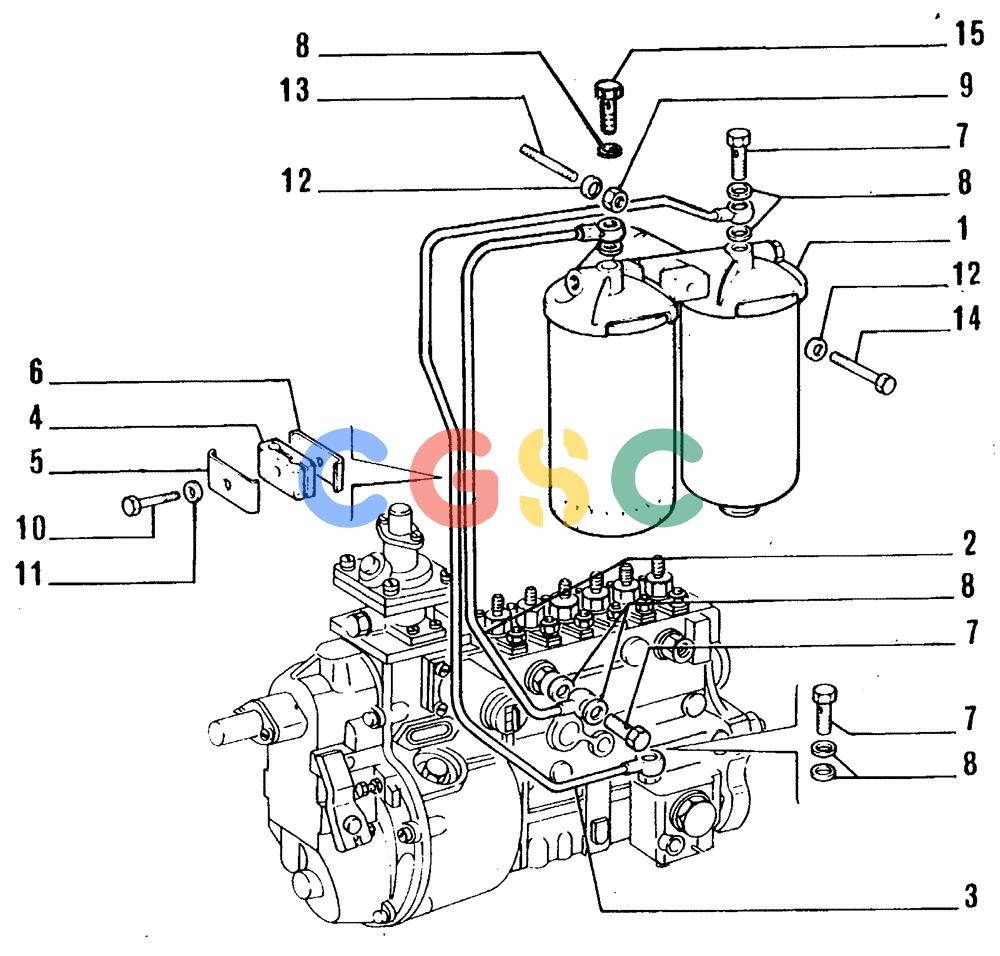

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4690738 | [1] | FUEL FILTER | MOD- ASSEMBLY SEE SGR. A2.26 |
| 2. | 4807721 | [1] | RIGID TUBE | BRETUBE |
| 3. | 4807719 | [1] | RIGID TUBE | BRETUBE |
| 4. | 4871771 | [1] | HOSE CLIP | MODFASTENING BLOCK |
| 5. | 4871773 | [1] | CLAMP | MODBRACKET - LOWER |
| 6. | 4871774 | [1] | CLAMP | MODBRACKET - UPPER |
| 7. | 10184311 | [3] | BANJO BOLT,M14 x 1.5 x 27mm | LECFITTING 14x1,5x27 Superseded by part number: 4864083 |
| 8. | 10280060 | [8] | SEAL,M14.2 x 20 x 1.5 | TTFGASKET 14,2x20 Superseded by part number: 4858608 |
| 9. | 10791021 | [2] | THIN NUT,Thin, M10 x 1.25, Cl 05 | MKT10x1,25x6 Superseded by part number: 16979731 |
| 10. | 10902621 | [1] | SCREW,Hex, M6 x 25mm, Cl 8.8 | TTFBOLT, Hex, M6 x 25, 8.8 Superseded by part number: 10902624 |
| 11. | 11197779 | [1] | BELLEVILLE WASHER,6.40mm ID x 12.00mm OD x 1.20mm, 1.63mm, Cl 8.8, ZNM | TTFLOCKWASHER 6,4x12 Superseded by part number: 17088474 |
| 12. | 11190579 | [3] | BELLEVILLE WASHER,M10.5 | MKTWASHER, BELLEVILLE, M10.5 Superseded by part number: 17090174 |
| 13. | 13546121 | [2] | STUD | MKT10x1.25x40 |
| 14. | 15972621 | [1] | BOLT,Hex, M10 x 1.25 x 140mm, Cl 8.8 | MKTSCREW 10x1,25x140 Superseded by part number: 15972630 |
| 15. | 770057 | [1] | BANJO BOLT | BREFITTING |
