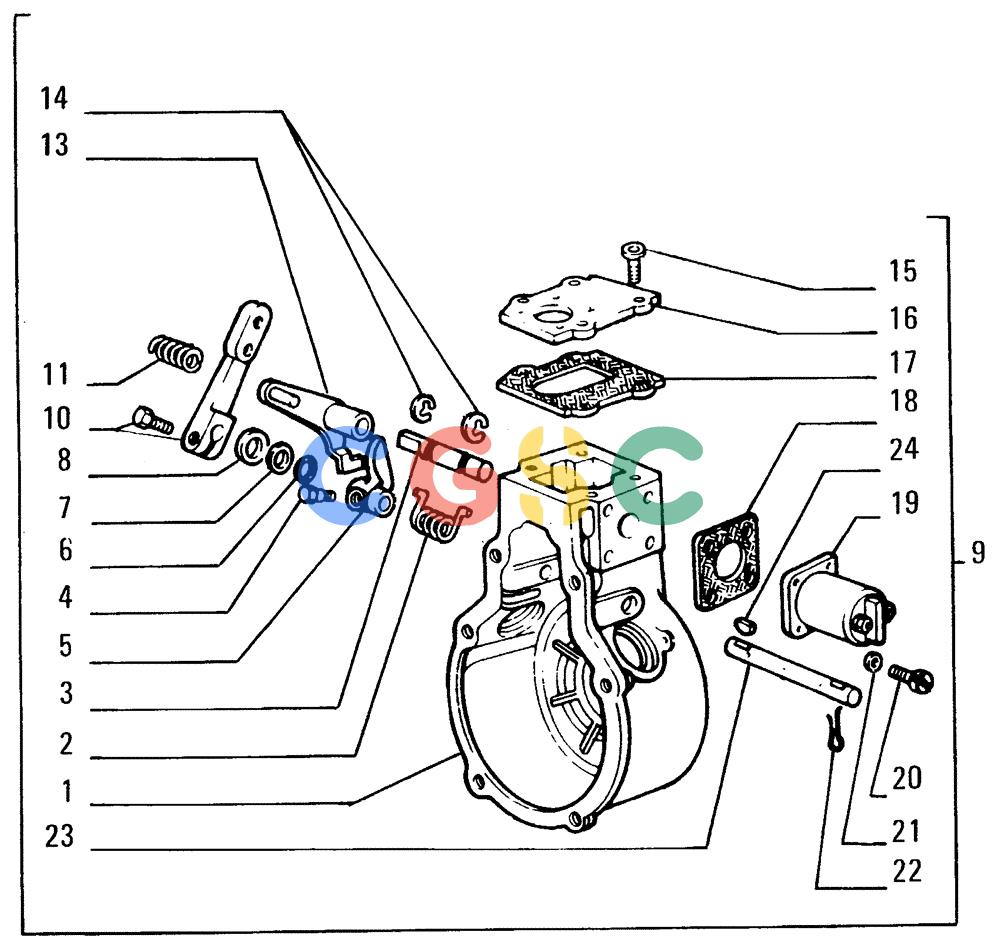

纽荷兰零件查询(FL14E) - CRAWLER LOADER (A2.28[003]) - SPEED GOVERNOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 773707 | [1] | BOX | LECCASE Superseded by part number: 79033434 |
| 2. | 773717 | [1] | PIN | BRESPRING Superseded by part number: 79033442 |
| 4. | 772480 | [1] | SCREW | MOD Superseded by part number: 79039754 |
| 5. | 773714 | [1] | LEVER | MOD Superseded by part number: 79033426 |
| 6. | 772482 | [2] | RING | MOD0-RING Superseded by part number: 79039757 |
| 7. | 14499401 | [2] | WASHER,8.4mm ID x 14mm OD x 1.6mm Thk | IMOM8 x 14 x 1.6 Superseded by part number: 17094814 |
| 8. | 772484 | [1] | WASHER | MOD- THICKNESS 0,30 Superseded by part number: 1288461 |
| 9. | 773700 | [1] | CASE | BRE- ASSEMBLY Superseded by part number: 79033414 |
| 10. | 772486 | [1] | LEVER | MOD Superseded by part number: 9982762 |
| 11. | 79033441 | [1] | SPRING | MOD |
| 13. | 773718 | [1] | LEVER | BRE Superseded by part number: 79033444 |
| 14. | 11087876 | [2] | CIRCLIP,M7 | BASRING 6x12 Superseded by part number: 87016950 |
| 15. | 773701 | [4] | SCREW | MOD Superseded by part number: 14433121 |
| 16. | 773689 | [1] | | MOD Superseded by part number: 2979439, 2979439, 79033436 |
| 17. | 773702 | [1] | SEAL | MODSEAL Superseded by part number: 8199860 |
| 18. | 772671 | [1] | SEAL | MODSEAL Superseded by part number: |
| 19. | 773719 | [1] | ELECTROMAGNET | ZEDSOLENOID Superseded by part number: 79033446 |
| 20. | 10389421 | [4] | SCREW | MKT5x0,8x12 Superseded by part number: 80043982 |
| 21. | 12035471 | [4] | LOCK WASHER | PLOLOCKWASHER 5,1x1 |
| 22. | 10734201 | [2] | COTTER PIN,M2 x 12 | TTF1,7x18,5 Superseded by part number: |
| 23. | 772477 | [1] | CHANNEL | MODSHAFT Superseded by part number: 86516924, 86516924, 9967273 |
| 24. | 1136607 | [1] | KEY | JES |
