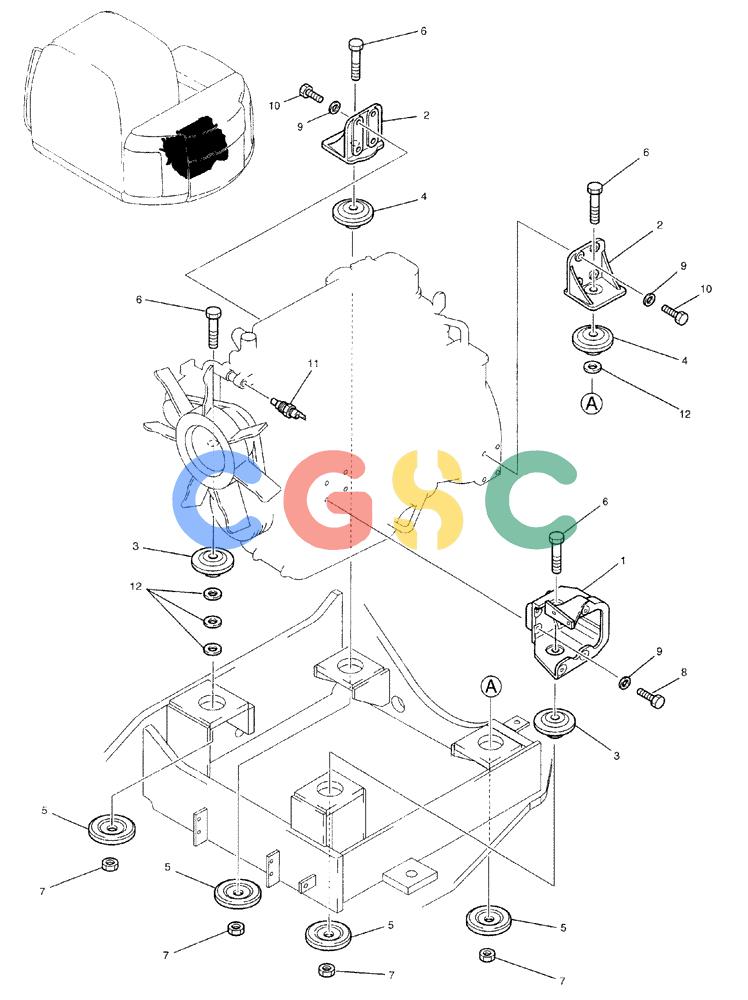

纽荷兰零件查询(E70) - MIDI CRAWLER EXCAVATOR (NA) (1/06-) (005) - ENGINE INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT02P01001P1 | [1] | BRACKET | KOB |
| 2. | LE02P01010P1 | [2] | BRACKET | KOB |
| 3. | YT02P01002P1 | [2] | RUBBER SLEEVE | KOB Superseded by part number: YT02P01002P2 |
| 4. | YW02P01002P1 | [2] | RUBBER | KOB Superseded by part number: YW02P01002P2 |
| 5. | YW02P01004P1 | [4] | ENGINE MOUNT | KOB |
| 6. | ZS18C18090 | [4] | CAPSCREW,Hex, M18 x 90mm | KOBSCREW |
| 7. | ZN18C18015 | [4] | NUT | KOB |
| 8. | ZS18F10045 | [4] | SCREW | KOB Superseded by part number: 72954887 |
| 9. | ZW16H10000 | [12] | WASHER | KOB |
| 10. | ZS18C10035 | [8] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 11. | YT52S00001P1 | [1] | SENSOR,50°C to 120°C | KOBTHERMO |
| 12. | YW02P01005D1 | [4] | SHIM | KOBSHIM |
