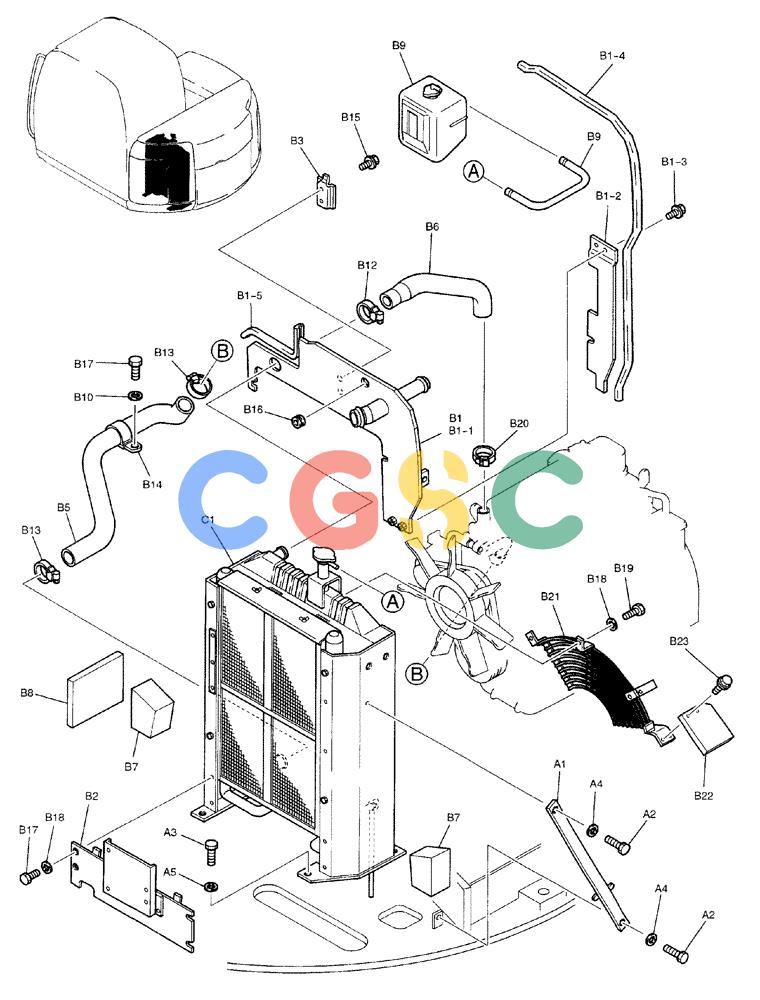

纽荷兰零件查询(E70) - MIDI CRAWLER EXCAVATOR (NA) (1/06-) (006) - RADIATOR INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
880 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YT05P01034P1 | [1] | STAY | KOBSTAY |
| A2. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB |
| A3. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOB |
| A4. | ZW16H10000 | [2] | WASHER | KOB |
| A5. | ZW16H12000 | [4] | WASHER | KOB |
| B1. | YT05P01049F1 | [1] | BRACKET | KOBIncl. B1-1 - B1-5 |
| B1-1. | YT05P01054P1 | [1] | BRACKET | KOB |
| B1-2. | YT05P01055P1 | [1] | PLATE | KOB |
| B1-3. | ZM61C06016 | [2] | BOLT | KOB |
| B1-4. | PY01P01019DL | [1] | WEATHERSTRIP | KOB |
| B1-5. | LE21C01070DR | [1] | WEATHERSTRIP | KOB |
| B2. | YT05P01056P1 | [1] | BRACKET | KOB |
| B3. | 2416Z519 | [1] | U-BRACKET | KOBBRACKET |
| B5. | YT05P01020P1 | [1] | HOSE | KOBHOSE, RADIATOR |
| B6. | YT05P01045P1 | [1] | HOSE | KOBRADIATOR |
| B7. | YT05P01022P1 | [2] | FOAM INSULATION | KOB |
| B8. | YT05P01007P1 | [1] | FOAM INSULATION | KOB |
| B9. | YT05P01041F1 | [1] | TANK | KOBTANK ASSY, WATER SUB |
| B10. | YR21C01161P1 | [1] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOB |
| B12. | ZC16X03900 | [1] | CLIP | KOB |
| B13. | ZC16X04500 | [2] | CLIP | KOB |
| B14. | 2432R225D15 | [1] | CLIP | KOB Superseded by part number: ZC46X50014 |
| B16. | 2420R372D12 | [1] | GROMMET | KOB |
| B17. | ZS18C08020 | [5] | SCREW,Hex, M8 x 20mm | KOB |
| B18. | ZW16X08000 | [7] | WASHER | KOB |
| B19. | ZS18C08016 | [3] | SCREW,Hex, M8 x 16mm | KOB |
| B20. | ZC16X05000 | [1] | CLIP | KOB |
| B21. | YT05P01057P1 | [1] | GUARD | KOB |
| B22. | YT05P01043P1 | [1] | PLATE | KOB |
| B23. | ZM22C08020 | [2] | BOLT | KOB |
| C1. | YT05P00009F1 | [1] | RADIATOR | KOBSee Figure 007, YT02-04001 - 04282 Superseded by part number: YT05P00009F3 |
| . . | YT05P00009F3 | [1] | RADIATOR | KOBSee Figure 007, YT02-04283- |
