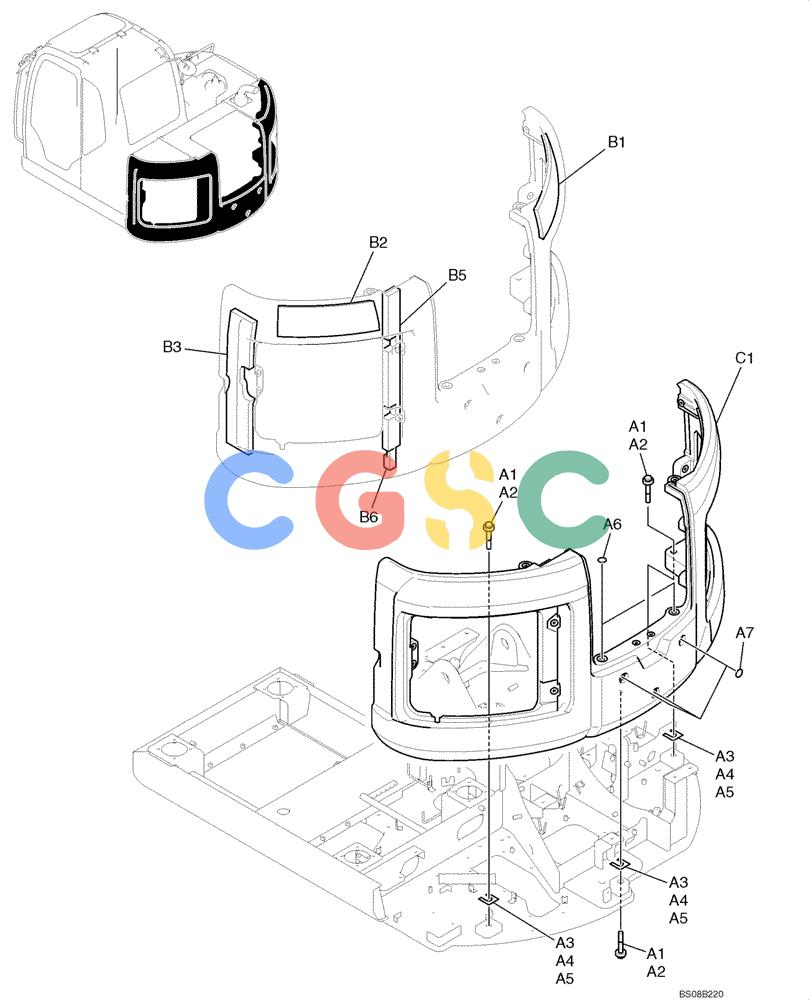

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-03-00[00]) - COUNTERWEIGHT INSTALLATION (YT60C00021F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | ZS18C20130 | [3] | CAPSCREW,Hex, M20 x 130mm | KOBSCREW M20x2.50x130mm |
| A2. | HY26Y21050G4 | [3] | WASHER | KOB |
| A3. | YT60C01006D1 | [3] | SHIM,3.2mm Thk | KOB(3.2) |
| A4. | YT60C01006D2 | [3] | SHIM,20.mm Thk | KOB(2.0) |
| A5. | YT60C01006D3 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| A6. | LE60C01028P1 | [2] | PLATE | KOB |
| A7. | YT60C01007P1 | [3] | PLUG | KOB |
| B1. | YT60C01029P1 | [1] | INSULATION | KOBInsulation Superseded by part number: YT60C01029P2 |
| B2. | YT60C01030P1 | [1] | INSULATION | KOBInsulation Superseded by part number: YT60C01030P2 |
| B3. | YT60C01031P1 | [1] | INSULATION | KOBInsulation Superseded by part number: YT60C01031P2 |
| B5. | YT60C01037P1 | [1] | INSULATION | KOBInsulation |
| B6. | YT60C01038P1 | [1] | INSULATION | KOBInsulation Superseded by part number: YA60C01005P1 |
| C1. | YT60C00016P1 | [1] | COUNTERWEIGHT | KOB(840kg - 0.92Tons) Superseded by part number: YT60C00026P1 |
